Turning Tool with Screw clamp | Turning Tool holder with relief angle 7° or 5°

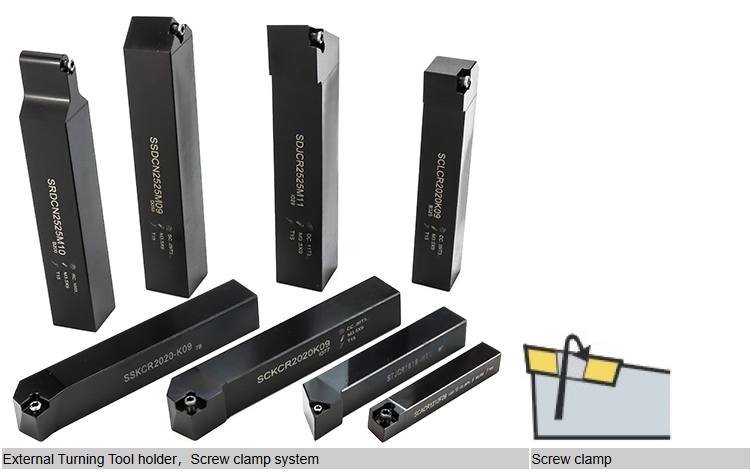

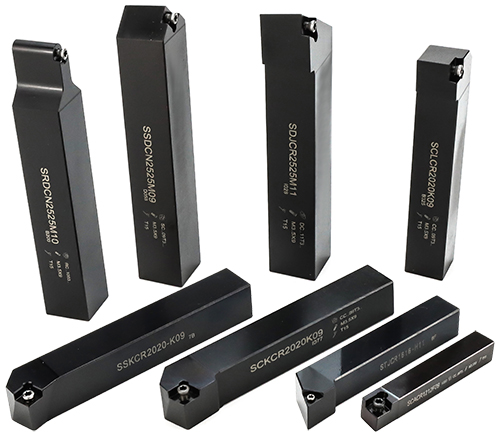

Turning Tool with Screw clamp system (SECOND)

Screw clamp turning tools which have simple structure with relief angle α7° or α5°, are suitable for various light cutting processes or fine turning , for processing workpieces with a smaller cutting allowance and higher requirements for smoothness.

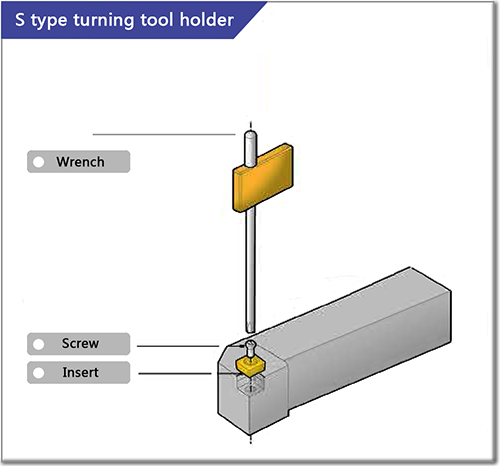

The composition of the Turning Tool with Screw clamp system

Our tool holders are processed after quenching, with minimal deformation and stable dimensions.
The consistency of the center height of the turning tools is not exceeding 0-0.16mm.
The consistency of the dimensions at both ends of the tool holder is not exceeding 0.02mm.

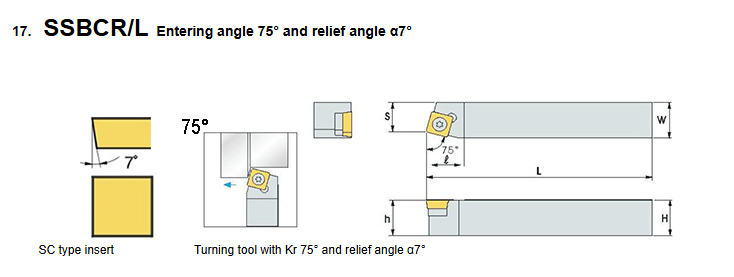

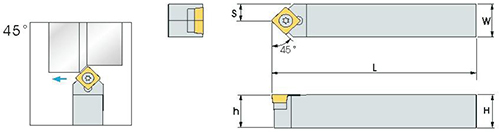

SSBCR/L tool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
SSBCR/L1212F09	12	12	80	18	12	9.5	SC09T3	M3.5X9	T15
SSBCR/L1616H09	16	16	100	18	16	13	SC09T3	M3.5X9	T15
SSBCR/L2020K09	20	20	125	18	20	17	SC09T3	M3.5X9	T15
SSBCR/L2020K12	20	20	125	22	20	17	SC1204	M5X12	T20
SSBCR/L2525M12	25	25	150	22	25	22	SC1204	M5X12	T20

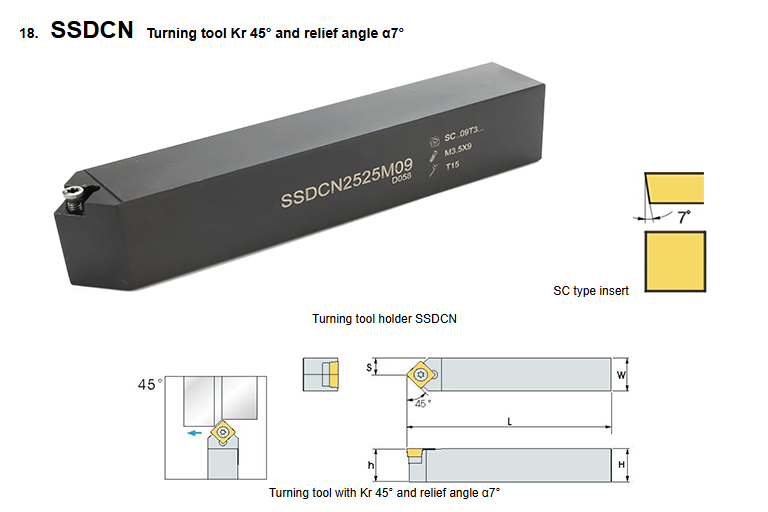

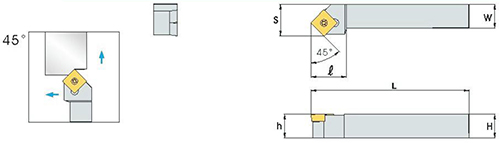

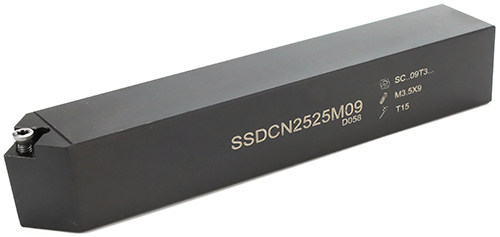

SSDCN tool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
SSDCN1212F09	12	12	80	16	12	6	SC09T3	M3.5X9	T15
SSDCN1616H09	16	16	100	16	16	8	SC09T3	M3.5X9	T15
SSDCN2020K09	20	20	125	16	20	10	SC09T3	M3.5X9	T15
SSDCN2525M09	25	25	150	16	25	12.5	SC09T3	M3.5X9	T15

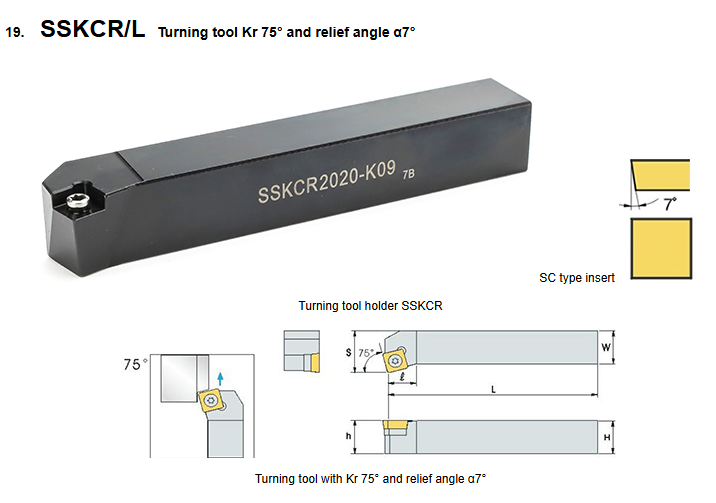

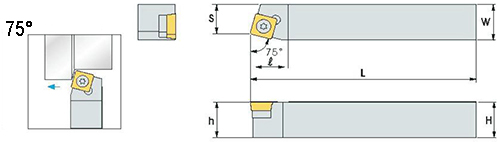

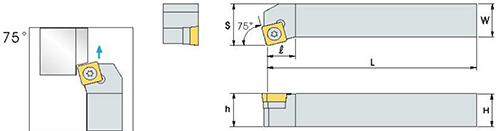

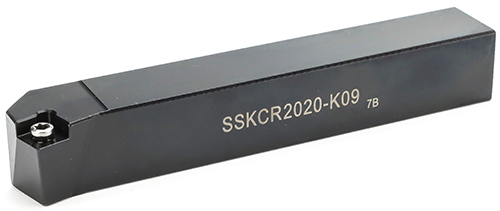

SSKCR/L tool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
SSKCR/L1212F09	12	12	80	16	12	16	SC09T3	M3.5X9	T15
SSKCR/L1616H09	16	16	100	16	16	20	SC09T3	M3.5X9	T15
SSKCR/L2020K09	20	20	125	18	20	25	SC09T3	M3.5X9	T15
SSKCR/L2525M09	25	25	150	25	25	32	SC09T3	M3.5X9	T15
SSKCR/L2525M12	25	25	150	25	25	32	SC1204	M5X12	T20

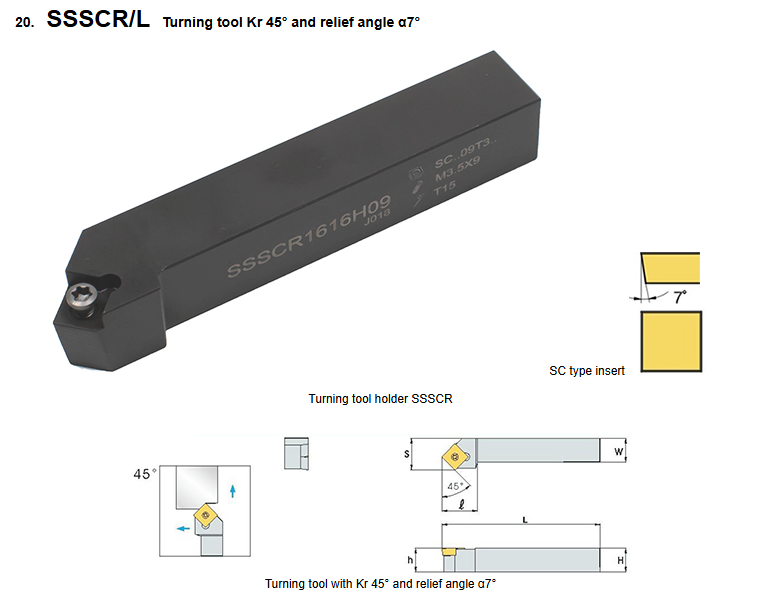

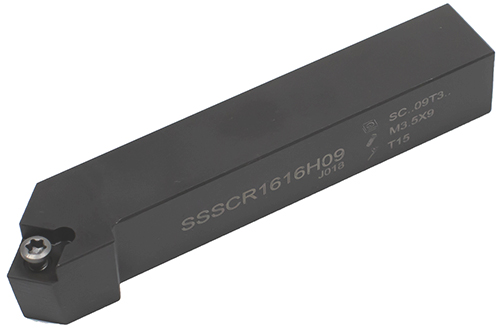

SSSCR/L tool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
SSSCR/L1212F09	12	12	80	16	12	16	SC09T3	M3.5X9	T15
SSSCR/L1616H09	16	16	100	16	16	20	SC09T3	M3.5X9	T15
SSSCR/L2020K09	20	20	125	18	20	25	SC09T3	M3.5X9	T15
SSSCR/L2525M09	25	25	150	25	25	32	SC09T3	M3.5X9	T15
SSSCR/L2525M12	25	25	150	25	25	32	SC1204	M5X12	T20

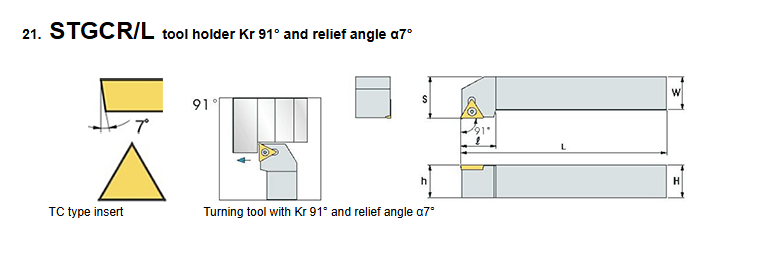

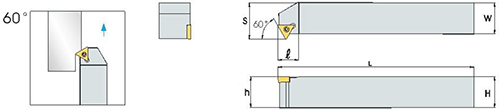

STGCR/L tool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
STGCR/L1616H11	16	16	100	14	16	20	TC1102	M2.5X8	T8
STGCR/L1616H16	16	16	100	14	16	20	TC16T3	M3.5X9	T15
STGCR/L2020K16	20	20	125	20	20	25	TC16T3	M3.5X9	T15
STGCR/L2525M16	25	25	150	20	25	32	TC16T3	M3.5X9	T15

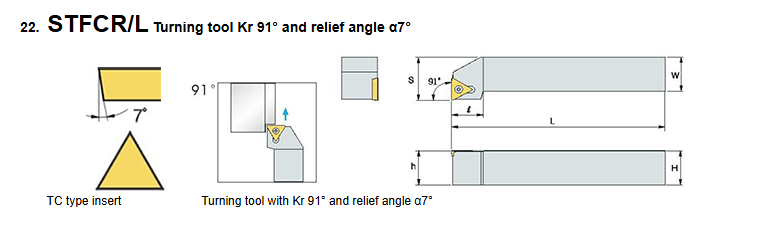

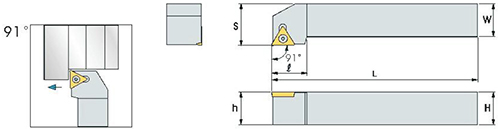

STFCR/L tool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
STFCR/L1212F09	12	12	80	14	12	16	TC0902	M2.2X6	T8
STFCR/L1212F11	12	12	80	14	12	16	TC1102	M2.5X8	T8
STFCR/L1616H11	16	16	100	14	16	20	TC1102	M2.5X8	T8
STFCR/L1616H16	16	16	100	22	16	20	TC16T3	M3.5X9	T15
STFCR/L2020K16	20	20	125	22	20	25	TC16T3	M3.5X9	T15
STFCR/L2525M16	25	25	150	22	25	32	TC16T3	M3.5X9	T15
STFCR/L3232P16	32	32	170	22	32	40	TC16T3	M3.5X9	T15

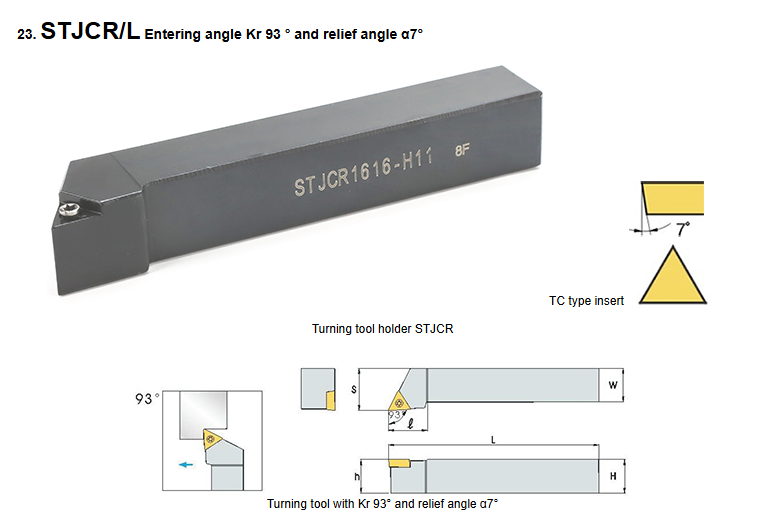

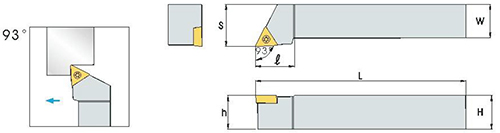

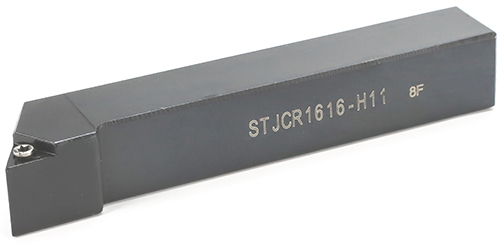

STJCR/L tool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
STJCR/L1212F11	12	12	80	18	12	16	TC1102	M2.5X8	T8
STJCR/L1616H11	16	16	100	18	16	20	TC1102	M2.5X8	T8

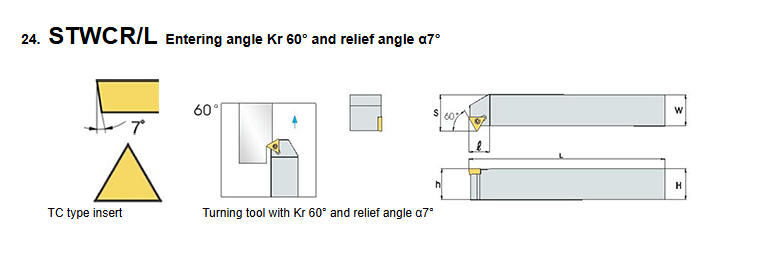

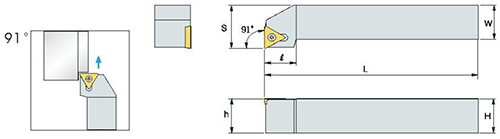

STWR/L tool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
STWCR/L1616H11	16	16	100	8	16	19.5	TC1102	M2.5X8	T8
STWCR/L2020K11	20	20	125	8	20	23.5	TC1102	M2.5X8	T8
STWCR/L2525M11	25	25	150	8	25	28.5	TC1102	M2.5X8	T8
STWCR/L1616H16	16	16	100	12	16	20	TC16T3	M3.5X9	T15
STWCR/L2020K16	20	20	125	12	20	26	TC16T3	M3.5X9	T15
STWCR/L2525M16	25	25	150	12	25	31	TC16T3	M3.5X9	T15
STWCR/L3232P16	32	32	170	12	32	38	TC16T3	M3.5X9	T15

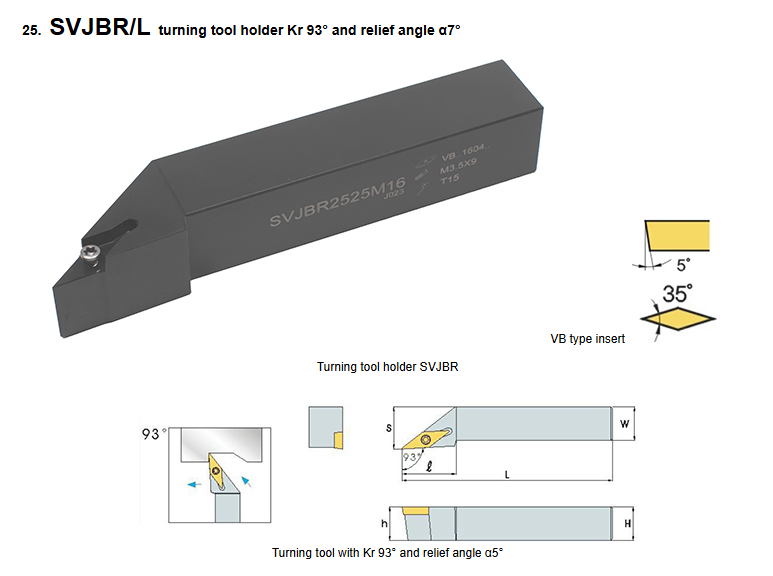

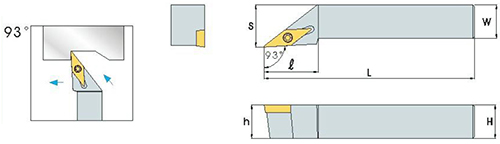

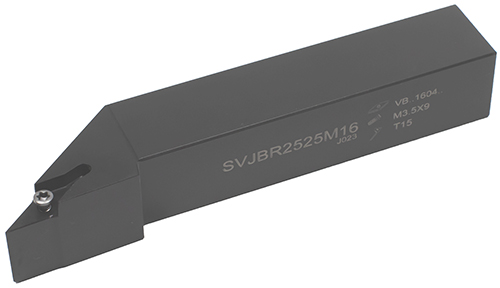

SVJBR/L tool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
SVJBR/L1212F11	12	12	80	22	12	16	VB1103	M2.5X8	T8
SVJBR/L1616H11	16	16	100	25	16	20	VB1103	M2.5X8	T8
SVJBR/L2020K11	20	20	125	32	20	25	VB1103	M2.5X8	T8
SVJBR/L2525M11	25	25	150	38	25	32	VB1103	M2.5X8	T8
SVJBR/L1616H16	16	16	100	30	16	20	VB1604	M3.5X9	T15
SVJBR/L2020K16	20	20	125	32	20	25	VB1604	M3.5X9	T15
SVJBR/L2525M16	25	25	150	40	25	32	VB1604	M3.5X9	T15
SVJBR/L3232P16	32	32	170	45	32	40	VB1604	M3.5X9	T15

SVJCR/L tool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
SVJCR/L1212F11	12	12	80	22	12	16	VC1103	M2.5X8	T8
SVJCR/L1616H11	16	16	100	25	16	20	VC1103	M2.5X8	T8
SVJCR/L2020K11	20	20	125	32	20	25	VC1103	M2.5X8	T8
SVJCR/L2525M11	25	25	150	38	25	32	VC1103	M2.5X8	T8
SVJCR/L1616H16	16	16	100	30	16	20	VC1604	M3.5X9	T15
SVJCR/L2020K16	20	20	125	32	20	25	VC1604	M3.5X9	T15
SVJCR/L2525M16	25	25	150	40	25	32	VC1604	M3.5X9	T15
SVJCR/L3232P16	32	32	170	45	32	40	VC1604	M3.5X9	T15

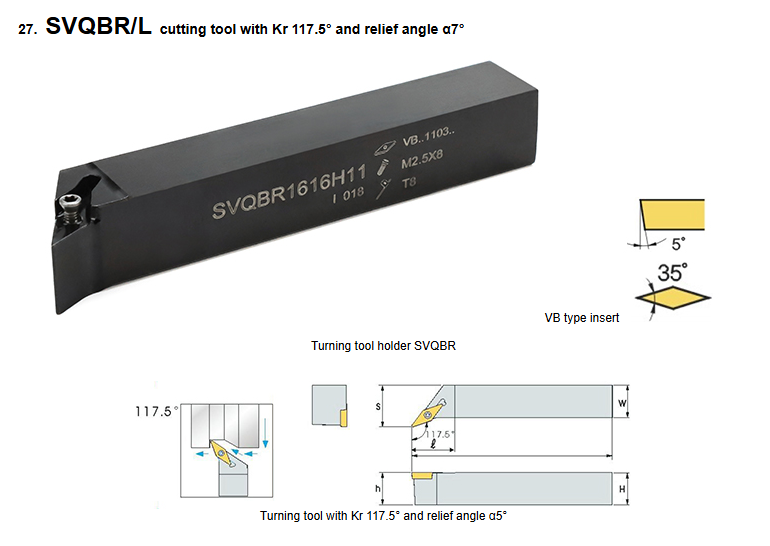

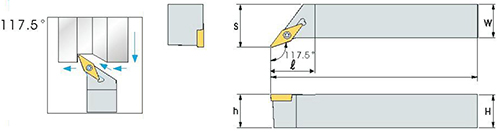

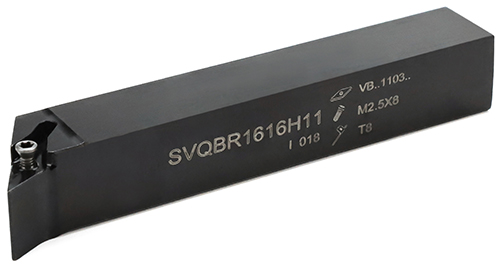

SVQBR/L tool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
SVQBR/L1616H11	16	16	100	35	16	20	VB1103	M2.5X8	T8
SVQBR/L2020K11	20	20	125	35	20	25	VB1103	M2.5X8	T8
SVQBR/L2525M11	25	25	150	35	25	32	VB1103	M2.5X8	T8
SVQBR/L1616H16	16	16	100	35	16	20	VB1604	M3.5X9	T15
SVQBR/L2020K16	20	20	125	35	20	25	VB1604	M3.5X9	T15
SVQBR/L2525M16	25	25	150	35	25	32	VB1604	M3.5X9	T15
SVQBR/L3232P16	32	32	170	35	32	40	VB1604	M3.5X9	T15

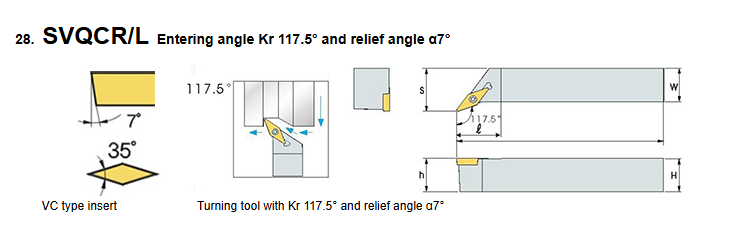

SVQCR/L tool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
SVQCR/L1616H11	16	16	100	35	16	20	VC1103	M2.5X8	T8
SVQCR/L2020K11	20	20	125	35	20	25	VC1103	M2.5X8	T8
SVQCR/L2525M11	25	25	150	35	25	32	VC1103	M2.5X8	T8
SVQCR/L1616H16	16	16	100	35	16	20	VC1604	M3.5X9	T15
SVQCR/L2020K16	20	20	125	35	20	25	VC1604	M3.5X9	T15
SVQCR/L2525M16	25	25	150	35	25	32	VC1604	M3.5X9	T15
SVQCR/L3232P16	32	32	170	35	32	40	VC1604	M3.5X9	T15

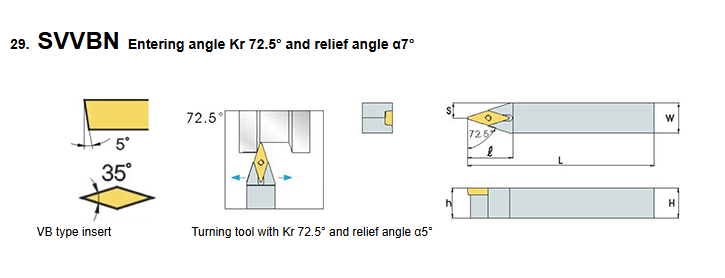

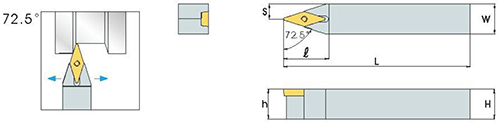

SVVBNtool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
SVVBN1212F11	12	12	80	24	12	6	VB1103	M2.5X8	T8
SVVBN1616H11	16	16	100	24	16	8	VB1103	M2.5X8	T8
SVVBN2020K11	20	20	125	24	20	10	VB1103	M2.5X8	T8
SVVBN2525M11	25	25	150	24	25	12.5	VB1103	M2.5X8	T8
SVVBN1616H16	16	16	100	34	16	8	VB1604	M3.5X9	T15
SVVBN2020K16	20	20	125	34	20	10	VB1604	M3.5X9	T15
SVVBN2525M16	25	25	150	34	25	12.5	VB1604	M3.5X9	T15
SVVBN3232P16	32	32	170	34	32	16	VB1604	M3.5X9	T15

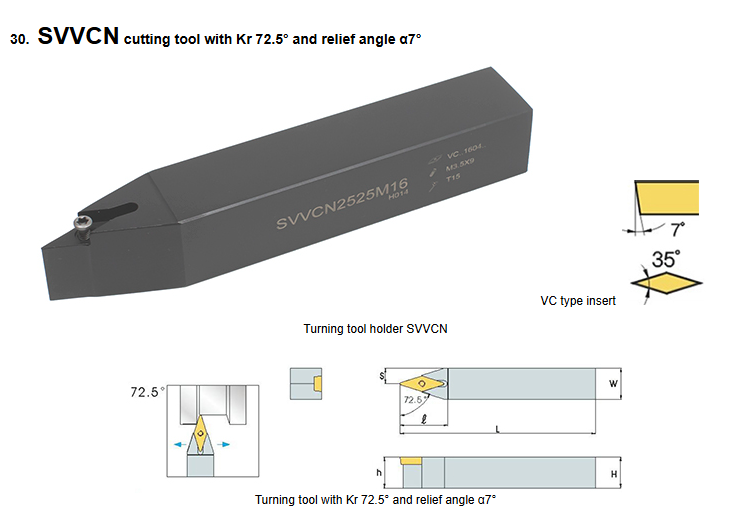

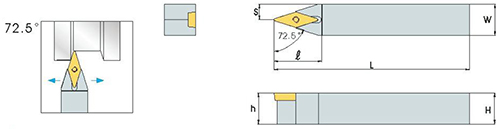

SVVCN tool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
SVVCN1212F11	12	12	80	24	12	6	VC1103	M2.5X8	T8
SVVCN1616H11	16	16	100	24	16	8	VC1103	M2.5X8	T8
SVVCN2020K11	20	20	125	24	20	10	VC1103	M2.5X8	T8
SVVCN2525M11	25	25	150	24	25	12.5	VC1103	M2.5X8	T8

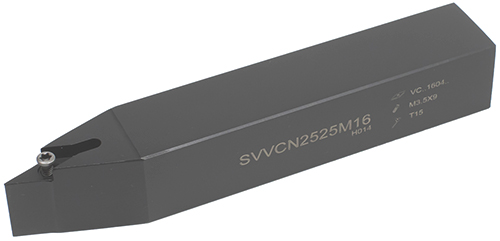

SVVCN1616H16	16	16	100	34	16	8	VC1604	M3.5X9	T15
SVVCN2020K16	20	20	125	34	20	10	VC1604	M3.5X9	T15
SVVCN2525M16	25	25	150	34	25	12.5	VC1604	M3.5X9	T15
SVVCN3232P16	32	32	170	34	32	16	VC1604	M3.5X9	T15

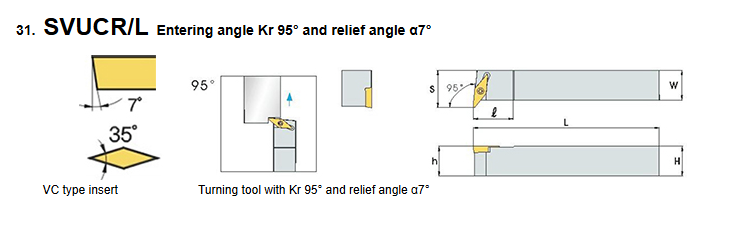

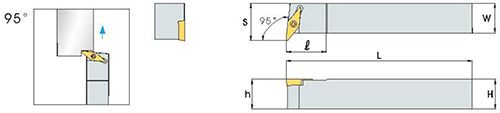

SVUCR/L tool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
SVUCR/L1212H11	12	12	100	14	12	20	VC1103	M2.5X8	T8
SVUCR/L1616H11	16	16	100	14	16	20	VC1103	M2.5X8	T8
SVUCR/L2020K16	20	20	125	18	20	30	VC1604	M3.5X9	T15
SVUCR/L2525M16	25	25	150	18	25	35	VC1604	M3.5X9	T15
