Turning Tool with Screw clamp | Turning Tool holder with relief angle α7°

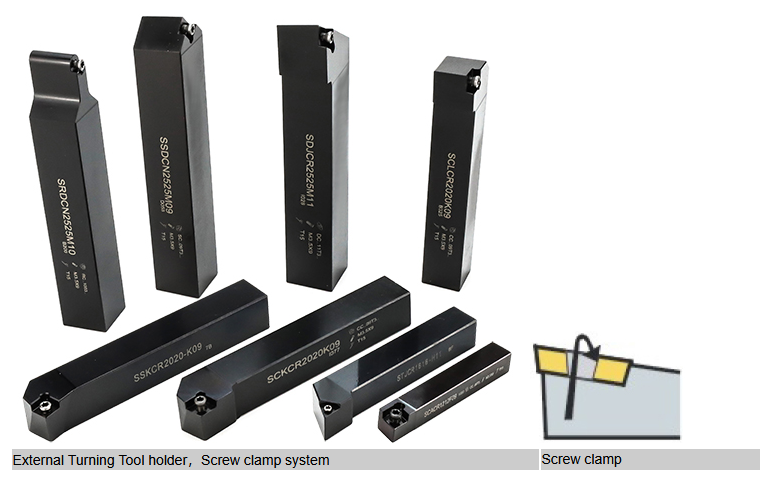

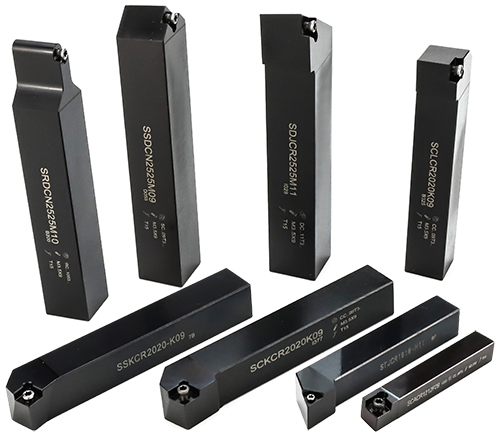

Turning Tool with Screw clamp system (FIRST)

Screw clamp turning tools which have simple structure with relief angle α7° or α5°, are suitable for various light cutting processes or fine turning ，for processing workpieces with a smaller cutting allowance and higher requirements for smoothness.

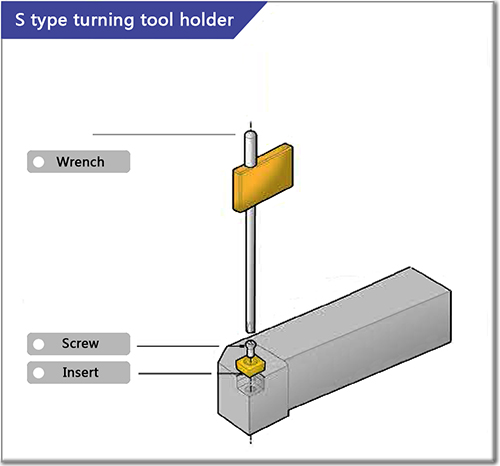

The composition of the Turning Tool with Multi clamp system

Our tool holders are processed after quenching, with minimal deformation and stable dimensions.
The consistency of the center height of the turning tools is not exceeding 0-0.16mm.
The consistency of the dimensions at both ends of the tool holder is not exceeding 0.02mm.

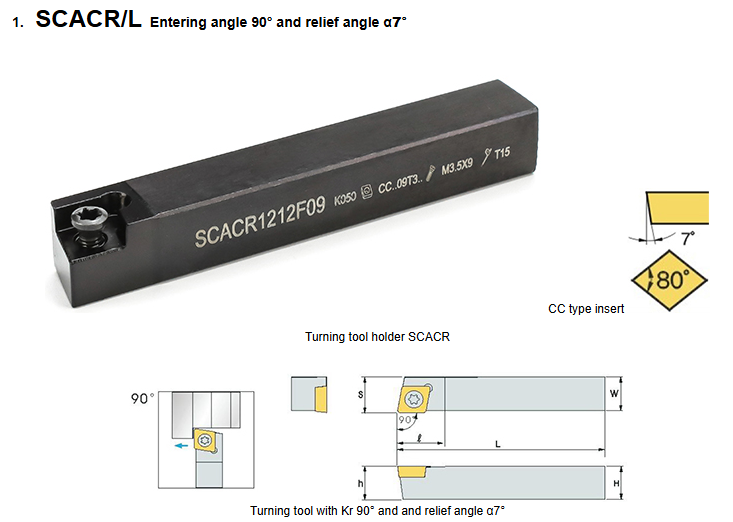

SCANR/L tool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
SCACR/L0808F06	8	8	80	10	8	8	Плас	винт	винКлюч
SCACR/L1010H06	10	10	80	10	10	10	CC0602	M2.5X6	T8
SCACR/L1212H06	12	12	80	13	12	12
SCACR/L1212H09	12	12	100	13	12	12	CC09T3	M3.5X9	T15

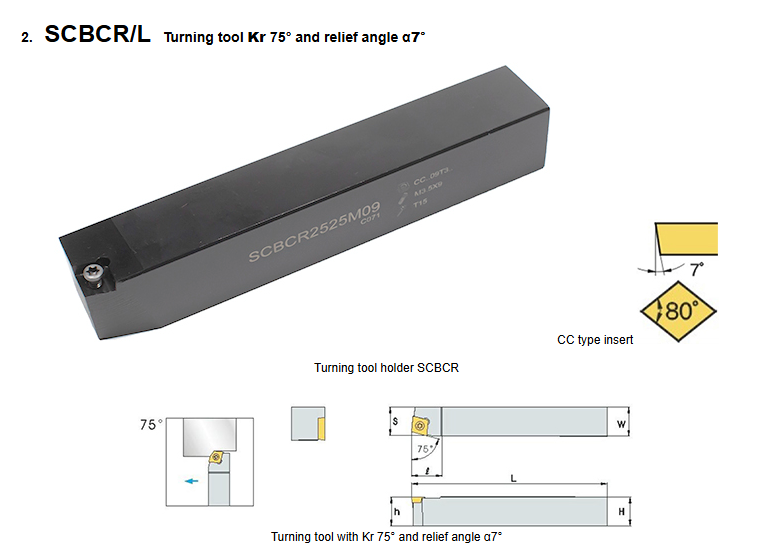

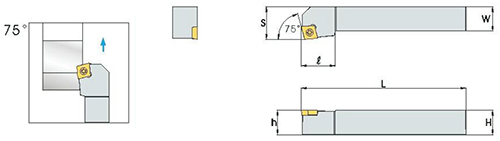

SCBCR/L tool holder parameters (mm)

Designation Тип	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
SCBCR/L1212F06	12	12	80	13	12	10	CC0602	M2.5X6	T8
SCBCR/L1616H06	16	16	100	13	16	14	Плас	винт	Ключ
SCBCR/L1212F09	12	12	80	13	12	10	CC09T3	M3.5X9	T15
SCBCR/L1616H09	16	16	100	20	16	14
SCBCR/L2020K09	20	20	125	20	20	17

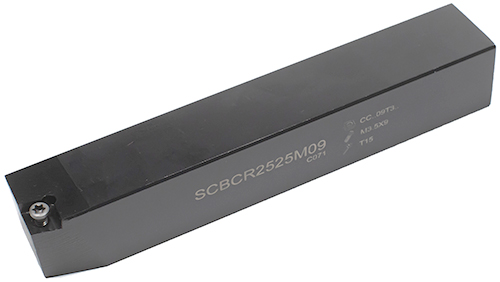

SCBCR/L2525M09	25	25	150	20	25	22
SCBCR/L2020K12	20	20	125	20	20	17	CC1204	M5X12	T20
SCBCR/L2525M12	25	25	150	20	25	22

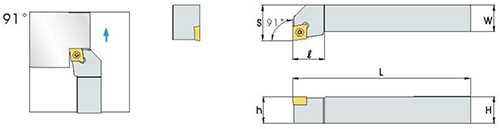

SCFCR/L tool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
SCFCR/L1010F06	10	10	80	14	10	12	CC0602	M2.5X6	T8
SCFCR/L1212F06	12	12	80	14	12	16	CC0602	M2.5X6	T8
SCFCR/L1616H09	16	16	100	16	16	20	CC09T3	M3.5X9	T15
SCFCR/L2020K09	20	20	125	16	20	25	CC09T3	M3.5X9	T15
SCFCR/L2525M09	25	25	150	16	25	32	CC09T3	M3.5X9	T15

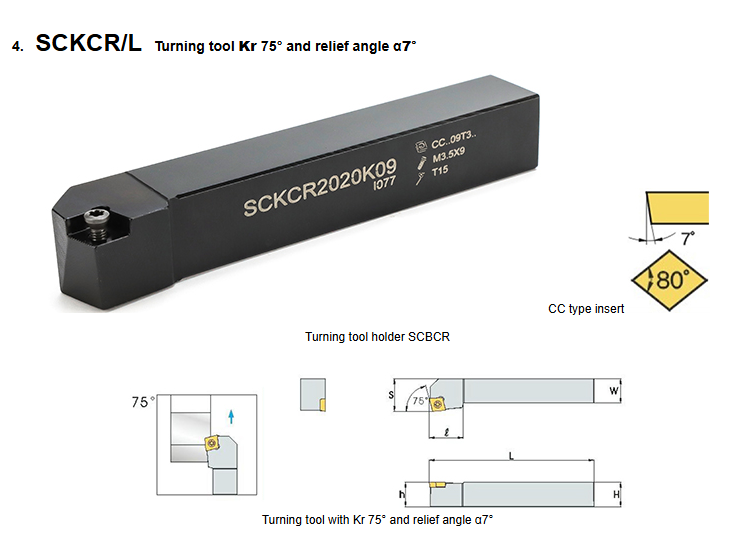

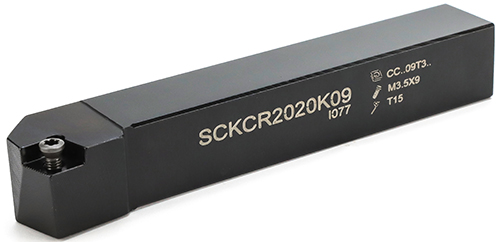

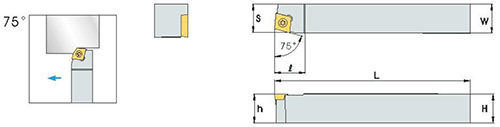

SCKCR/L tool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
SCKCR/L2020K09	20	20	125	23	20	25	CC09T3	M3.5X9	T15
SCKCR/L2525M09	25	25	150	23	25	32	CC09T3	M3.5X9	T15
SCKCR/L2020K12	20	20	125	28	20	25	CC1204	M5X12	T20
SCKCR/L2525M12	25	25	150	28	25	32	CC1204	M5X12	T20

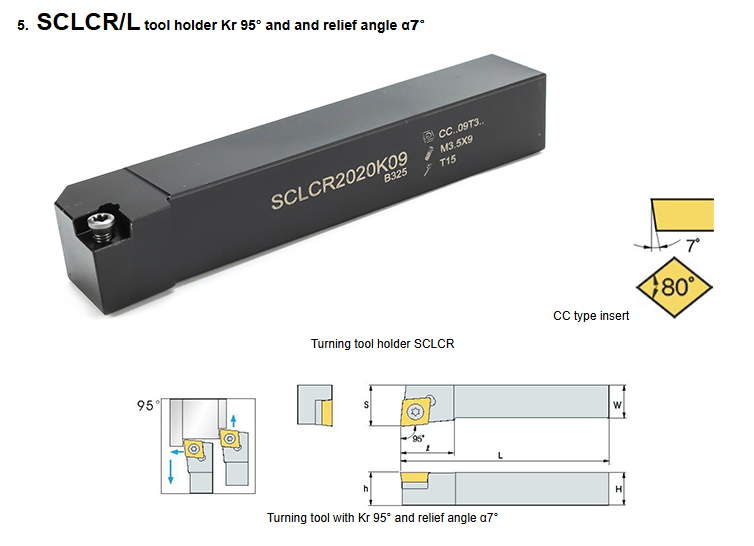

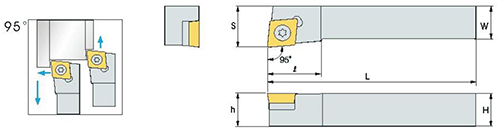

SCLCR/L tool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
SCLCR/L0808F06	8	8	80	12	8	10	CC0602	M2.5X6	T8
SCLCR/L1010F06	10	10	80	12	10	12	CC0602	M2.5X6	T8
SCLCR/L1212F09	12	12	80	16	12	16	CC09T3	M3.5X9	T15
SCLCR/L1616H09	16	16	100	16	16	20	CC09T3	M3.5X9	T15

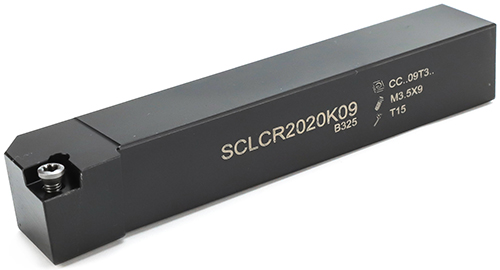

SCLCR/L2020K09	20	20	125	16	20	25	CC09T3	M3.5X9	T15
SCLCR/L2525M09	25	25	150	16	25	32	CC09T3	M3.5X9	T15
SCLCR/L2020K12	20	20	125	20	20	25	CC1204	M5X12	T20
SCLCR/L2525M12	25	25	150	20	25	32	CC1204	M5X12	T20
SCLCR/L3232P12	32	32	170	20	32	40	CC1204	M5X12	T20

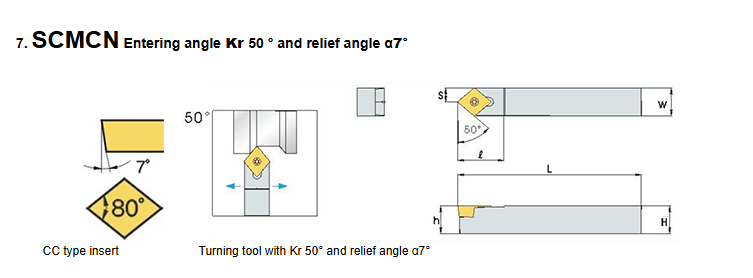

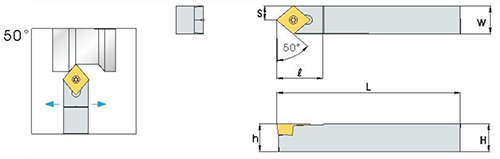

SCMCN tool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
SCMCN1010F06-100	10	10	80	13	10	5	CC**0602	M2.5X6	T8
SCMCN1212F09-100	12	12	80	18	12	6	CC09T3	M3.5X9	T15
SCMCN1616H09-100	16	16	100	18	16	8	CC09T3	M3.5X9	T15
SCMCN2020K09-100	20	20	125	18	20	10	CC09T3	M3.5X9	T15
SCMCN2525M09-100	25	25	150	18	25	12.5	CC09T3	M3.5X9	T15
SCMCN2020K12-100	20	20	125	23	20	10	CC1204	M5X12	T20
SCMCN2525M12-100	25	25	150	23	25	12.5	CC1204	M5X12	T20

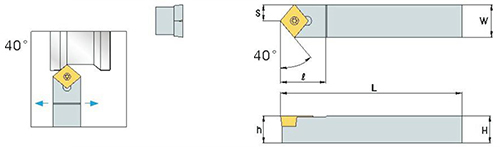

SCMCN tool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
SCMCN1010F06	10	10	80	10	10	5	CC**0602	M2.5X6	T8
SCMCN1212F09	12	12	80	15	12	6	CC09T3	M3.5X9	T15
SCMCN1616H09	16	16	100	15	16	8	CC09T3	M3.5X9	T15
SCMCN2020K09	20	20	125	15	20	10	CC09T3	M3.5X9	T15
SCMCN2525M09	25	25	150	15	25	12.5	CC09T3	M3.5X9	T15
SCMCN2020K12	20	20	125	20	20	10	CC1204	M5X12	T20
SCMCN2525M12	25	25	150	20	25	12.5	CC1204	M5X12	T20

SCSCR/L tool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
SCSCR/L1212F06	12	12	80	18	12	16	CC0602	M2.5X6	T8
SCSCR/L1616H06	16	16	100	18	16	20	CC0602	M2.5X6	T8

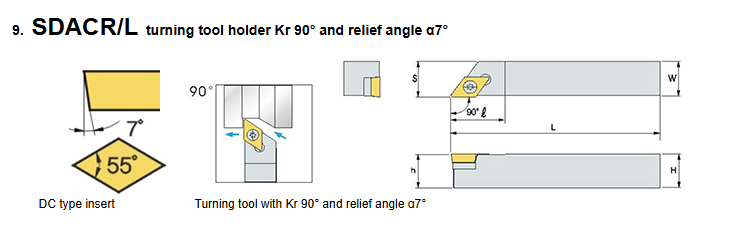

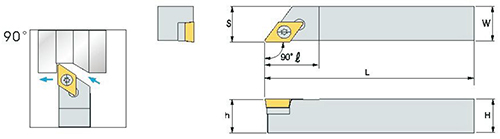

SDACR/L tool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
SDACR/L0808F07	8	8	80	15	8	8	DC0702	M2.5X8	T8
SDACR/L1010F07	10	10	80	15	10	10	DC0702	M2.5X8	T8
SDACR/L1212F07	12	12	80	15	12	12	DC0702	M2.5X8	T8
SDACR/L1212H11	12	12	100	22	12	12	DC11T3	M3.5X9	T15
SDACR/L1616H11	16	16	100	22	16	16	DC11T3	M3.5X9	T15
SDACR/L2020K11	20	20	125	22	20	20	DC11T3	M3.5X9	T15
SDACR/L2525M11	25	25	150	22	25	25	DC11T3	M3.5X9	T15

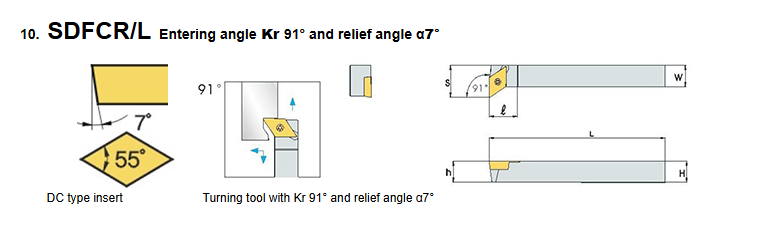

SDFCR/L tool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
SDFCR/L1212H07	12	12	100	8	12	16	DC0702	M2.5X8	T8
SDFCR/L1212H11	12	12	100	14	12	16	DC11T3	M3.5X9	T15
SDFCR/L1616H11	16	16	100	14	16	20	DC11T3	M3.5X9	T15

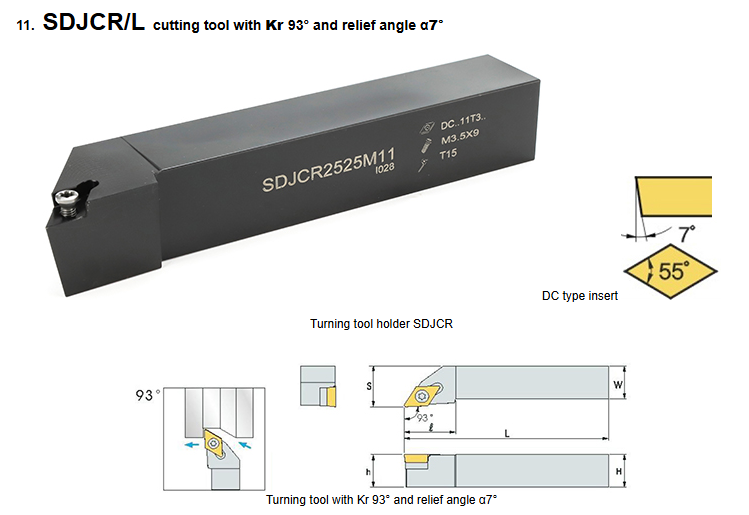

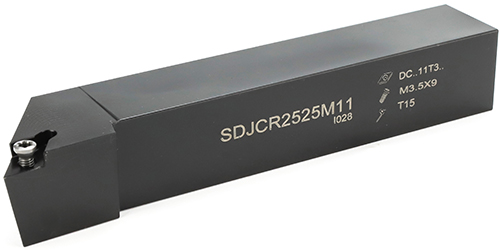

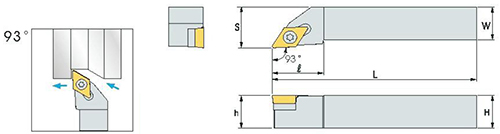

SDJCR/L tool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
SDJCR/L1010F07	10	10	80	14	10	12	DC0702	M2.5X8	T8
SDJCR/L1212F07	12	12	80	14	12	16	DC0702	M2.5X8	T8
SDJCR/L1616H07	16	16	100	14	16	20	DC0702	M2.5X8	T8
SDJCR/L1212F11	12	12	80	20	12	16	DC11T3	M3.5X9	T15
SDJCR/L1616H11	16	16	100	20	16	20	DC11T3	M3.5X9	T15
SDJCR/L2020K11	20	20	125	20	20	25	DC11T3	M3.5X9	T15
SDJCR/L2525M11	25	25	150	22	25	32	DC11T3	M3.5X9	T15
SDJCR/L3232P11	32	32	170	23	32	40	DC11T3	M3.5X9	T15
SDJCR/L4040R11	40	40	200	25	40	50	DC11T3	M3.5X9	T15

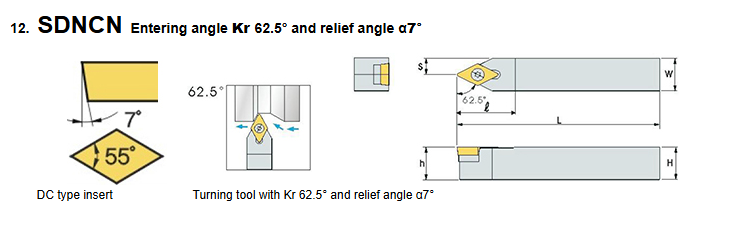

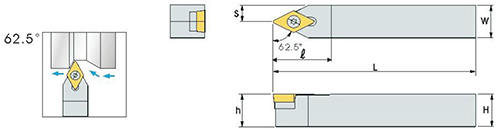

SDNCN tool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
SDNCN0808F07	8	8	80	14	8	4	DC0702	M2.5X6	T8
SDNCN1010F07	10	10	80	14	10	5	DC0702	M2.5X6	T8
SDNCN1212F07	12	12	80	14	12	6	DC0702	M2.5X6	T8
SDNCN1212H11	12	12	100	21	12	6	DC11T3	M3.5X9	T15
SDNCN1616H11	16	16	100	21	16	8	DC11T3	M3.5X9	T15
SDNCN2020K11	20	20	125	21	20	10	DC11T3	M3.5X9	T15
SDNCN2525M11	25	25	150	21	25	12.5	DC11T3	M3.5X9	T15

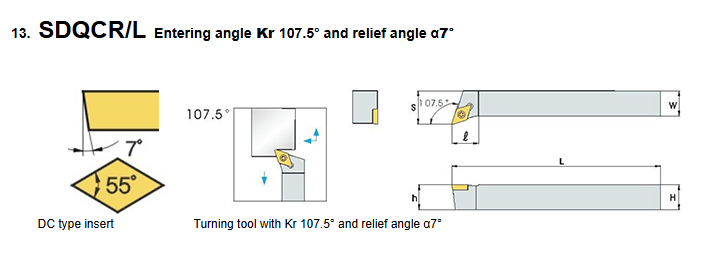

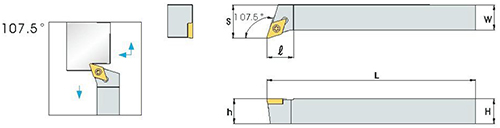

SDQCR/L tool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
SDNCN0808F07	8	8	80	14	8	4	DC0702	M2.5X6	T8
SDNCN1010F07	10	10	80	14	10	5	DC0702	M2.5X6	T8
SDNCN1212F07	12	12	80	14	12	6	DC0702	M2.5X6	T8
SDNCN1212H11	12	12	100	21	12	6	DC11T3	M3.5X9	T15
SDNCN1616H11	16	16	100	21	16	8	DC11T3	M3.5X9	T15
SDNCN2020K11	20	20	125	21	20	10	DC11T3	M3.5X9	T15
SDNCN2525M11	25	25	150	21	25	12.5	DC11T3	M3.5X9	T15

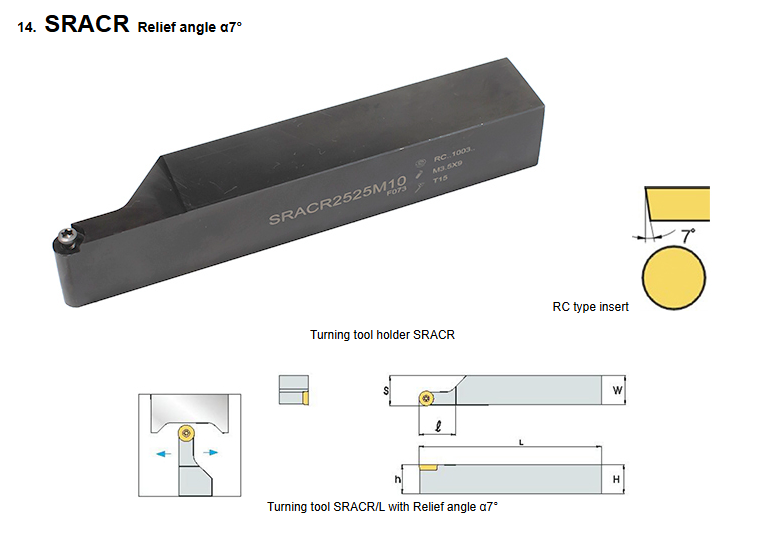

SRACR/L tool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
SRACR/L1616H08	16	16	100	16	16	16.5	RC0803	M3X8	T8
SRACR/L2020K08	20	20	125	16	20	20.5	RC0803	M3X8	T8
SRACR/L2525M08	25	25	150	16	25	25.5	RC0803	M3X8	T8
SRACR/L2020K10	20	20	125	20.3	20	20.5	RC1003	M3.5X9	T15
SRACR/L2525M10	25	25	150	20.3	25	25.5	RC1003	M3.5X9	T15

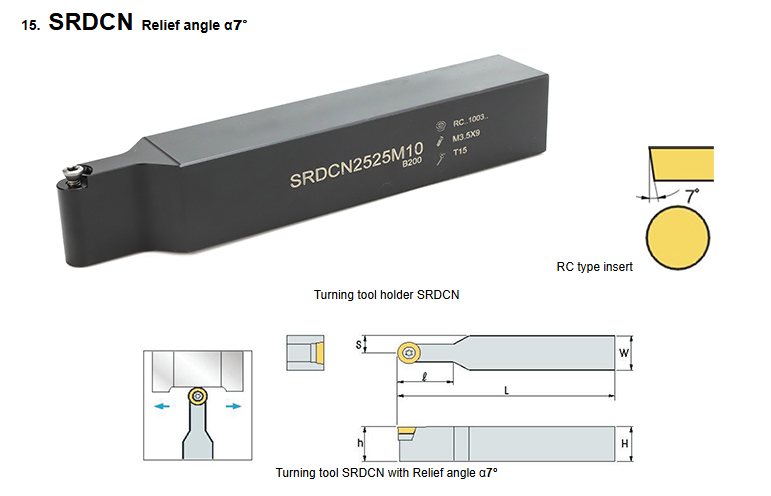

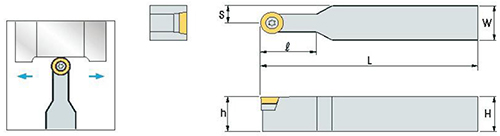

SRDCN tool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
SRDCN1616H08	16	16	100	16	16	8	RC0803	M3X8	T8
SRDCN2020K08	20	20	125	16	20	10	RC0803	M3X8	T8
SRDCN2525M08	25	25	150	16	25	12.5	RC0803	M3X8	T8
SRDCN1616H10	16	16	100	20.3	16	8	RC1003	M3.5X9	T15
SRDCN2020K10	20	20	125	20.3	20	10	RC1003	M3.5X9	T15
SRDCN2525M10	25	25	150	20.3	25	12.5	RC1003	M3.5X9	T15

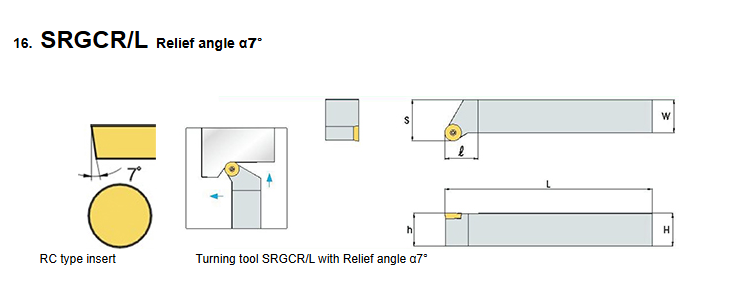

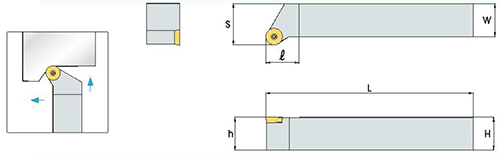

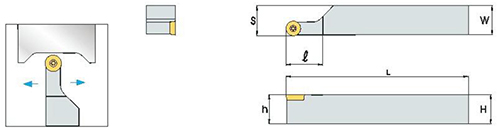

SRGCR/L tool holder parameters (mm)

Designation	H	W	L	ℓ	h	s	Inserts	Screw	Wrench
SRGCR/L1616H08	16	16	100	20	16	20	RC0803	M3X8	T8
SRGCR/L1616H10	16	16	100	20	16	20	RC1003	M3.5X9	T15
SRGCR/L2020K10	20	20	125	20	20	25	RC1003	M3.5X9	T15
SRGCR/L2525M10	25	25	150	20	25	32	RC1003	M3.5X9	T15
