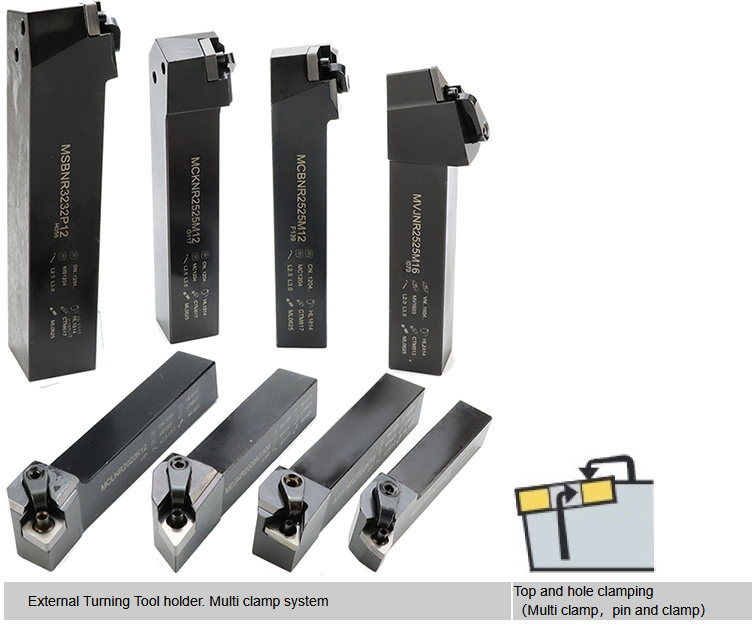

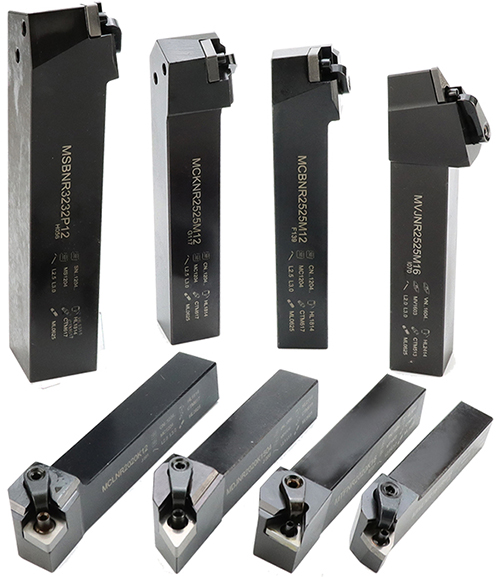

Turning Tool with Multi clamp system (SECOND)

Turning tools with multiple clamping, including a clamping plate and a internal pin，securing the insert from the top and a hole, are widely used for various processing.

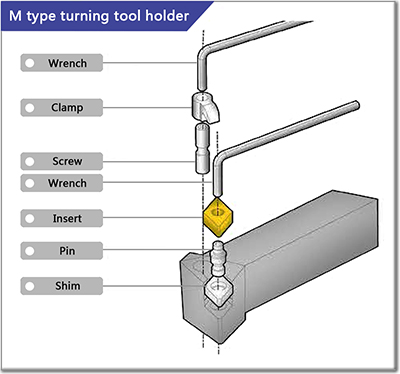

The composition of the Turning Tool with Multi clamp system

Feature

  • Our tool holders are processed after quenching, with minimal deformation and stable dimensions.
  • The consistency of the center height of the turning tools is not exceeding 0-0.16mm.
  • The consistency of the dimensions at both ends of the tool holder is not exceeding 0.02mm.

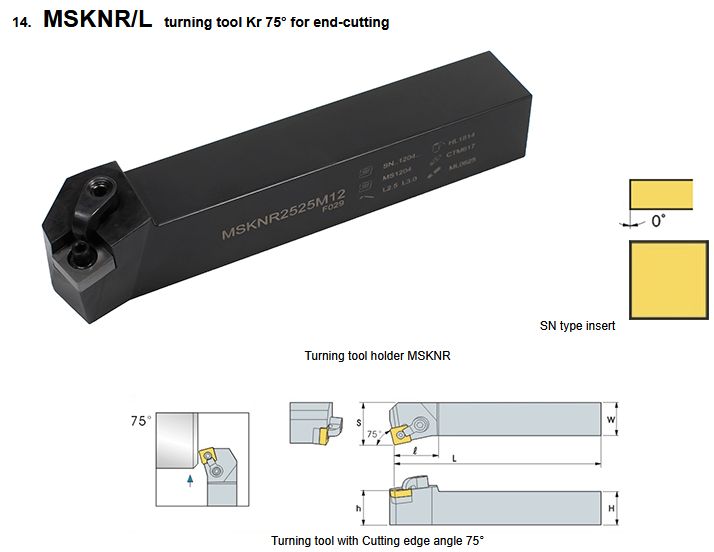

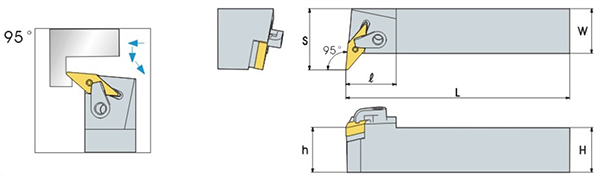

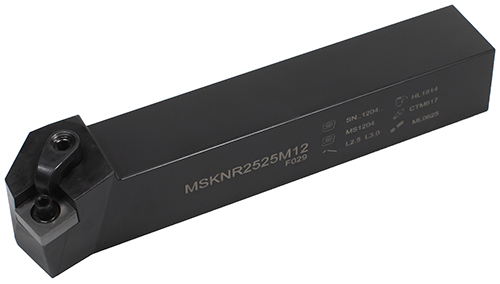

MSKNR/L tool holder parameters (mm)

Designation size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
Тип  Плас Прок Штыр  Зажи винт Ключ
MSKNR/L2020K12 20 20 125 29 20 25 SN**1204** MS1204 CTM617 HL1814 ML0625 L2.5, L3.0
MSKNR/L2525M12 25 25 150 29 25 32
MSKNR/L2525M15 25 25 150 33 25 32 SN**1506** MS1504 CTM822 HL2217 ML0830 L3.0, L4.0
MSKNR/L3232P15 32 32 170 35 32 40
MSKNR/L3232P19 32 32 170 35 32 40 SN**1906** MS1904 CTM1022 HL2217 ML0830 L4.0
MSKNR/L4040R19 40 40 200 38 40 50
Designation H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
MSKNR/L2020K122020125292025SN**1204**MS1204CTM617HL1814ML0625L2.5 L3.0
MSKNR/L2525M122525150292532SN**1204**MS1204CTM617HL1814ML0625L2.5 L3.0
MSKNR/L2525M152525150332532SN**1506**MS1504CTM822HL2217ML0830L3.0 L4.0
MSKNR/L3232P153232170353240SN**1506**MS1504CTM822HL2217ML0830L3.0 L4.0
MSKNR/L3232P193232170353240SN**1906**MS1904CTM1022HL2217ML0830L4.0
MSKNR/L4040R194040200384050SN**1906**MS1904CTM1022HL2217ML0830L4.0

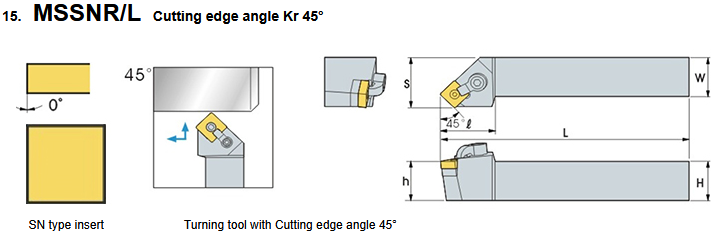

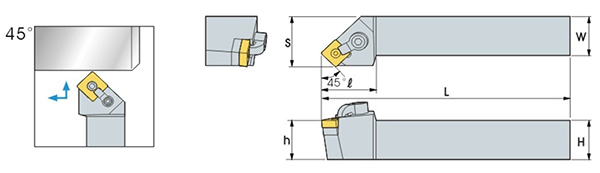

MSSNR/L tool holder parameters (mm)

Designation size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
Тип  Плас Прок Штыр  Зажи винт Ключ
MSSNR/L2020K12 20 20 125 33 20 25 SN**1204** MS1204 CTM617 HL1814 ML0625 L2.5, L3.0
MSSNR/L2525M12 25 25 150 35 25 32
MSSNR/L3232P12 32 32 170 35 32 40
MSSNR/L2525M15 25 25 150 41 25 32 SN**1506** MS1504 CTM822 HL2217 ML0830 L3.0, L4.0
MSSNR/L3232P15 32 32 170 42 32 40
MSSNR/L3232P19 32 32 170 45 32 40 SN**1906** MS1904 CTM1022 HL2217 ML0830 L4.0
MSSNR/L4040R19 40 40 200 45 40 50
Designation H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
MSSNR/L2020K122020125332025SN**1204**MS1204CTM617HL1814ML0625L2.5 L3.0
MSSNR/L2525M122525150352532SN**1204**MS1204CTM617HL1814ML0625L2.5 L3.0
MSSNR/L3232P123232170353240SN**1204**MS1204CTM617HL1814ML0625L2.5 L3.0
MSSNR/L2525M152525150412532SN**1506**MS1504CTM822HL2217ML0830L3.0 L4.0
MSSNR/L3232P153232170423240SN**1506**MS1504CTM822HL2217ML0830L3.0 L4.0
MSSNR/L3232P193232170453240SN**1906**MS1904CTM1022HL2217ML0830L4.0
MSSNR/L4040R194040200454050SN**1906**MS1904CTM1022HL2217ML0830L4.0

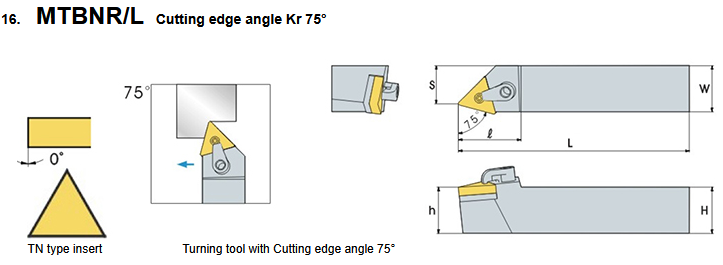

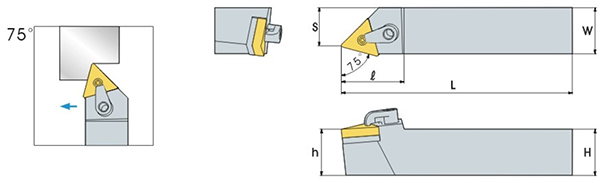

MTBNR/L tool holder parameters (mm)

Designation size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
Тип  Плас Прок Штыр  Зажи винт Ключ
MTBNR/L2020K16 20 20 125 34 20 15.5 TN**1604** MT1603 CTM513 HL1814 ML0625 L2.0, L3.0
MTBNR/L2525M16 25 25 150 34 25 20.5
Designation H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
MTBNR/L2020K162020125342015.5TN**1604**MT1603CTM513HL1814ML0625L2.0 L3.0
MTBNR/L2525M162525150342520.5TN**1604**MT1603CTM513HL1814ML0625L2.0 L3.0

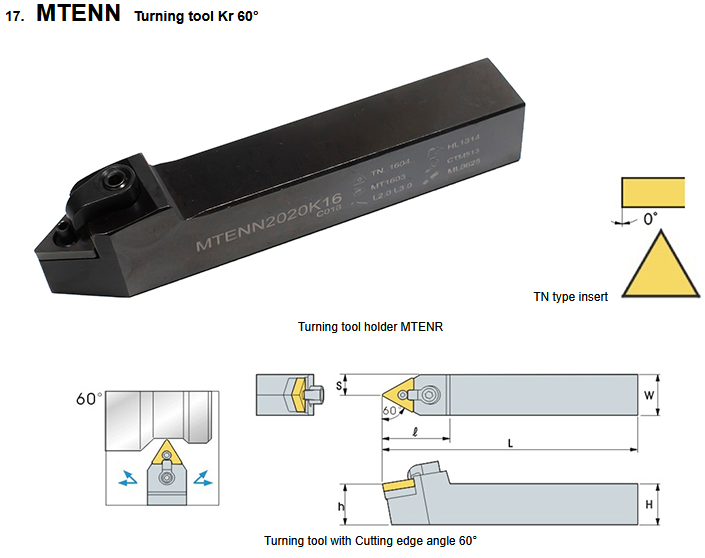

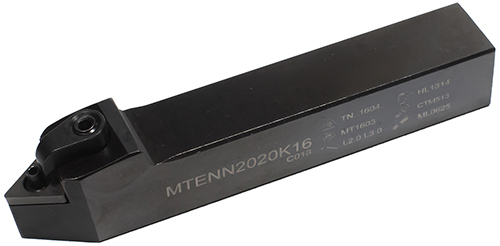

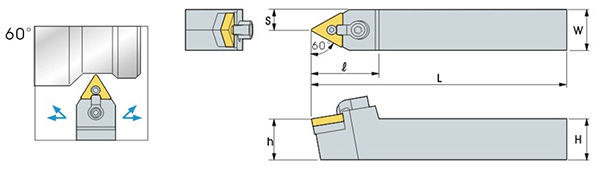

MTENN tool holder parameters (mm)

Designation size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
Тип  Плас Прок Штыр  Зажи винт Ключ
MTENN1616H16 16 16 100 34 16 8 TN**1604** MT1603 CTM513 HL1814 ML0625 L2.0, L3.0
MTENN2020K16 20 20 125 34 20 10
MTENN2525M16 25 25 150 34 25 12.5
MTENN3232P16 32 32 170 34 32 16
MTENN2525M22 25 25 150 38 25 12.5 TN**2204** MT2204 CTM617 HL1917 ML0830 L2.5, L4.0
MTENN3232P22 32 32 170 40 32 16
Designation H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
MTENN1616H16161610034168TN**1604**MT1603CTM513HL1814ML0625L2.0 L3.0
MTENN2020K162020125342010TN**1604**MT1603CTM513HL1814ML0625L2.0 L3.0
MTENN2525M162525150342512.5TN**1604**MT1603CTM513HL1814ML0625L2.0 L3.0
MTENN3232P163232170343216TN**1604**MT1603CTM513HL1814ML0625L2.0 L3.0
MTENN2525M222525150382512.5TN**2204**MT2204CTM617HL1917ML0830L2.5 L4.0
MTENN3232P223232170403216TN**2204**MT2204CTM617HL1917ML0830L2.5 L4.0

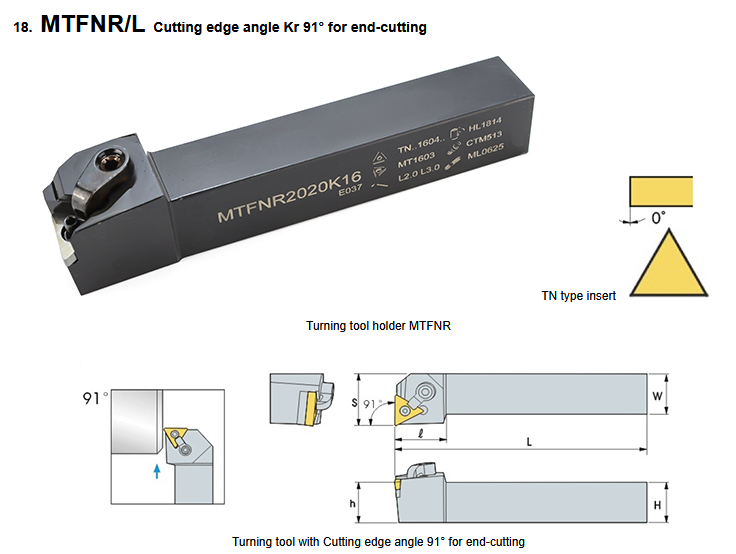

MTFNR/L tool holder parameters (mm)

  Designation size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
Тип  Плас Прок Штыр  Зажи винт Ключ
MTFNR/L1616H16 16 16 100 29 16 20 TN**1604** MT1603 CTM513 HL1814 ML0625 L2.0, L3.0
MTFNR/L2020K16 20 20 125 29 20 25
MTFNR/L2525M16 25 25 150 30 25 32
MTFNR/L3232P16 32 32 170 32 32 40
MTFNR/L2525M22 25 25 150 36 25 32 TN**2204** MT2204 CTM617 HL1917 ML0830 L2.5, L4.0
MTFNR/L3232P22 32 32 170 36 32 40
Designation H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
MTFNR/L1616H161616100291620TN**1604**MT1603CTM513HL1814ML0625L2.0 L3.0
MTFNR/L2020K162020125292025TN**1604**MT1603CTM513HL1814ML0625L2.0 L3.0
MTFNR/L2525M162525150302532TN**1604**MT1603CTM513HL1814ML0625L2.0 L3.0
MTFNR/L3232P163232170323240TN**1604**MT1603CTM513HL1814ML0625L2.0 L3.0
MTFNR/L2525M222525150362532TN**2204**MT2204CTM617HL1917ML0830L2.5 L4.0
MTFNR/L3232P223232170363240TN**2204**MT2204CTM617HL1917ML0830L2.5 L4.0

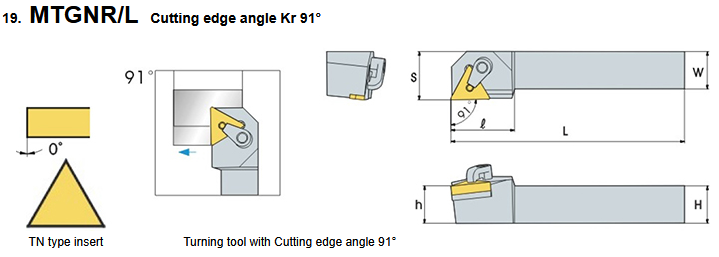

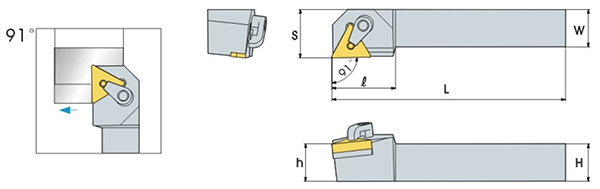

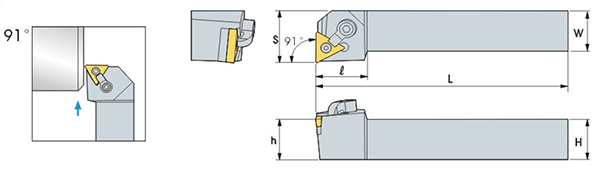

MTGNR/L tool holder parameters (mm)

Designation size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
Тип  Плас Прок Штыр  Зажи винт Ключ
MTGNR/L1616H16 16 16 100 29 16 20 TN**1604** MT1603 CTM513 HL1814 ML0625 L2.0, L3.0
MTGNR/L2020K16 20 20 125 29 20 25
MTGNR/L2525M16 25 25 150 30 25 32
MTGNR/L2525M22 25 25 150 32 25 32 TN**2204** MT2204 CTM617 HL2217 ML0830 L2.5, L4.0
MTGNR/L3232P22 32 32 170 32 32 40
Designation H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
MTGNR/L1616H161616100291620TN**1604**MT1603CTM513HL1814ML0625L2.0 L3.0
MTGNR/L2020K162020125292025TN**1604**MT1603CTM513HL1814ML0625L2.0 L3.0
MTGNR/L2525M162525150302532TN**1604**MT1603CTM513HL1814ML0625L2.0 L3.0
MTGNR/L2525M222525150322532TN**2204**MT2204CTM617HL2217ML0830L2.5 L4.0
MTGNR/L3232P223232170323240TN**2204**MT2204CTM617HL2217ML0830L2.5 L4.0

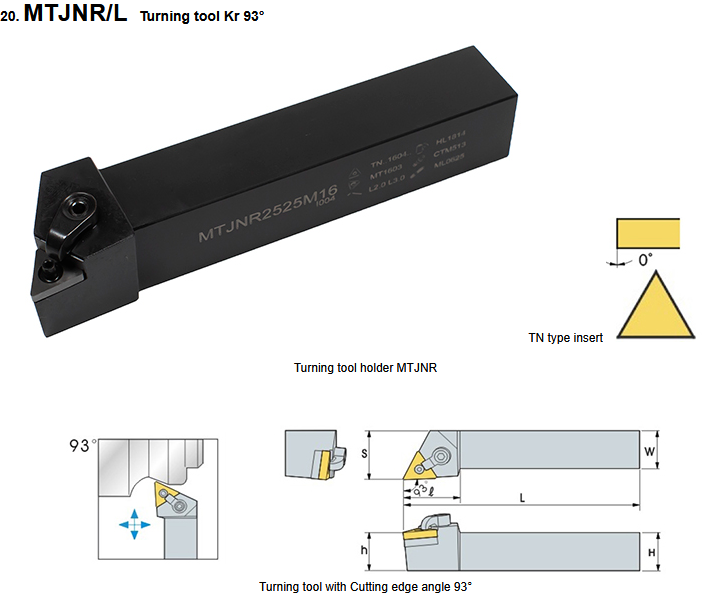

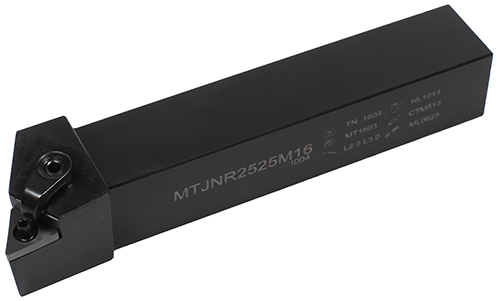

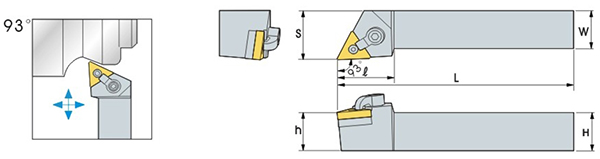

MTJNR/L tool holder parameters (mm)

Designation size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
Тип  Плас Прок Штыр  Зажи винт Ключ
MTJNR/L1616H16 16 16 100 30 16 20 TN**1604** MT1603 CTM513 HL1814 ML0625 L2.0, L3.0
MTJNR/L2020K16 20 20 125 30 20 25
MTJNR/L2525M16 25 25 150 32 25 32
MTJNR/L3232P16 32 32 170 35 32 40
MTJNR/L2525M22 25 25 150 34 25 32 TN**2204** MT2204 CTM617 HL1917 ML0830 L2.5, L4.0
MTJNR/L3232P22 32 32 170 35 32 40
MTJNR/L4040R22 40 40 200 38 40 50
Designation H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
MTJNR/L1616H161616100301620TN**1604**MT1603CTM513HL1814ML0625L2.0 L3.0
MTJNR/L2020K162020125302025TN**1604**MT1603CTM513HL1814ML0625L2.0 L3.0
MTJNR/L2525M162525150322532TN**1604**MT1603CTM513HL1814ML0625L2.0 L3.0
MTJNR/L3232P163232170353240TN**1604**MT1603CTM513HL1814ML0625L2.0 L3.0
MTJNR/L2525M222525150342532TN**2204**MT2204CTM617HL1917ML0830L2.5 L4.0
MTJNR/L3232P223232170353240TN**2204**MT2204CTM617HL1917ML0830L2.5 L4.0
MTJNR/L4040R224040200384050TN**2204**MT2204CTM617HL1917ML0830L2.5 L4.0

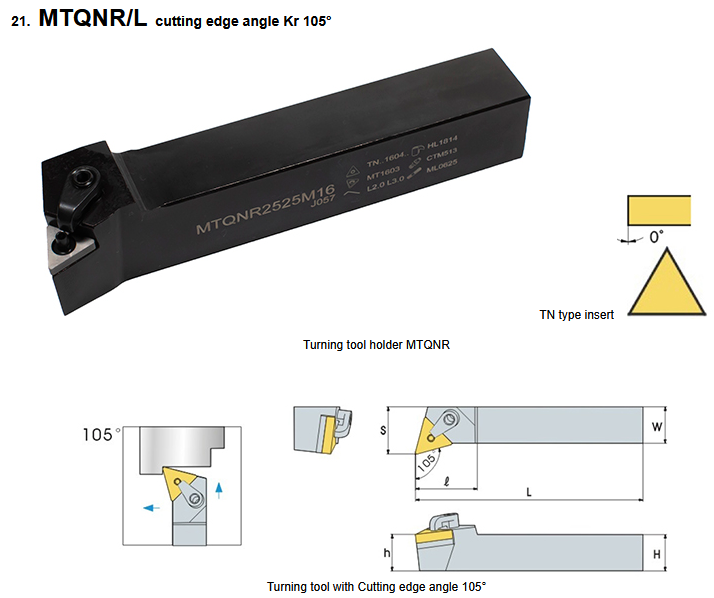

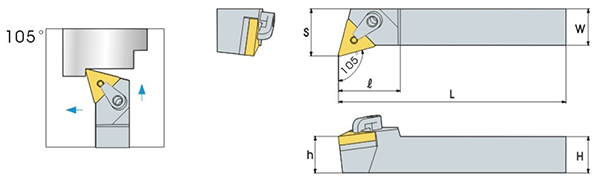

MTQNR/L tool holder parameters (mm)

Designation size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
Тип  Плас Прок Штыр  Зажи винт Ключ
MTQNR/L1616H16 16 16 100 30 16 20 TN**1604** MT1603 CTM513 HL1814 ML0625 L2.0, L3.0
MTQNR/L2020K16 20 20 125 30 20 25
MTQNR/L2525M16 25 25 150 32 25 32
MTQNR/L3232P16 32 32 170 35 32 40
MTQNR/L2525M22 25 25 150 32 25 32 TN**2204** MT2204 CTM617 HL1917 ML0830 L2.5, L4.0
MTQNR/L3232P22 32 32 170 35 32 40
Designation H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
MTQNR/L1616H161616100301620TN**1604**MT1603CTM513HL1814ML0625L2.0 L3.0
MTQNR/L2020K162020125302025TN**1604**MT1603CTM513HL1814ML0625L2.0 L3.0
MTQNR/L2525M162525150322532TN**1604**MT1603CTM513HL1814ML0625L2.0 L3.0
MTQNR/L3232P163232170353240TN**1604**MT1603CTM513HL1814ML0625L2.0 L3.0
MTQNR/L2525M222525150322532TN**2204**MT2204CTM617HL1917ML0830L2.5 L4.0
MTQNR/L3232P223232170353240TN**2204**MT2204CTM617HL1917ML0830L2.5 L4.0

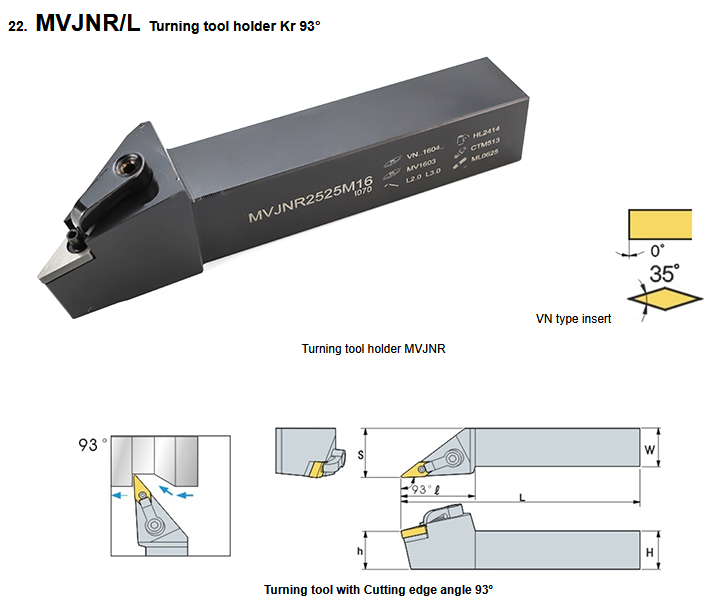

MVJNR/L tool holder parameters (mm)

Designation size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
Тип  Плас Прок Штыр  Зажи винт Ключ
MVJNR/L1616K16 16 16 125 44 16 20 VN**1604** MV1603 CTM513 HL2414 ML0625 L2.0, L3.0
MVJNR/L2020K16 20 20 125 44 20 25
MVJNR/L2525M16 25 25 150 44 25 32
MVJNR/L3232P16 32 32 170 46 32 40
Designation H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
MVJNR/L1616K161616125441620VN**1604**MV1603CTM513HL2414ML0625L2.0 L3.0
MVJNR/L2020K162020125442025VN**1604**MV1603CTM513HL2414ML0625L2.0 L3.0
MVJNR/L2525M162525150442532VN**1604**MV1603CTM513HL2414ML0625L2.0 L3.0
MVJNR/L3232P163232170463240VN**1604**MV1603CTM513HL2414ML0625L2.0 L3.0

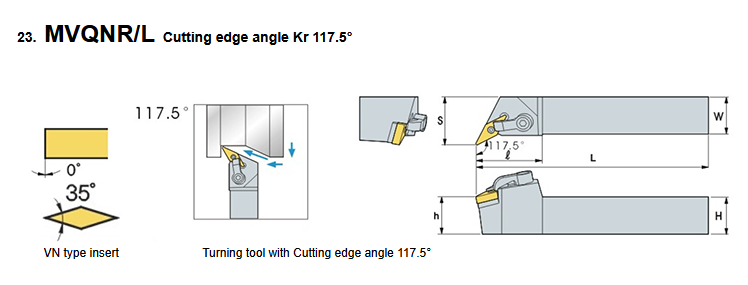

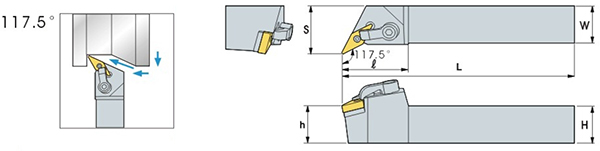

MVQNR/L tool holder parameters (mm)

Designation  size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
Тип  Плас Прок Штыр  Зажи винт Ключ
MVQNR/L2020K16 20 20 125 40 20 25 VN**1604** MV1603 CTM513 HL2114 ML0625 L2.0, L3.0
MVQNR/L2525M16 25 25 150 40 25 32
MVQNR/L3232P16 32 32 170 40 32 40
Designation H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
MVQNR/L2020K162020125402025VN**1604**MV1603CTM513HL2114ML0625L2.0 L3.0
MVQNR/L2525M162525150402532VN**1604**MV1603CTM513HL2114ML0625L2.0 L3.0
MVQNR/L3232P163232170403240VN**1604**MV1603CTM513HL2114ML0625L2.0 L3.0

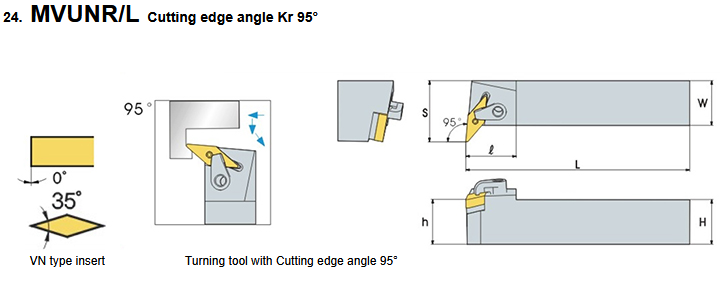

MVUNR/L tool holder parameters (mm)

Designation  size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
Тип  Плас Прок Штыр  Зажи винт Ключ
MVUNR/L2020K16 20 20 125 30 20 29 VN**1604** MV1603 CTM513 HL1814 ML0625 L2.0, L3.0
MVUNR/L2525M16 25 25 150 30 25 34
Designation H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
MVUNR/L2020K162020125302029VN**1604**MV1603CTM513HL1814ML0625L2.0 L3.0
MVUNR/L2525M162525150302534VN**1604**MV1603CTM513HL1814ML0625L2.0 L3.0

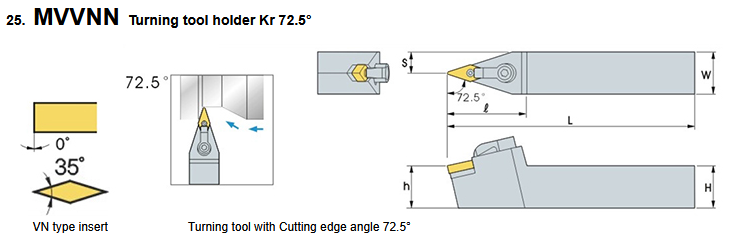

MVVNN tool holder parameters (mm)

Designation size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
Тип  Плас Прок Штыр  Зажи винт Ключ
MVVNN2020K16 20 20 125 46 20 10 VN**1604** MV1603 CTM513 HL2414 ML0625 L2.0, L3.0
MVVNN2525M16 25 25 150 47 25 12.5
Designation H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
MVVNN2020K162020125462010VN**1604**MV1603CTM513HL2414ML0625L2.0 L3.0
MVVNN2525M162525150472512.5VN**1604**MV1603CTM513HL2414ML0625L2.0 L3.0

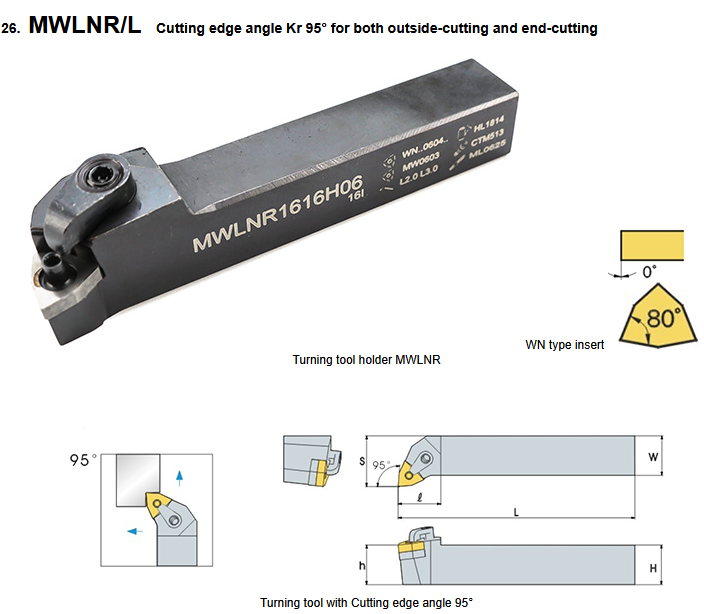

MWLNR/L tool holder parameters (mm)

Designation size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
Тип  Плас Прок Штыр  Зажи винт Ключ
MWLNR/L1616H06 16 16 100 27 16 20 WN**0604** MW0603 CTM513 HL1814 ML0625 L2.0, L3.0
MWLNR/L2020K06 20 20 125 27 20 25
MWLNR/L2525M06 25 25 150 27 25 32
MWLNR/L1616H08 16 16 100 27 16 20 WN**0804** MW0804 CTM617 HL1814 ML0625 L2.5, L3.0
MWLNR/L2020K08 25 25 125 28 20 25
MWLNR/L2525M08 25 25 150 30 25 32
MWLNR/L3232P08 32 32 170 30 32 40
MWLNR/L4040R08 40 40 200 38 40 50
Designation H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
MWLNR/L1616H061616100271620WN**0604**MW0603CTM513HL1814ML0625L2.0 L3.0
MWLNR/L2020K062020125272025WN**0604**MW0603CTM513HL1814ML0625L2.0 L3.0
MWLNR/L2525M062525150272532WN**0604**MW0603CTM513HL1814ML0625L2.0 L3.0
MWLNR/L1616H081616100271620WN**0804**MW0804CTM617HL1814ML0625L2.5 L3.0
MWLNR/L2020K082525125282025WN**0804**MW0804CTM617HL1814ML0625L2.5 L3.0
MWLNR/L2525M082525150302532WN**0804**MW0804CTM617HL1814ML0625L2.5 L3.0
MWLNR/L3232P083232170303240WN**0804**MW0804CTM617HL1814ML0625L2.5 L3.0
MWLNR/L4040R084040200384050WN**0804**MW0804CTM617HL1814ML0625L2.5 L3.0
