Pipe Thickness Gauge

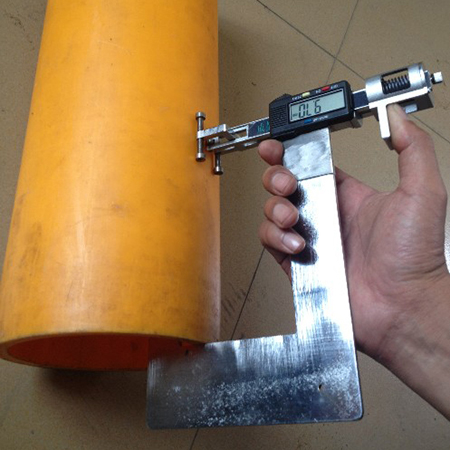

Pipe thickness gauge application

Continuous thickness measuring for pipeline

The Pipe Thickness Gauge at SharpFine is a measuring instrument designed for the continuous measurement of thickness in various types of pipes, including steel, plastic, cement, ceramic, and more.

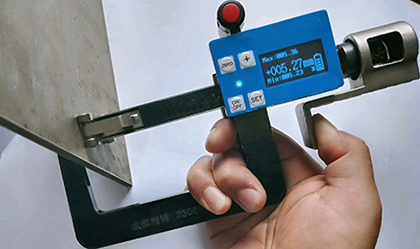

In addition, this versatile gauge can be utilized for the continuous assessment of sheet thickness or plate thickness in various materials.

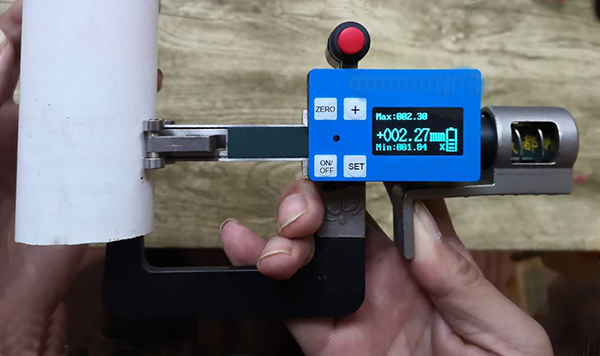

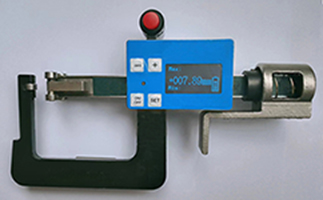

Pipe thickness gauge Type-A

Our thickness gauge has the function of timely display the maximum and minimum values during the measurement, the final data can be locked for reading，there will be the out-of-tolerance alarm if your preset value is exceeded.

Type-A feature

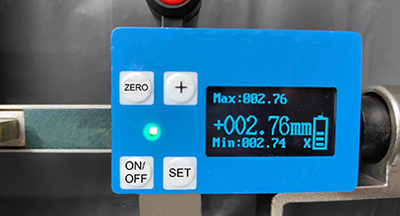

Real-time display data.
Display the maximum and minimum values.
Excessive alarm.
Resolution : 0.01mm
Available in option of throat depth :
L=40mm or L=150mm
Available in option of measuring range :
0-30mm,0-50mm,0-90mm,0-120mm,and more

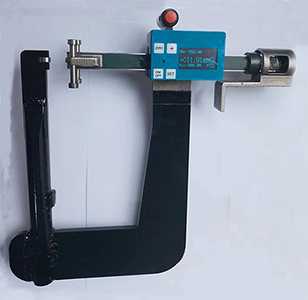

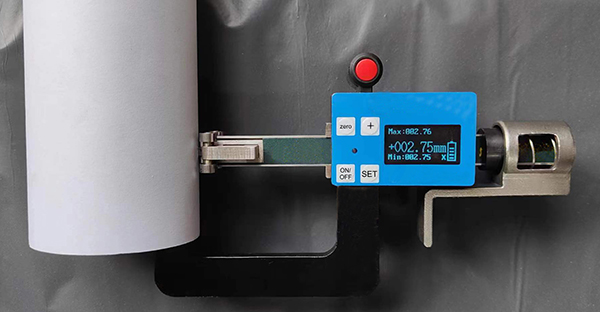

Pipe thickness gauge Type-B

Our digital pipe thickness gauge is equipped with advanced features that enable wireless connectivity to computers for comprehensive statistical analysis and data interpretation, catering to the needs of professionals in various industries.

Type-B feature

Real-time display data.
Display the maximum and minimum values.
Excessive alarm.
The data can be transmitted wirelessly to a computer.
Resolution : 0.01mm
Available in option of throat depth :
- L=40mm or L=150mm.
Available in option of measuring range :
- 0-30mm,0-50mm,0-90mm,0-120mm,and more.

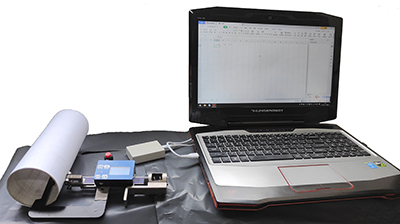

Thickness gauge connect to computer

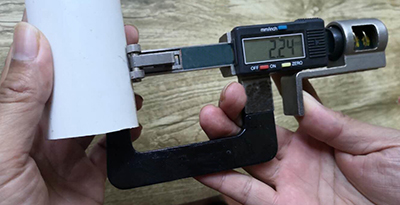

Pipe thickness gauge Type-C

The thickness gauge is designed to be both portable and user-friendly, ensuring reliable, accurate measurements while offering convenience for a wide range of applications.

Type-C feature

Real-time display data.
Resolution ：0.01mm.
Available in option of throat depth : L=40mm or L=150mm.
Available in option of measuring range :
- 0-30mm,0-50mm,0-90mm,0-120mm,and more.

Thickness gauge specifications

Resolution : 0.01mm	Measuring range (The thickness of the material being tested)
Throat depth L=40mm	0-30mm / 0-50mm / 0-90mm / 0-120mm
Throat depth L=150mm	0-30mm / 0-50mm / 0-90mm / 0-120mm
