We offer customized services for the circumference diameter ruler to meet the specific requirements of our clients.
As per our client request，the circumference diameter ruler can be calibrated by Third-party detection institution.

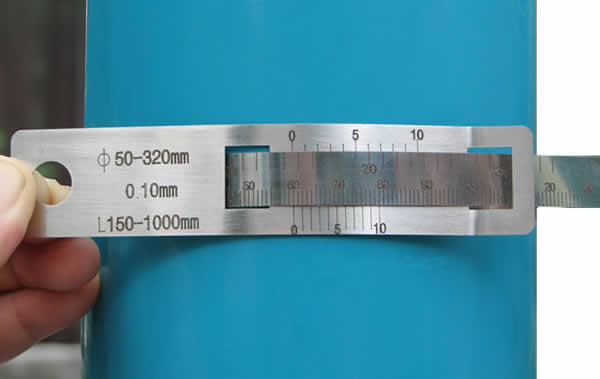

Circumference diameter ruler can be used for measuring the circumference and diameter.
Resolution:0.1mm / .005”.
It is reading of circumference on the lower scale,but reading of diameter on the upper scale.
Measuring range from Ø50 (20)mm / 2”(.8”) to Ø12000mm / 480”.
Made of stainless steel.
These Precision Circumference tapes/rulers are constructed with a 12mm （.48”）widede
Main Body and the standard thickness of the material is 0.25mm (.010″ )

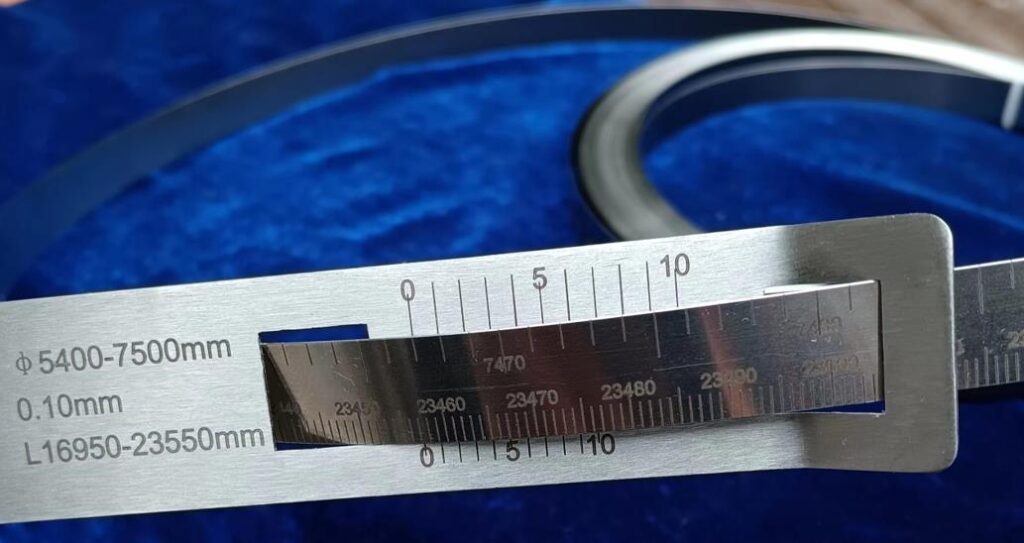

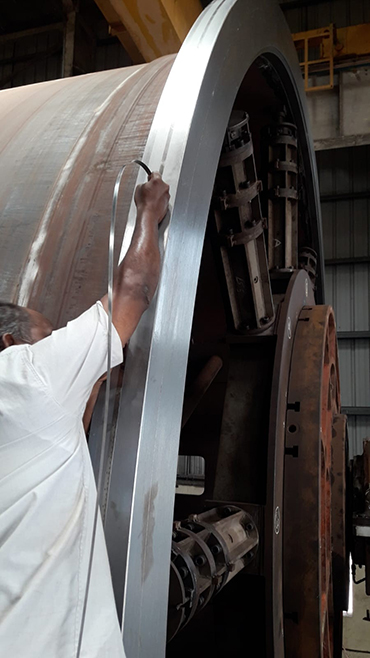

Video: Sharpfine’s customer is measuring the diameter of large workpieces with a
circumference diameter ruler ranging from 5400mm to 7500mm.
| Range |
|---|
| 50 - 300mm / 2-12" |
| 4200 - 4500mm / 168-180" |
| 8400 - 8700mm / 336-348" |
| 300 - 600mm / 12-24" |
| 4500 - 4800mm / 180-192" |
| 8700 - 9000mm / 348-360" |
| 600 - 900mm / 24-36" |
| 4800 - 5100mm / 192-204" |
| 9000 - 9300mm / 360-372" |
| 900 - 1200mm / 36-48" |
| 5100 - 5400mm / 204-216" |
| 9300 - 9600mm / 372-384" |
| 1200 - 1500mm / 48-60" |
| 5400 - 5700mm / 216-228" |
| 9600 - 9900mm / 384-396" |
| 1500 - 1800mm / 60-72" |
| 5700 - 6000mm / 228-240" |
| 9900 - 10200mm / 396-408" |
| 1800 - 2100mm / 72-84" |
| 6000 - 6300mm / 240-252" |
| 10200 - 10500mm/ 408-420" |
| 2100 - 2400mm / 84-96" |
| 6300 - 6600mm / 252-264" |
| 10500 - 10800mm / 420-432" |
| 2400 - 2700mm / 96-108" |
| 6600 - 6900mm / 264-276" |
| 10800 - 11100mm / 432-444" |
| 2700 - 3000mm / 108-120" |
| 6900 - 7200mm / 276-288" |
| 11100 - 11400mm / 444-456" |
| 3000 - 3300mm / 120-132" |
| 7200 - 7500mm / 288-300" |
| 11400 - 11700mm / 456-468" |
| 3300 - 3600mm / 132-144" |
| 7500 - 7800mm / 300-312" |
| 11700 - 12000mm / 468-480" |
| 3600 - 3900mm / 144-156" |
| 7800 - 8100mm / 312-324" |
| 3900 - 4200mm / 156-168" |
| 8100 - 8400mm / 324-336" |
