Universal Micrometer

With 7 pairs of interchangeable anvils(flat,spherical,spline,disk,blade,point and knife-edge),for a wide range of applications.

  • Protection level: IP54.
  • Criterion: DIN40050/IEC529 standard.
  • Painted frame for Type-A;
  • Chrome-plated frame for Type-B.

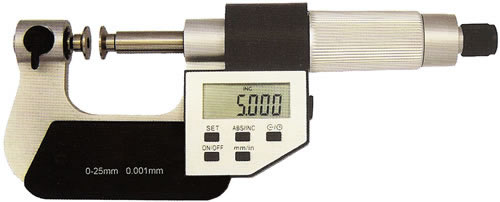

Universal micrometer - Electronic System Type-A
Universal micrometer - Electronic System Type-A
  • Resolution: 0.01mm / 0.0001".

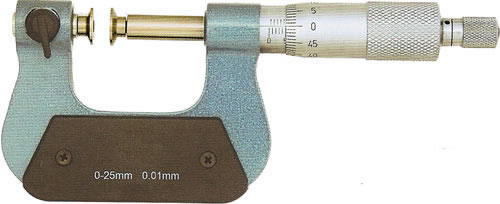

Universal micrometer Type-C
Universal micrometers Type-A Type-B Type-C
Range Accuracy
0-25mm / 0-1"0.004mm
25-50mm / 1-2"0.004mm
50-75mm / 2-3"0.005mm
75-100mm / 3-4"0.005mm
100-125mm / 4-5"0.006mm
125-150mm / 5-6"0.006mm
150-175mm / 6-7"0.007mm
175-200mm / 7-8"0.007mm
Interchangeable anvils list
Anvils Type Photo
Flat
Spherical
Blade
Point
Spline
Disk
Knife-edge

At Sharpfine, our commitment to quality
