Three Point Micrometer

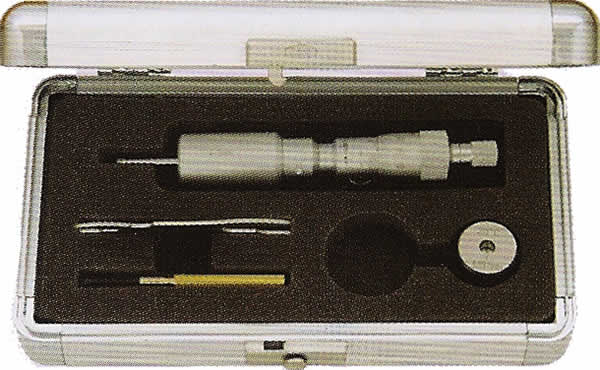

3 Point micrometer Type-A
  • Highly durable because of carbide-tipped contact points.
  • Two point models for very small holes.
  • Ratchet stop.
3 Point micrometer Type-A
Range Accuracy Setting rings
2-2.5mm / 0.08-0.1"0.004mm/0.00016"Ø2.5mm/0.1"
2.5-3mm / 0.1-0.12"0.004mm/0.00016"Ø2.5mm/0.1"
3-4mm / 0.12-0.16"0.004mm/0.00016"Ø4mm/0.16"
4-5mm / 0.16-0.2"0.004mm/0.00016"Ø5mm/0.2"
5-6mm / 0.2-0.24"0.004mm/0.00016"Ø6mm/0.24"
Notice: Chrome-plated surface. Resolution:0.01mm / 0.0001".
3 Point micrometer Type-B
  • Highly durable because of carbide-tipped contact points.
  • Within 100mm/4": Supplied with setting rings. Over 12mm/0.5": Titanium-plated anvils are optional.
  • Ratchet stop.
Three point micrometer Type-B
Range Accuracy Setting rings Extension rods
6-8mm / 0.275-0.350.004mm/0.00016Ø6mm/0.275100mm/4
8-10mm / 0.35-0.4250.004mm/0.00016Ø8mm/0.35100mm/4
10-12mm / 0.425-0.50.004mm/0.00016Ø10mm/0.5100mm/4
12-16mm / 0.5-0.650.004mm/0.00016Ø16mm/0.65150mm/6
16-20mm / 0.65-0.80.004mm/0.00016Ø16mm/0.65150mm/6
20-25mm / 0.8-10.004mm/0.00016Ø25mm/1150mm/6
25-30mm / 1-1.20.004mm/0.00016Ø25mm/1150mm/6
30-40mm / 1.2-1.60.004mm/0.00016Ø40mm/1.6150mm/6
40-50mm / 1.6-20.005mm/0.0002Ø40mm/1.6150mm/6
50-63mm / 2-2.50.005mm/0.0002Ø62mm/2.5150mm/6
62-75mm / 2.5-30.005mm/0.0002Ø62mm/2.5150mm/6
75-88mm / 3-3.50.005mm/0.0002Ø87mm/3.5150mm/6
87-100mm / 3.5-40.005mm/0.0002Ø87mm/3.5150mm/6
Notice: Chrome-plated surface. Resolution:0.01mm / 0.0001".

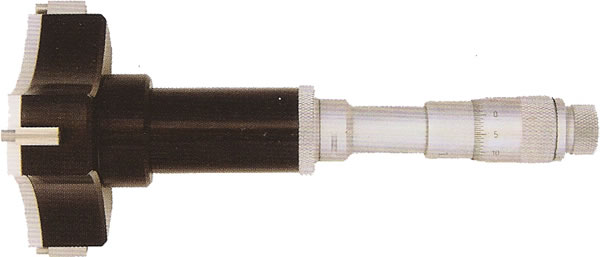

3 Point micrometer Type-C
  • Over 100mm/4": Setting rings are optional;Measuring heads are interchangeable
  • Resolution:0.01mm / 0.0001".
  • Ratchet stop. Aluminum body.
  • Titanium-plated anvils are optional.
3 Point micrometer Type-C
Range Accuracy Setting rings Extension rods
50-63mm / 2-2.5"0.005mm/0.0002"Ø62mm/2.5"150mm/6"
62-75mm / 2.5-3"0.005mm/0.0002"Ø62mm/2.5"150mm/6"
75-88mm / 3-3.5"0.005mm/0.0002"Ø87mm/3.5"150mm/6"
87-100mm / 3.5-4"0.005mm/0.0002"Ø87mm/3.5"150mm/6"
100-125mm / 4-5"0.005mm/0.0002"Ø112.5mm/4.5"150mm/6"
125-150mm / 5-6"0.005mm/0.0002"Ø137.5mm/5.5"150mm/6"
150-175mm / 6-7"0.005mm/0.0002"Ø162.5mm/6.5"150mm/6"
175-200mm / 7-8"0.005mm/0.0002"Ø187.5mm/7.5"150mm/6"
200-225mm / 8-9"0.007mm/0.00028"Ø212.5mm/8.5"150mm/6"
225-250mm / 9-10"0.007mm/0.00028"Ø237.5mm/9.5"150mm/6"
250-275mm / 10-11"0.007mm/0.00028"Ø262.5mm/10.5"150mm/6"
275-300mm / 11-12"0.007mm/0.00028"Ø287.5mm/11.5"150mm/6"
Notice:Anodic oxidation surface; Resolution:0.01mm / 0.0001".

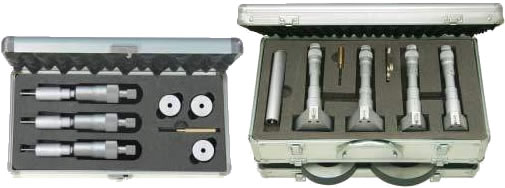

3 Point micrometer set Type-A
Individual range Setting rings Piece/set
2-2.5mm / 0.08-0.1/ 2.5-3mm / 0.1-0.12Ø2.5mm/0.12
3-4mm / 0.12-0.16/ 4-5mm / 0.16-0.2/ 5-6mm / 0.2-0.24Ø4mm/0.16/ Ø5mm/ Ø6mm/0.243
Three point micrometer set Type-B list-1
Individual range(Inch) Setting rings Extension rods Piece/set
0.275-0.35"/ 0.35-0.425"/ 0.425-0.50.275"/ 0.35"/ 0.543
0.5-0.65"/ 0.65-0.80.6562
0.8-1"/ 1-1.2"/ 1.2-1.61"/ 1.663
0.8-1"/ 1-1.2"/ 1.2-1.6"/ 1.6-21"/ 1.664
1.6-2"/ 2-2.5"/ 2.5-3"/ 3-3.5"/ 3.5-41.6"/ 2.5"/ 3.565
2-2.5"/ 2.5-3"/ 3-3.5"/ 3.5-42.5"/ 3.564
Notice: chrome-plated surface
Three point micrometer set Type-B list-2
Individual range(Inch) Setting rings Extension rods Piece/set
0.275-0.35/ 0.35-0.425/ 0.425-0.50/275/ 0/35/ 0/543
0.5-0.65/ 0.65-0.80/6562
0.8-1/ 1-1.2/ 1.2-1.61/ 1/663
0.8-1/ 1-1.2/ 1.2-1.6/ 1.6-21/ 1/664
1.6-2/ 2-2.5/ 2.5-3/ 3-3.5/ 3.5-41/6/ 2/5/3/565
2-2.5/ 2.5-3/ 3-3.5/ 3.5-42/5/ 3/564
Notice: chrome-plated surface
3 Point micrometer set Type-B list-3
Individual range(Inch) Setting rings Extension rods Piece/set
2-2./5/ 2.5-3/ 3-3.5/ 3.5-42.5/ 3.564
Notice: Painted surface
3 Point micrometer set Type-B list-4
Individual range(Inch) Setting rings Extension rods Piece/set
50-63/ 62-75/ 75-88/ 87-100Ø62/ 87mm150mm4
Notice: Painted surface
Three point micrometer set Type-C list-1
Individual range(Inch) Setting rings Extension rods Piece/set
2-2.5"/ 2.5-3"/ 3-3.5"/ 3.5-4"2.5"/ 3.5"6"4
Notice:Anodic oxidation surface
Three point micrometer set Type-C list-1
Individual range(Inch) Setting rings Extension rods Piece/set
50-63/ 62-75/ 75-88/ 87-100Ø62. 87mm150mm4
Notice:Anodic oxidation surface
