Spline Micrometer

Small measuring faces for measuring splined shafts,slots and keyways. Carbide-tipped measuring faces.
  • Protection level: IP54.
  • Criterion: DIN40050/IEC529 standard.
  • Carbide measuring faces.
  • Painted frame.

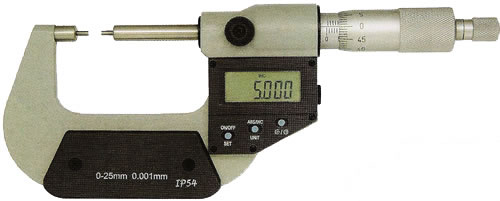

Digital spline micrometer
Digital spline micrometer - Type-A

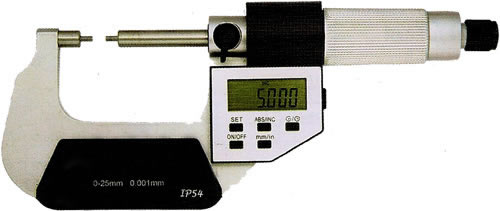

Digital spline micrometer
Digital spline micrometer - Type-B
  • Carbide measuring faces.
  • Painted frame.

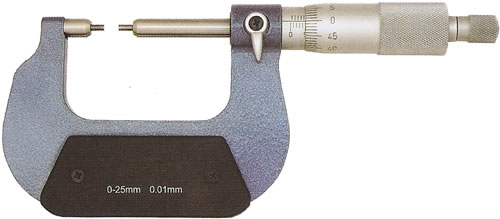

spline micrometer
Spline micrometer Type-C
Spline micrometer
Spline micrometer
Spline micrometer Type-A Type-B Type-C
RangeAccuracyRangeAccuracy
0-25mm / 0-1"0.004mm 100-125mm / 4-5"0.006mm
25-50mm / 1-2"0.004mm 125-150mm / 5-6"0.006mm
50-75mm / 2-3"0.005mm 150-175mm / 6-7"0.007mm
75-100mm / 3-4"0.005mm
Anvil's shape A or shape B is optional with consumer.
Reference:
Point micrometer
