Special Micrometer Heads

0-5mm Special Micrometer Heads

Accuracy	0.005mm	Resolution	0.01mm	L	23.5+X+Y

Parameter	X(mm)	Y(mm)	A(mm)	D(mm)	M
ordered	6-9	6 6.5 6.35 7.5	0 4 Y	Ø6 Ø6.5 Ø6.35	M6×0.5 M6.5×0.5 M6.35×0.5

0-6.5mm Special Micrometer Heads

Accuracy	0.005mm	Resolution	0.01mm	L	23.5+X+Y

Parameter	X(mm)	Y(mm)	A(mm)	D(mm)	M
ordered	7.5-9	6 6.5 6.35 7.5	0 4 Y	Ø6 Ø6.5 Ø6.35	M6×0.5 M6.5×0.5 M6.35×0.5

0-6.5mm Special Micrometer Heads

Accuracy	0.005mm	Resolution	0.01mm	L	23.5+X+Y

Parameter	X(mm)	Y(mm)	D(mm)	SR
ordered	10-29	8 9.5 9.525 10	Ø8 Ø9.5 Ø9.525 Ø10	SR4 or tipped with a steel ball of Ø3.5

Smm Special Micrometer Heads

Accuracy:0.005mm

Range	Smm	Resolution	0.01mm	L	23.5+X+Y

Parameter	X(mm)	Y(mm)	D(mm)	S(mm)
ordered	19-21	9.5 9.525	Ø9.5 Ø9.525	3 4.5 7.5

0-13mm Special Micrometer Heads

Accuracy	0.005mm	Resolution	0.01mm	L	32+X+Y

Parameter	X(mm)	Y(mm)	A(mm)	D(mm)	M
ordered	17-19	9.5 9.525	0 4 Y	Ø9.5 Ø9.525	M9.5×0.5 M9.525×0.635 M9.525×0.794

0-13mm Special Micrometer Heads(Large Diameter Thimble)

Accuracy	Resolution	L
0.005mm	0.01mm	30+X

Parameter	X(mm)	Y(mm)	A(mm)	D(mm)	M
ordered	24.5--26.5	9.5 9.525	0 4 Y	Ø9.5 Ø9.525	M9.5×0.5 M9.525×0.635 M9.525×0.794

0-15mm Special Micrometer Heads

SR4 or tipped with a steel ball of Ø3.5.

Accuracy	0.005mm	Resolution	0.01mm	L	32+X+Y

Parameter	X(mm)	Y(mm)	A(mm)	D(mm)	M
ordered	16-29	10 13 15	0 4 Y	Ø9.5 Ø9.525 Ø10	M9.5×0.5 M9.525×0.635 M10×0.5

0-15mm Special Micrometer Heads(spherical measuring face)

Parameter	Y(mm)	L	Accuracy	Resolution
Preference data or ordered	20.5 70.5	69.5+Y	0.01mm	0.01mm

0-25mm Special Micrometer Heads

Accuracy	0.004mm	Resolution	0.01mm	L	65+X+Y	d(mm)	Ø6.5, 8	SR	SR5 or tipped with a steel ball of Ø4.5

Parameter	X(mm)	Y(mm)	A(mm)	D1(mm)	D2(mm)	M
ordered	27-34	10, 16.5, 19, 29	0, 4, Y	Ø9.5, 9.525, 14, 22	Ø18, 21, 29	M9.5×0.5, 9.525, 0.635, 10×0.5

0-50mm Special Micrometer Heads

Accuracy	0.005mm	Resolution	0.01mm	L	92.5+X+Y	d(mm)	Ø6.5, 8	SR	SR5 or tipped with a steel ball of Ø4.5

Parameter	X(mm)	Y(mm)	A(mm)	D1(mm)	D2(mm)	M
ordered	50-65	14, 29, 35.5	0, 4, Y	Ø9.5, 9.525, 14, 22	Ø18, 21, 29	M9.5×0.5, 9.525, 0.635, 10×0.5

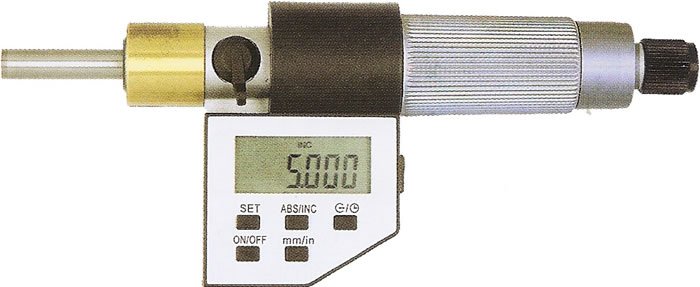

0-25mm Special Electronic Micrometer Heads

Accuracy	Resolution	L
0.004mm	0.001mm	98.5+X+Y

Parameter	X(mm)	Y(mm)	D(mm)
ordered	28.5-31	13 17.5	Ø9.525 Ø10 Ø12

Accuracy	Resolution	L
0.004mm	0.001mm	154.5mm

Parameter	D(mm)
Preference data or ordered	Ø9.5 Ø9.525 Ø10
