Snap Micrometer

Retractable anvil with an indicator for precision measurement of mass-produced parts.
  • Carbide measuring faces.
  • Micrometers accuracy : 0.003mm/0.00012"; Indicator accuracy : 0.001mm / 0.00005".
  • Chrome-plated frame.

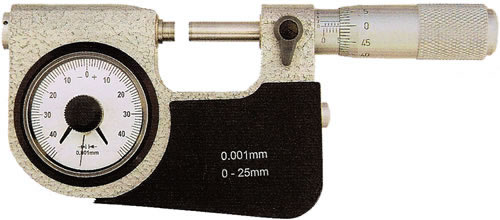

Indicating micrometer
Indicating micrometer Type-A

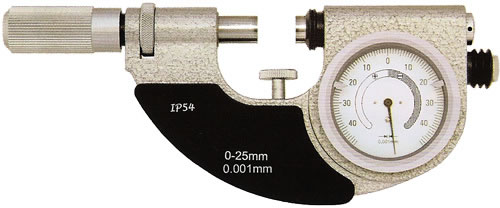

Indicating micrometer
Indicating micrometer Type-B
Snap micrometer Type-A Type-B
Resolution of micrometer head    Indicator rangeIndicator resolution
0.002mm / 0.0001"±0.04mm/±0.0015"0.001mm/0.00005"
Snap micrometer Type-A
Range 0-25mm / 0-1" 25-50mm / 1-2" 50-75mm / 2-3" 75-100mm / 3-4"
Snap micrometer Type-B
Range      0-25mm / 0-1"
  • Protection level: IP54.
  • Direct GO/NG judgment for mass-produced parts.
  • Measuring-force: 5-10N.
  • Carbide measuring faces:Ø10mm.Painted frame.
  • Indicator Range: ±0.04mm / ±0.0015".
  • Indicator resolution: 0.001mm / 0.00005".
Indicating micrometer
Indicating micrometer Type-C
Snap micrometer
Snap micrometer Type-C
RangeIndicator Accuracy  RangeIndicator Accuracy
0-25mm / 0-1" 0.001mm 50-75mm / 2-3"0.001mm
25-50mm / 1-2" 0.001mm 75-100mm / 3-4"0.001mm
1" indicating micrometer, 2" indicating micrometer, 3" indicating micrometer, 4" indicating micrometers.
Reference:
Large snap micrometer
