Screw Thread Micrometer

Screw thread micrometer can be used for measuring pitch diameter.
60°or 55° V-shaped and knife-edged anvils(interchangeable) are optional.Dimension of anvil-tail: Ø5X15mm.

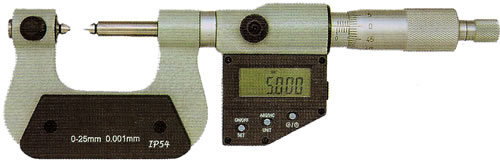

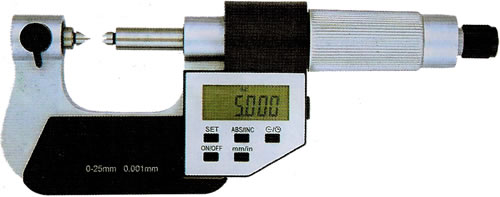

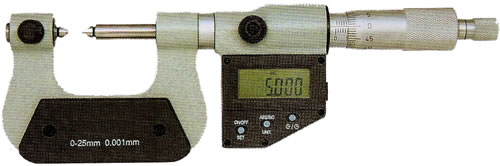

Screw Thread Micrometer (Non-rotating spindle)

Protection level: IP54
Criterion: DIN40050/IEC529 standard
Painted frame for Type-A; Chrome-plated frame for Type-B

Resolution: 001mm / 0.001".
Painted frame.

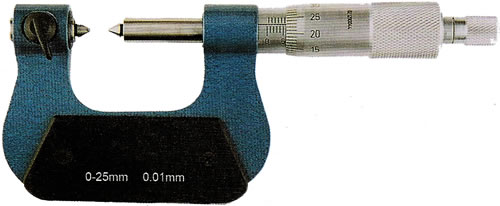

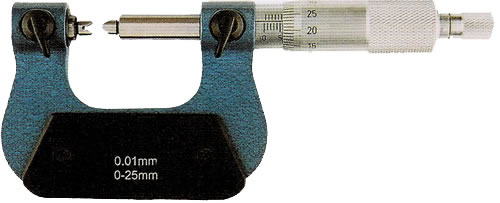

Screw Thread Micrometers

Protection level: IP54.
Criterion: DIN40050/IEC529 standard.
Painted frame.

Resolution: 001mm / 0.001".
Painted frame.

Screw thread micrometers Type-A Type-B Type-C Type-D Type-E
Range	Accuracy	Range	Accuracy
0-25mm / 0-1"	0.004mm	100-125mm / 4-5"	0.006mm
25-50mm / 1-2"	0.004mm	125-150mm / 5-6"	0.006mm
50-75mm / 2-3"	0.005mm	150-175mm / 6-7"	0.007mm
75-100mm / 3-4"	0.005mm	175-200mm / 7-8"	0.007mm

V-shaped and con-shaped anvils(optional) list-1
Pitch: 60° thread (Metric screw and United screw)
0.4-0.5mm / 64-48TPI	0.6-0.9mm / 44-28TPI	1-1.75mm / 24-14TPI
2-3mm / 13-9TPI	3.5-5mm / 8-5TPI	5.5-7mm / 4.5-3.5TPI

V-shaped and con-shaped anvils(optional) list-2
Pitch: 55° thread (Whitworth screw)
60-48TPI	48-40TPI	40-32TPI	32-24TPI	24-18TPI
18-14TPI	14-10TPI	10-7TPI	7-4.5TPI	4.5-3.5TPI
