Point Micrometer

Point Micrometer with Adjustable Anvil

  • Protection level: IP54
  • Criterion: DIN40050/IEC529 standard

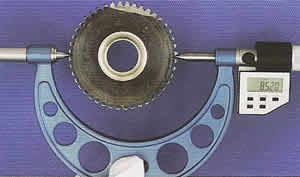

  • Wide measuring range with adjustable anvil for measuring gear's root diameters
  • High accuracy interchangeable anvils enable that reading does not have to be reset when changing anvils
  • Painted frame,Carbide-tipped measuring faces
  • Pipe combined frame for light weight and high rigidity(over 200mm/8"range)

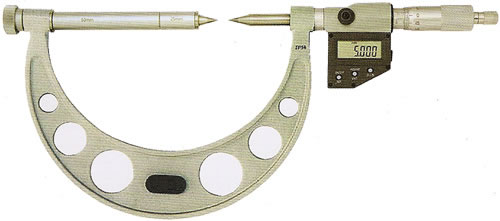

Digital point micrometer with adjustable anvil

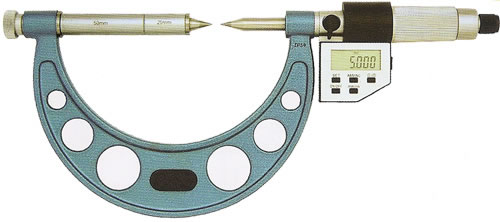

Digital point micrometer Type-A
Digital point micrometer with adjustable anvil
Digital point micrometer Type-B
  • Resolution: 0.01mm / 0.001"
Point micrometer with adjustable anvil

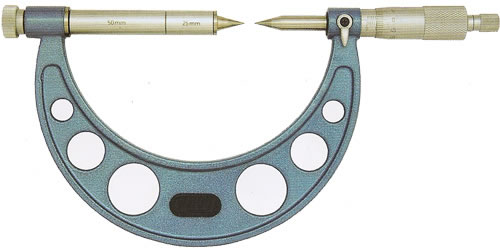

Point micrometers Type-C
Point micrometer
Point micrometers with adjustable anvil Type-C Type-A Type-B
Range Accuracy Point Range Accuracy Point
5-100mm / 0.2-4"0.005mm0.4mm 500-600mm / 20-24"0.015mm0.7mm
100-200mm / 4-8"0.007mm0.5mm 600-700mm / 24-28"0.016mm0.7mm
200-300mm / 8-12"0.009mm0.7mm 700-800mm / 28-32"0.018mm0.7mm
300-400mm / 12-16"0.011mm0.7mm 800-900mm / 32-36"0.020mm0.7mm
400-500mm / 16-20"0.013mm0.7mm

Point Micrometers

  • Protection level:IP54.
  • Criterion:DIN40050/IEC529 standard
  • Carbide measuring faces
  • Painted frame

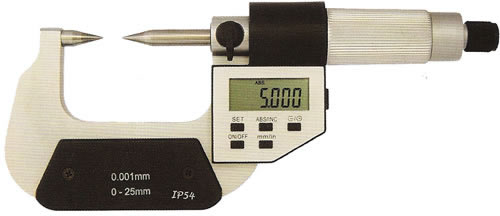

Point micrometer

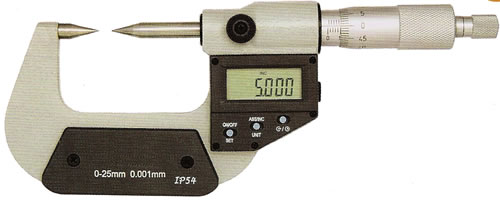

Digital point micrometer Type-D
Point micrometers
Digital point micrometer Type-E
  • Resolution: 0.01mm / 0.001".
Point micrometers

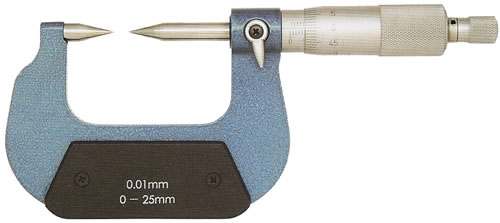

Point micrometers Type-F
Point micrometer
Point micrometers
Point micrometers Type-D Type-E Type-F
RangeAccuracyRangeAccuracy
0-25mm / 0-1"0.004mm 50-75mm / 2-3"0.005mm
25-50mm / 1-2"0.004mm 75-100mm / 3-4"0.005mm
Anvil's shape A,B is optional with consumer.
1" point micrometers, 2" point micrometer, 3" point micrometers, 4" point micrometer.

Single Point Micrometer

  • The features are the same as above.
Single point micrometer

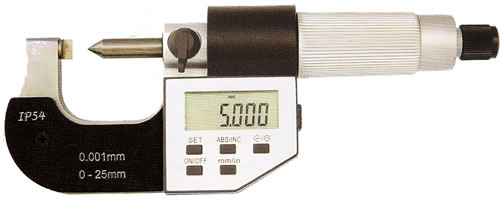

Digital point micrometer Type-G
Single point micrometer

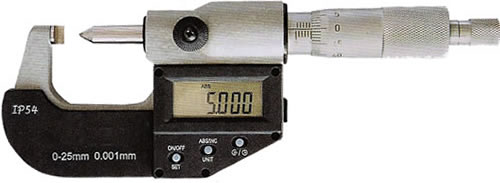

Digital point micrometer Type-H
  • The features are the same as above.
Single point micrometer

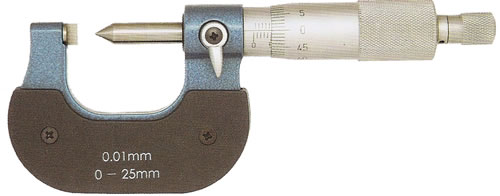

Point micrometers Type-J
Single point micrometers
Single point micrometers Type-G Type-H Type-J
RangeAccuracyRangeAccuracy

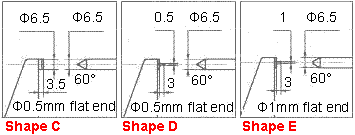

Shape C
0-25mm / 0-1"0.004mm 50-75mm / 2-3"0.005mm
25-50mm / 1-2"0.004mm 75-100mm / 3-4" 0.005mm
Shape DShape E
0-25mm / 0-1"0.004mm 0-25mm / 0-1"0.004mm
1" single point micrometers, 2" single point micrometer, 3" single point micrometers, 4" single point micrometer.
