Micrometer Heads

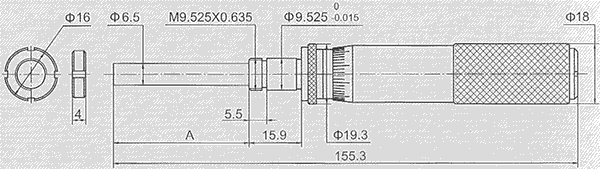

Micrometer Heads 0-25mm/1"

Micrometer heads
Type-A
  • Resolution: 0.01 mm / 0.001".
  • Accuracy: 0.003mm.
  • Without spindle lock.
Micrometer heads
Micrometer heads
Type B
Micrometer heads
Micrometer Heads 0-25mm/1" Type-A Type-B

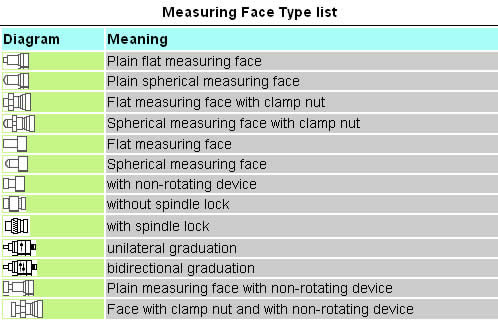

Type Face 1 Face 2 Face 3 Face 4
Include: Ratchet stop & Friction thimble & Ratchet friction thimble

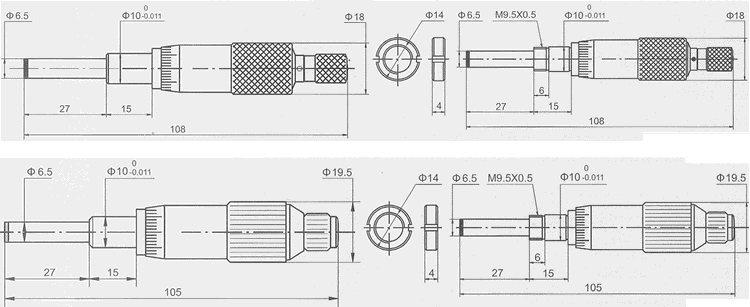

Micrometer heads
Type-C
  • Resolution: 0.01mm / 0.001" or 0.001mm / 0.0001".
Micrometer heads

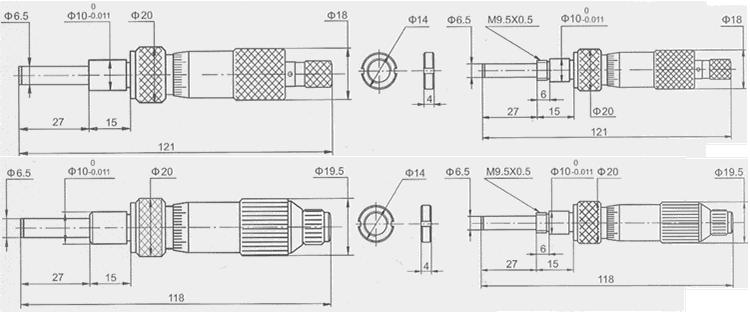

Micrometer heads
Type-D
  • Resolution: 0.01mm / 0.001" or 0.001mm / 0.0001".
Micrometer heads
Micrometer Heads 0-25mm/1" Type-C Type-D
Type Face 1 Face 2 Face 3 Face 4
Include: Ratchet stop & Without measuring force; Resolution: 0.01mm / 0.001" or 0.002mm / 0.0001"

Include: Ratchet stop & Without measuring force; Resolution: 0.01mm / 0.001" or 0.002mm / 0.0001"

Micrometer heads
Type-E
  • Resolution: 0.01mm / 0.001" or 0.002mm / 0.0001".
Micrometer heads

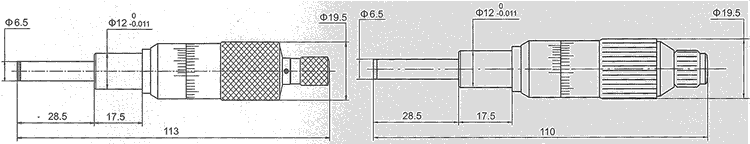

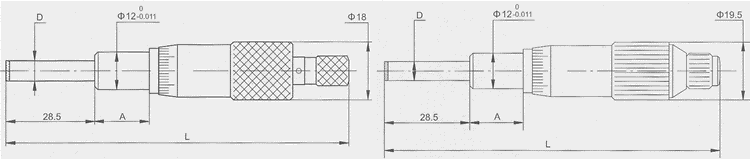

Micrometer Heads 0-25mm/1" Type-E
Ratchet stop Friction thimble Ratchet friction thimble
Face 5Face 5 Face 5Face 5 Face 5Face 5
A=17.5  D=Ø6.5;   A=20.5 D=Ø8 A=17.5  D=Ø6.5;   A=20.5 D=Ø8 A=17.5  D=Ø6.5;   A=20.5 D=Ø8
Resolution: 0.01mm / 0.001" & 0.002mm / 0.0001".   L=110mm,113mm,116mm.

Micrometer Heads 0-25mm/1" Non-rotating Spindle

Micrometer heads
Type-F
  • Resolution: 0.01mm / 0.001" or 0.002mm / 0.0001".
  • Accuracy: 0.003m
Micrometer heads
Micrometer Heads 0-25mm/1"
Ratchet stop Friction thimble Ratchet friction thimble
Face 5Face 5 Face 5Face 5 Face 5Face 5
Resolution: 0.01mm / 0.001" or 0.002mm / 0.0001"

Parallax Free Micrometer Heads 0-25mm/1"

Micrometer heads
Type-G
  • Resolution: 0.001mm / 0.0001".
  • Accuracy: 0.003m
Micrometer heads
Micrometer Heads 0-25mm/1"
Ratchet stop Friction thimble Ratchet friction thimble
Face 5Face 5 Face 5Face 5 Face 5Face 5

Micrometer Heads 0-25mm/1" 100 Step Graduation

  • Resolution: 0.01mm/0.0005".
  • Micrometer thread pitch:1mm
Micrometer heads
Type-H
Micrometer heads
Type-J
Micrometer heads

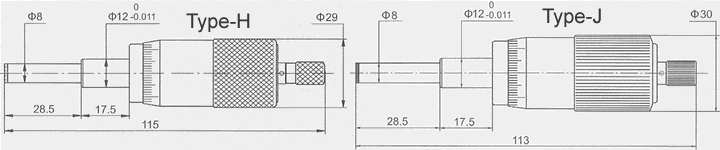

Graduation Micrometer Heads 0-25mm/1" 100 Step Type-H Type-J
RangeAccuracyType
0-25mm / 0-1" 0.004mm/0.00016" Face 5Face 6

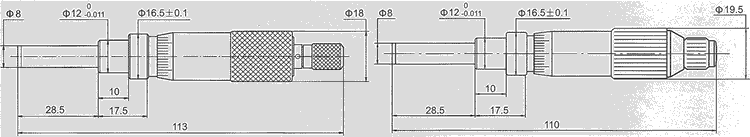

Micrometer Heads 0-25mm/1" Zero Adjusting (Fine reading)

  • Resolution: 0.001mm / 0.00005"; Accuracy: 0.003mm.
  • Floating thimble (graduation) can be adjusted with the spindle clamped ,allowing zero setting at any spindle position.
Micrometer heads
Type-K
Micrometer heads

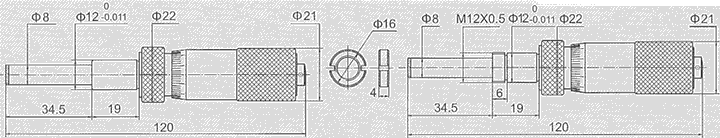

Micrometer Heads 0-25mm/1" with Locking Device

  • Resolution: 0.01mm / 0.001".
Micrometer heads
Type-L
Micrometer heads
Micrometer Heads 0-25mm/1" With Locking
RangeAccuracyType
0-25mm / 0-1" 0.004mm/0.00016" Face 5Face 5
Include:Without measuring force & Ratchet stop

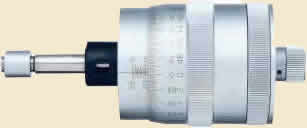

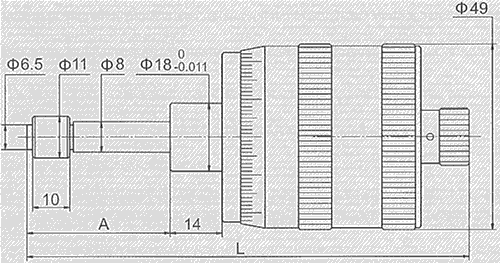

Micrometer Heads XY Plane (Fine reading)

  • Resolution: 0.002mm / 0.0001".
  • The large diameter thimble (Ø49mm) provides high resolution measurement.
  • Bidirectional graduation has different fonts for reading in both directions.
Micrometer heads
Type-M
Micrometer heads

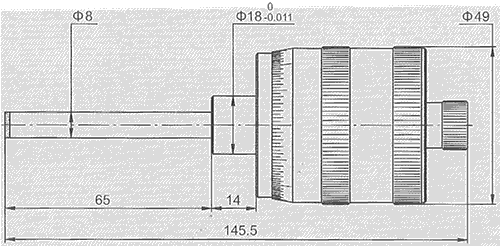

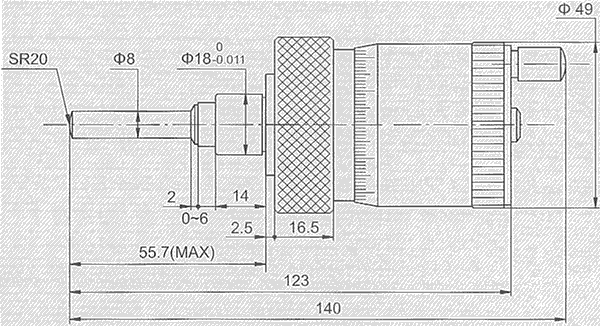

Micrometer Heads 0-25mm/1" XY Plane (Fine reading)
RangeAccuracyType
0-25mm/0-1" 0.003mm Face 5+Face 11 Face 5+Face 12 Face 7+Face 11 Face 7+Face 12 A=38.5 L=119
0-50mm/0-2" 0.005mm Face 5+Face 11 Face 5+Face 12 Face 7+Face 11 Face 7+Face 12 A=65 L=163

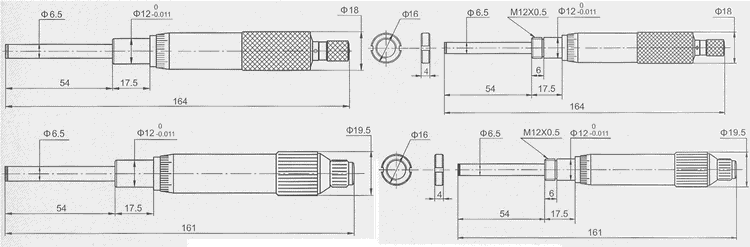

Micrometer Heads 0-50mm/2"

  • Resolution: 0.005mm / 0.0002".
  • Accuracy: 0.005mm.
  • Micrometer thread pitch: 1mm.Non-rotating spindle.
  • Flat & Carbide measuring face.
Micrometer heads
Type-N
Micrometer heads
  • Resolution: 0.01mm /0.001" or 0.001mm /0.0001".
Micrometer heads
Type-P
Micrometer heads
  • Resolution: 0.01mm / 0.001".
  • Accuracy: 0.005mm.
Micrometer heads
Type-Q
Micrometer heads
Micrometer Heads 0-50mm/2" Type-P
Ratchet stopFace 1Face 2 Face 3Face 4
Without measuring forceFace 1Face 2 Face 3Face 4

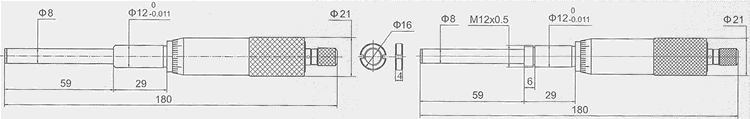

Micrometer Heads 0-50mm/2" Type-Q
Ratchet stopFace 1Face 2 Face 3Face 4
Friction thimbleFace 1Face 2 Face 3Face 4
Ratchet friction thimbleFace 1Face 2 Face 3Face 4

Micrometer Heads 0-50mm/0-2" 100 Step Graduation

  • Resolution: 0.01mm / 0.0005".
  • Accuracy: 0.003mm.
  • Micrometer thread pitch: 1mm
Micrometer heads
Type-R
Micrometer heads
Micrometer Heads 0-50mm/2"
Ratchet stop Face 5 Face 6
Ratchet friction thimble Face 5 Face 6

Micrometer Heads 0-50mm/2" with Locking Device

  • Resolution: 0.01mm / 0.001".
  • Accuracy: 0.005mm.
Micrometer heads
Type-S
Micrometer heads
Micrometer Heads 0-50mm/2" With Locking
Ratchet stopFace 1Face 3
Without measuring forceFace 1 Face 3
Reference:
Digital micrometer headMicrometer headSpecial micrometer heads
