Micrometer head

Differential Micrometer Head 0-2.5mm/0-0.1" (Fine Adjusting)

Micrometer head
Type-A
  • Non-rotating spindle
  • It moves 0.05mm as the thimble turns a circle, available to measure with high-resolution.
  • Carbide measuring face.
Micrometer head
Differential micrometer head 0-2.5mm/0.1"
Accuracy Accuracy
Resolution Full length    within 0.05mm    Resolution Full length     within 0.05mm
0.001mm / 0.00005" 0.005mm 0.0015mm 0.0001mm/0.000005" 0.005mm 0.0015mm
0.001mm / 0.00005" 0.007mm 0.0030mm 0.0001mm/0.000005" 0.007mm 0.0030mm

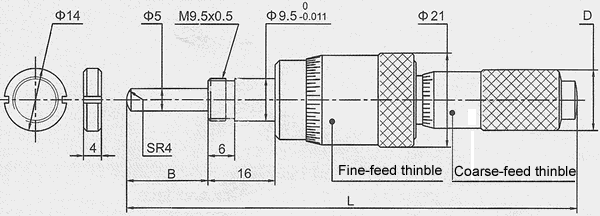

Differential Micrometer Head 0-25mm/0-1" (Fine Reading)

Micrometer head
Type-B
  • Double-thimble mechanism allows coarse and fine feeding to be performed independently.
  • Feed accuracy is high.Fine-feed value: 0.2mm.
  • Resolution of Fine-feed thimble: 0.0005mm / 0.00002".
  • Resolution of Coarse-feed thimble: 0.02mm / 0.001".
Micrometer head
  Differential Micrometer head (Fine Reading) 0-25mm/1"
Accuracy
RangeCoarseFine Type
0-13mm / 0-0.5" 0.003mm 0.0015mm
Face 5
Face 6
0-13mm / 0-0.5" 0.003mm 0.0030mm
Face 5
Face 6
0-25mm / 0-1" 0.003mm 0.0015mm
Face 5
Face 6
0-25mm / 0-1"0.003mm 0.0030mm
Face 5
Face 6

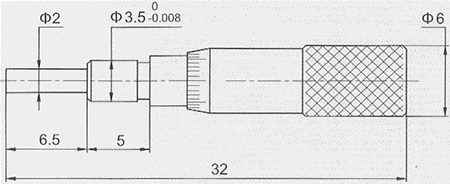

Micrometer Head 0-5mm/0-0.2"

Micrometer head
Type-C
  • Resolution: 0.02mm / 0.001".
Micrometer head
Micrometer head 0-5mm/0.2"
Range Accuracy Type
0-5mm / 0-0.2" 0.005mm
Face 5
Face 6

0-6.5mm/0-0.25" Micrometer Head

  • Resolution: 0.01mm / 0.001".
Micrometer head

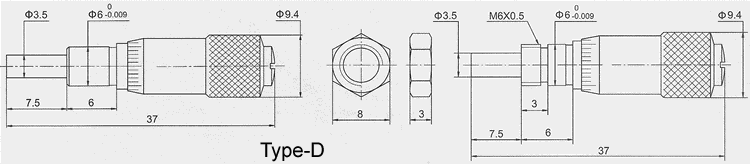

Type-D
  • Resolution: 0.01mm / 0.001".
Micrometer head

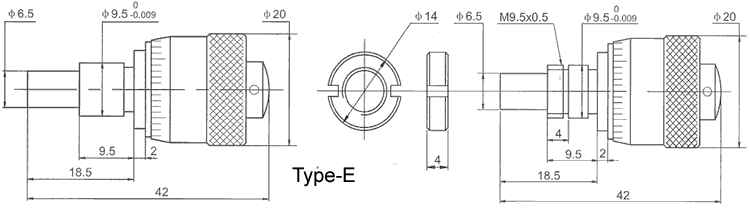

Type-E
  • Resolution: 0.005mm / 0.0002".
  • Micrometer thread pitch: 0.25mm.
Micrometer head

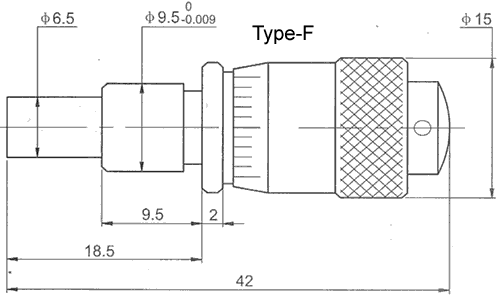

Type-F
Micrometer head
Micrometer head
Micrometer head
Micrometer head 0-6.5mm/0.25"Type-D Type-E
Range Accuracy Type
0-6.5mm / 0-0.25" 0.005mm
Face 1
Face 2
Face 3
Face 4
Micrometer head 0-6.5mm/0.25" Type-F
Range Accuracy Type
0-6.5mm / 0-0.25" 0.005mm
Face 5
Face 6

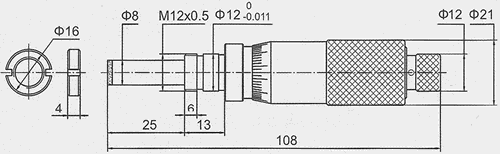

Micrometer Head 0-13mm/0-0.5"

  • • Resolution: 0.01mm / 0.001". Accuracy: 0.004mm.
Micrometer head

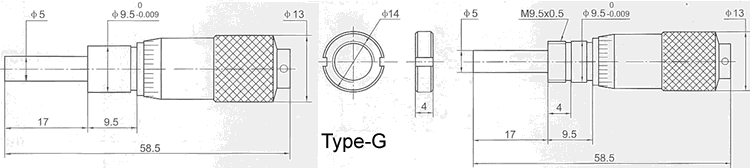

Type-G
Micrometer head
Type-H
Micrometer head
Micrometer head
Micrometer head 0-13mm/0.5" Type-G Type-H
Type Face 1+Face 9 Face 2+Face 9 Face 3+Face 9 Face 4+Face 9
Type Face 1+Face 10 Face 2+Face 10 Face 3+Face 10 Face 4+Face 10

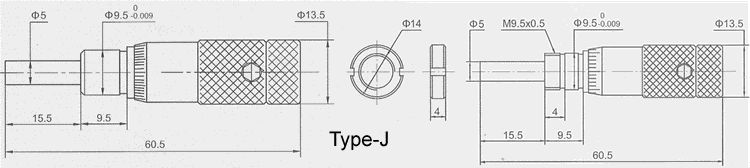

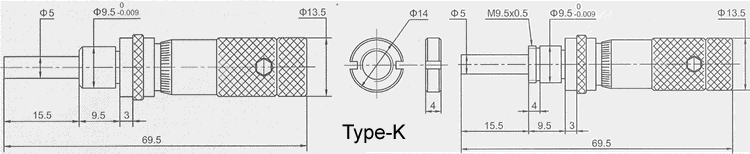

Micrometer Head with Variable Zero-Setting 0-13mm/0-0.5"

  • Resolution: 0.01mm / 0.001". Accuracy: 0.004mm.
Micrometer head
Type-J
Micrometer head
Type-K
Micrometer head
Micrometer head
Micrometer head 0-13mm/0.5" Type-J Type-K
Type Face 1+Face 9 Face 2+Face 9 Face 3+Face 9 Face 4+Face 9
Type Face 1+Face 10 Face 2+Face 10 Face 3+Face 10 Face 4+Face 10

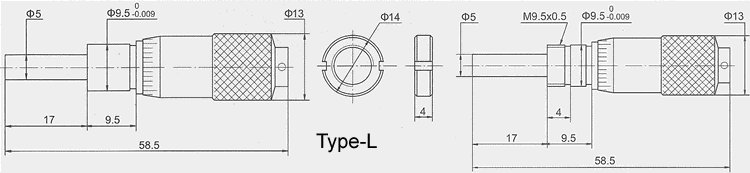

Fine Reading Micrometer Head 0-13mm/0-0.5"

  • Resolution: 0.005mm / 0.0002".
  • Micrometer thread pitch: 0.25mm.
Micrometer head
Type-L
Micrometer head
Micrometer head 0-13mm/0.5"
  Range Accuracy Type
0-13mm / 0-0.5" 0.004mm Face 1 Face 2 Face 3 Face 4

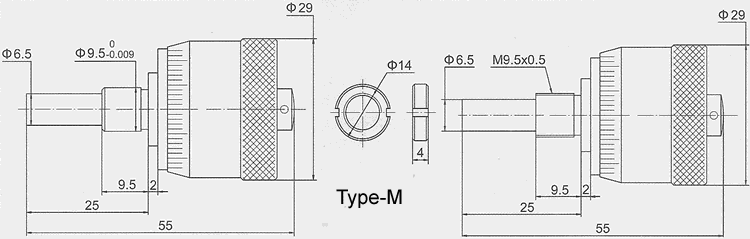

Large Diameter Thimble Micrometer Head 0-13mm/0-0.5"

  • Resolution: 0.01mm / 0.001".
Micrometer head
Type-M
Micrometer head
Large diameter thimble micrometer head 0-13mm/0.5"
RangeAccuracyType
0-13mm / 0-0.5" 0.004mm Face 1 Face 2 Face 3 Face 4

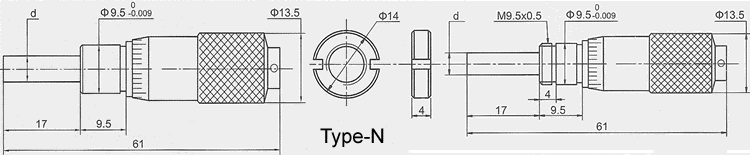

Micrometer Head 0-15mm/0-0.6"

  • Resolution: 0.01mm / 0.001".
  • Accuracy: 0.004mm.
Micrometer head
Type-N
Micrometer head

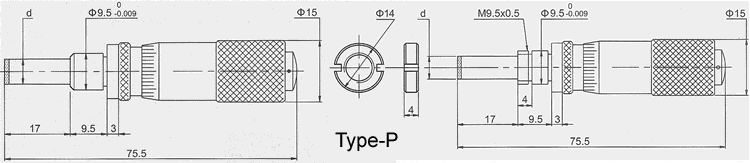

Type-P
Micrometer head
Micrometer head
Micrometer 0-15mm/0.6" head Type-N
Type Face 1+Face 9 Face 2+Face 9 Face 3+Face 9 Face 4+Face 9
Micrometer 0-15mm/0.6" head Type-P
Type Face 1+Face 10 Face 2+Face 10 Face 3+Face 10 Face 4+Face 10

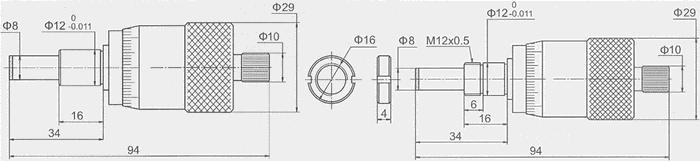

Micrometer Head (100 Step Graduation) 0-15mm/0-0.6"

  • Resolution: 0.01mm / 0.001".
  • Micrometer thread pitch: 1mm.
Micrometer head
Type-Q
Micrometer head
100 Step graduation micrometer head 0-15mm/0.6"
AccuracyType
0.004mm Face 1 Face 2 Face 3 Face 4
Reference:
Digital micrometer headMicrometer headsSpecial micrometer heads
