Measurement Table
Measurement Table (with Granite Base)

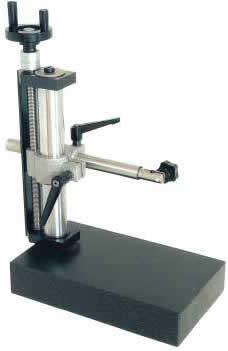

Measurements table
The base of measuring table made up of natural granite.The measuring surface is corrosion-free,anti-magnetic and harder than steel.
The flatness of the measuring surface is according to DIN876/00.
Measuring table with a precision-threaded spindle and graduation (resolution:0.01mm) for easy lift or drop of column of the cross arm.
Measurements table sketch
Measurements table (with granite base)
Measuring range:
0-160mm
Overhang:
200mm
Measuring area:
150X250mm
Column diameter:
Ø35mm
Column diameter of the cross arm:
Ø20mm
Adapter hole for dial gauge:
Ø8mm(3/8)”
Measurement Tables (with Fine Cast Base)
Adjustable-A Measurement tables
Adjustable-B Measurement tables
Measurement tables sketch
The flatness of the measuring face is conforming with DIN 876/00.
Column diameter: Ø35mm.
Quadrate and round measuring blocks are optional.
Round measuring blocks
