Large Micrometers

Our large micrometer is designed to provide convenience to our clients by featuring adjustable anvils that expand the measuring range of the micrometer.

Large Outside Micrometer 800-900mm / 32-36"

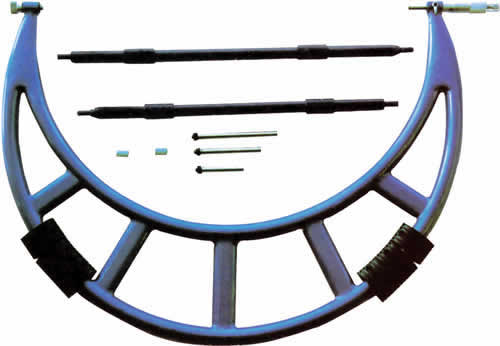

Large Micrometer with Adjustable Anvil

Large micrometer Type-A
  • Wide measuring range with adjustable anvil.
  • Standard collars: Within 1000mm/40": 25mm/1",50mm/2"; Over 1000mm/40": 50mm/2",100mm/4".
  • Carbide measuring faces;Pipe combined frame.
  • Resolution:0.01mm / 0.001".

Large micrometer with adjustable anvil Type-A

Travel of micrometer head: 25mm/1″:Micrometer thread pitch: 0.5mm/0.025″.

Range Accuracy (mm)
300-400mm / 12-16" 0.011mm
400-500mm / 16-20" 0.015mm
500-600mm / 20-24" 0.015mm
600-700mm / 24-28" 0.016mm
700-800mm / 28-32" 0.018mm
800-900mm / 32-36" 0.020mm
900-1000mm / 36-40" 0.020mm
Travel of micrometer head: 50mm/1″; Micrometer thread pitch: 1mm/0.05″.
Range Accuracy (mm)
1000-1200mm / 40-48" 0.020mm
1200-1400mm / 48-56" 0.024mm
1400-1600mm / 56-64" 0.028mm
1600-1800mm / 64-72" 0.031mm
1800-2000mm / 72-80" 0.034mm
2000-2200mm / 80-88" 0.040mm
2200-2400mm / 88-96" 0.044mm
2400-2600mm / 96-104" 0.048mm
2600-2800mm / 104-112" 0.052mm
2800-3000mm / 112-120" 0.056mm

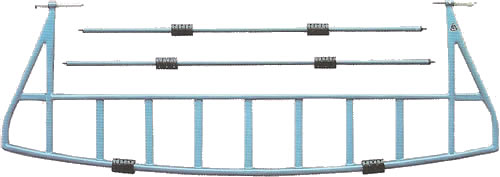

Large Micrometer with Adjustable Anvil (Caliper Type)

Large micrometer Type-B
  • Similar to caliper in outside measurement
  • Caliper-type pipe combined frame for light weight and high rigidity.
  • Wide measuring range with adjustable anvil.High accuracy standard collars enable that reading does not have to be reset when changing collars.
  • Travel of micrometer head: 50mm/2";Micrometer thread pitch: 1mm/0.025";Throat depth:350mm/14".
  • Standard collars: 50mm/2",100mm/4".
  • Carbide measuring faces;Ratchet stop.
  • Resolution:0.01mm / 0.001".

Large micrometer with adjustable anvil Type-B

Travel of micrometer head: 50mm/2″:Micrometer thread pitch:1mm/0.05″.

Range Accuracy (mm)
900-1000mm / 36-40" 0.020mm
900-1000mm / 36-40" 0.020mm
900-1000mm / 36-40" 0.020mm
900-1000mm / 36-40" 0.020mm
900-1000mm / 36-40" 0.020mm
900-1000mm / 36-40" 0.020mm
900-1000mm / 36-40" 0.020mm
900-1000mm / 36-40" 0.020mm
900-1000mm / 36-40" 0.020mm
900-1000mm / 36-40" 0.020mm

Large Micrometers with Interchangeable Anvils

Large micrometers Type-C
  • Pipe combined frame
  • Resolution:0.01mm / 0.001".

Large micrometers with interchangeable anvils Type-C

Range Accuracy (mm)
900-1000mm / 36-40" 0.020mm
900-1000mm / 36-40" 0.020mm
900-1000mm / 36-40" 0.020mm
900-1000mm / 36-40" 0.020mm
900-1000mm / 36-40" 0.020mm
900-1000mm / 36-40" 0.020mm
900-1000mm / 36-40" 0.020mm
900-1000mm / 36-40" 0.020mm
900-1000mm / 36-40" 0.020mm
900-1000mm / 36-40" 0.020mm
Frequently asked questions:
Long Jaw Caliper
Range: up to 5000mm / 200".
Large Vernier Caliper
Range: up to 9600mm.
Pi Tape / Diameter Tape
Range: up to 9600mm.
Large Diameter Bore gauge
Range: up to 1500mm / 60".
Large Digital Caliper
Range: up to 4000mm / 160".
Standard collar
Range: up to 4000mm / 160".
