Large Anvil Micrometer
Large anvil for measuring tooth width of side milling cutter.
Protection level: IP54.
Criterion: DIN40050/IEC529 standard.
Carbide measuring faces.
Painted frame.

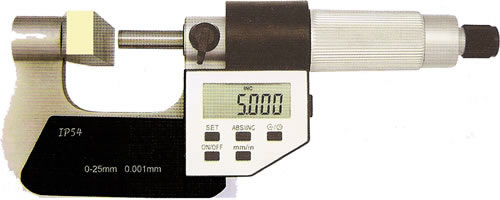

Large anvil micrometer Type-A

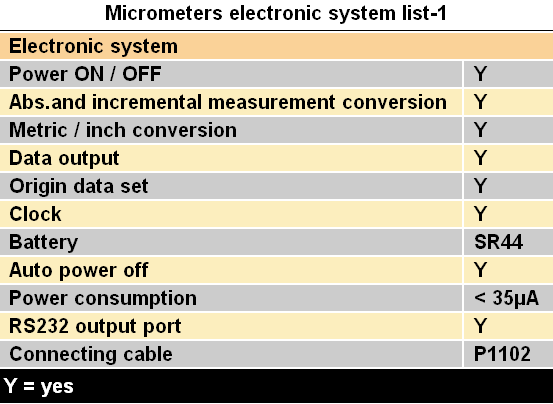

Electronic system

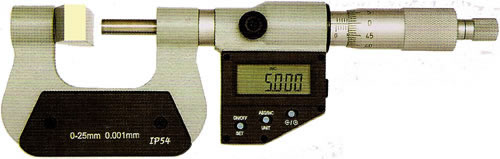

Large anvil micrometer Type-B

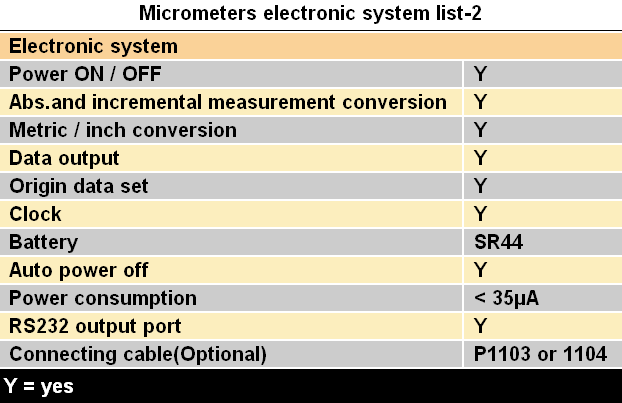

Electronic system
Carbide measuring faces.
Painted frame.

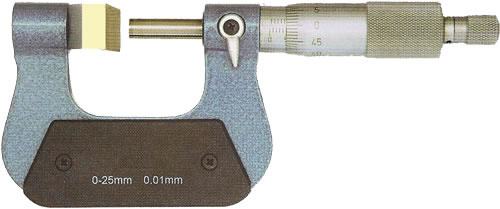

Large anvil micrometers Type-C
Large anvil micrometers Type-A Type-B Type-C
Range
Accuracy
A
Range
Accuracy
A
0-25mm / 0-1"
0.004mm
50mm
25-50mm / 1-2"
0.004mm
60mm
1" large anvil micrometers,2" large anvil micrometers.
