Disc Micrometer

Digital Disc Micrometer (Non-Rotating Spindle)

  • Non-rotating spindle.
  • Disk measuring faces for measuring length of gears common normal and paper thickness.
  • Type-A: Painted frame; Type-B: Chrome-plated frame.

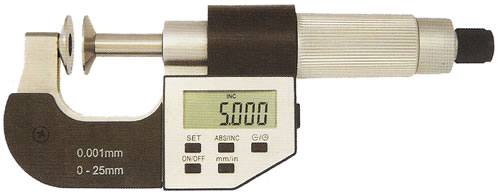

Disk micrometer Type-A
Disc Micrometer Type-B
Digital disc micrometer (Non-rotating spindle) Type-A Type-B
Range Accuracy
0-25mm / 0-10.004mm
100-125mm / 4-50.006mm
25-50mm / 1-20.004mm
125-150mm / 5-60.006mm
50-75mm / 2-30.005mm
150-175mm / 6-70.007mm
75-100mm / 3-40.005mm
175-200mm / 7-80.007mm

Disc Micrometer (Non-Rotating Spindle)

  • Non-rotating spindle; Resolution: 0.01mm / 0.0001".
  • Disk measuring faces for measuring length of gears common normal and paper thickness.
  • Type-D: Large disc measuring face,disc diameter Ø60mm.

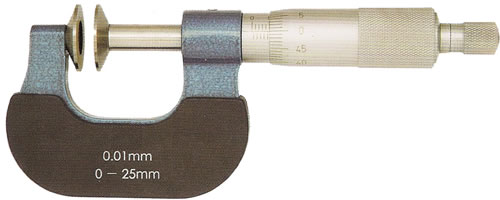

Disk micrometer Type-C

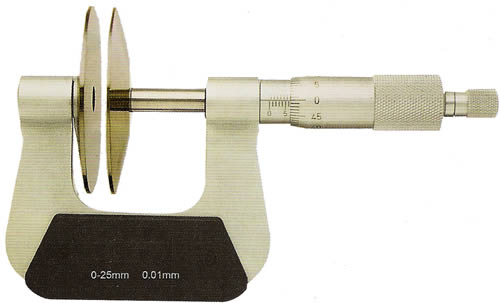

Disc Micrometer Type-D
Disc micrometer (Non-rotating spindle) Type-C
Range Accuracy
0-25mm / 0-10.004mm
100-125mm / 4-50.006mm
25-50mm / 1-20.004mm
125-150mm / 5-60.006mm
50-75mm / 2-30.005mm
150-175mm / 6-70.007mm
75-100mm / 3-40.005mm
175-200mm / 7-80.007mm
1 disk micrometer 2 disk micrometer 3 disk micrometer 4 disk micrometer 5 disk micrometer 6 disk micrometer 7 disk micrometer 8 disk micrometer.
Disc micrometer(Non-rotating spindle) Type-D
Range Accuracy
0-25mm / 0-10.008mm
50-75mm / 2-30.010mm
25-50mm / 1-20.008mm
75-100mm / 3-40.010mm
1 disk micrometer 2 disk micrometer 3 disk micrometer 4 disk micrometer

Disc Micrometer (Common)

  • Disk measuring faces for measuring length of gears common normal and paper thickness.
  • Protection level: IP54.
  • Criterion: DIN40050/IEC529 standard.
  • Chrome-plated frame.
  • Resolution:0.01mm / 0.0001".
  • Disk measuring faces for measuring length of gears common normal and paper thickness.
  • Resolution: 0.01mm / 0.0001".

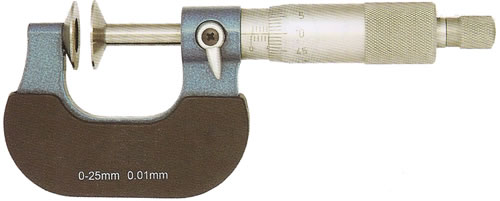

Disk micrometer Type-E

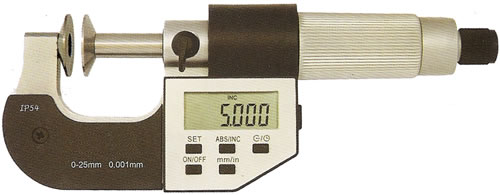

Disc Micrometer Type-F
Disc micrometer Type-E Type-F
Range Accuracy
0-25mm / 0-10.004mm
100-125mm / 4-50.006mm
25-50mm / 1-20.004mm
125-150mm / 5-60.006mm
50-75mm / 2-30.005mm
150-175mm / 6-70.007mm
75-100mm / 3-40.005mm
175-200mm / 7-80.007mm
1 disk micrometer 2 disk micrometer 3 disk micrometer 4 disk micrometer 5 disk micrometer 6 disk micrometer 7 disk micrometer 8 disk micrometer.
