Digital Micrometer Head

Thinner blade anvil for effective measurement of narrow slots.

  • Protection level: IP54.
  • Resolution of digit: 0.001mm / 0.00005";
  • (For Type-A) Resolution of micrometer heads:0.01mm / 0.0001"

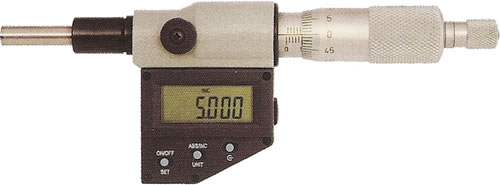

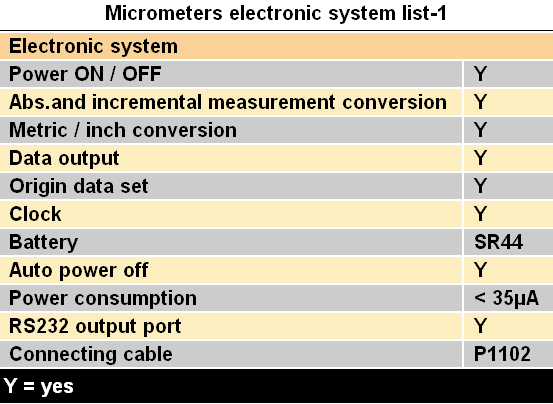

Digital micrometer heads - Electronic System Type-A

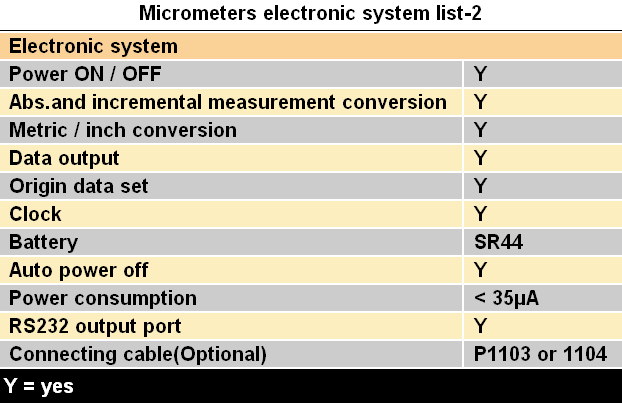

Digital micrometer heads - Electronic System Type-B

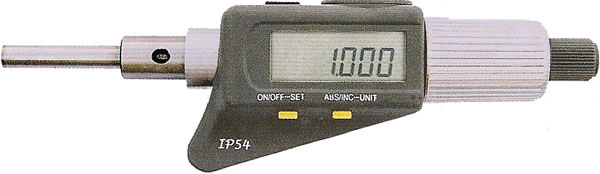

Digital micrometer head Type-A
Range Accuracy D A C L
0-25mm / 0-1"0.003mmØ6.517.528.547
0-50mm / 0-2"0.005mmØ8.035.55371.5

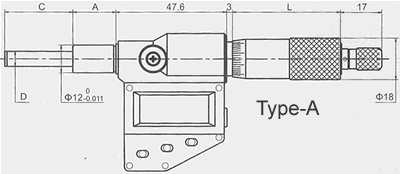

Type-A

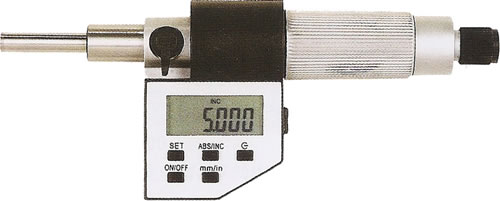

Digital micrometer head Type-B
Range Accuracy D A C L
0-25mm / 0-1"0.003mm17.5Ø6.5153.5
20.5Ø8.0156.5

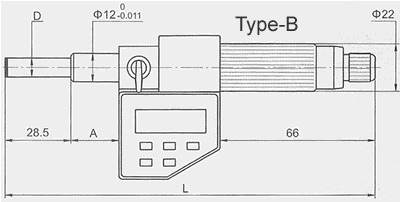

Type B

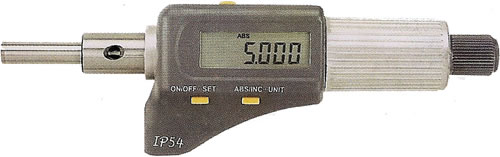

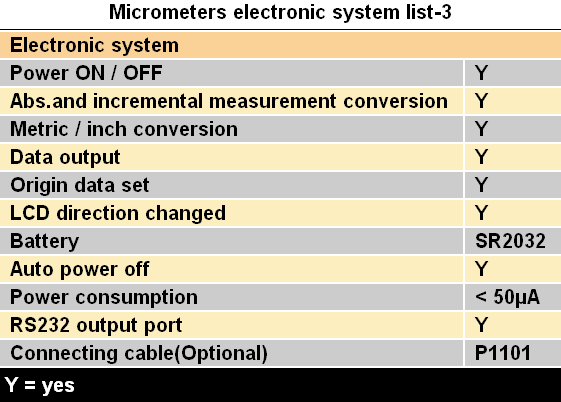

Digital micrometer heads - Electronic System Type-C
  • Protection level: IP54.
  • Resolution: 0.001mm / 0.00005".;
  • Double display , LCD direction can be changed by key.
  • Direction of display changing key. Pressing this key will turn on back
  • LCD,reverse display and normal display (turn off back LCD).

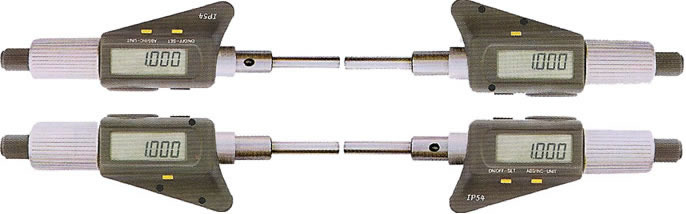

Digital micrometer head Type-C
Range Accuracy D A C L
0-30mm / 0-1.2"0.003mm17.5Ø6.534159
20.5Ø8.034162
0-50mm / 0-2"0.005mm35.5Ø6.553196

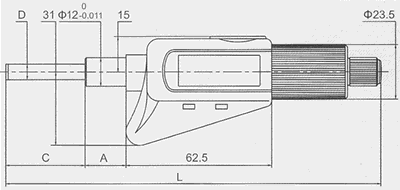

Type C
Digital micrometer heads - Electronic System Type-D
  • Protection level: IP54.
  • Resolution: 0.001mm / 0.00005".
Digital micrometer head Type-D
Range Accuracy D A C L
0-25mm / 0-1"0.003mm17.5Ø6.5144
20.5Ø8.0147

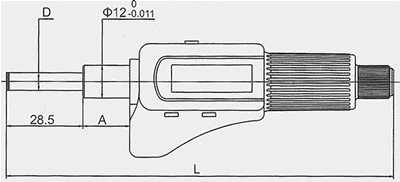

Type D

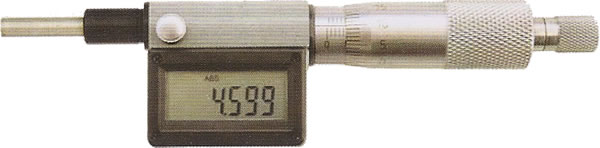

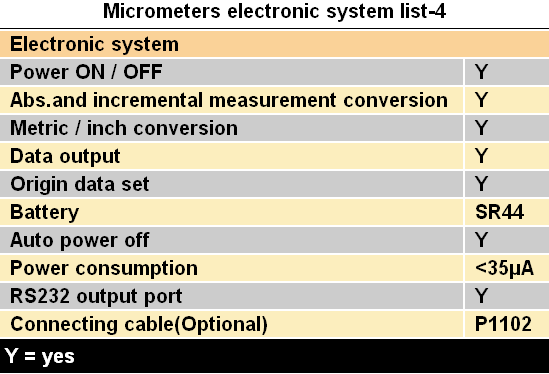

Digital micrometer heads - Electronic System Type-E
  • Protection level: IP54.
  • Resolution of digit: 0.001mm / 0.00005";
  • Resolution of micrometer heads: 0.01mm / 0.0001".

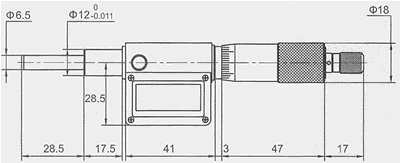

Digital micrometer head Type-E
Range Accuracy
0-25mm / 0-1"0.003mm
Type D
Reference:
Micrometer headMicrometer heads
