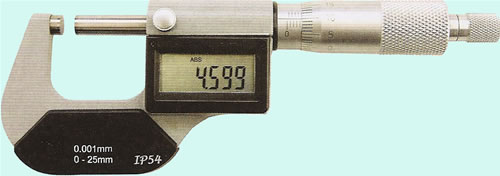

Digital Micrometer (Three Key)

  • Protection level: IP54(Type-A) and IP65(Type-B).
  • Display data is origin data of absolute measurement after turning on/off.
  • Criterion: DIN863/1, DIN40050/IEC529 standard.
  • Carbide measuring faces;Painted frame.
  • Resolution of digit: 0.001mm / 0.00005".
  • Resolution of micrometer heads: 0.01mm / 0.0001".

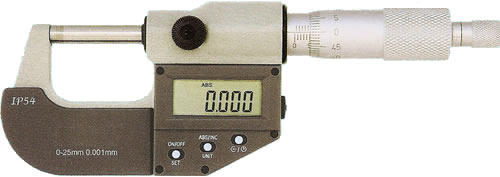

Digital micrometer Type-A
Range Accuracy (mm)
0-25mm / 0-1" ±0.002mm
25-50mm / 1-2" ±0.002mm
50-75mm / 2-3" ±0.003mm
75-100mm / 3-4" ±0.003mm
100-125mm / 4-5" ±0.003mm
125-150mm / 5-6" ±0.003mm
150-175mm / 6-7" ±0.004mm
175-200mm / 7-8" ±0.004mm
200-225mm / 8-9" ±0.004mm
225-250mm / 9-10" ±0.004mm
250-275mm / 10-11" ±0.005mm
275-300mm / 11-12" ±0.005mm

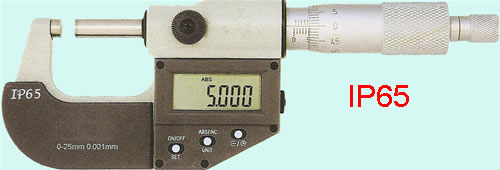

Digital micrometer Type-B
Range Accuracy (mm)
0-25mm / 0-1" ±0.001mm
25-50mm / 1-2" ±0.001mm
50-75mm / 2-3" ±0.001mm
75-100mm / 3-4" ±0.002mm
100-125mm / 4-5" ±0.002mm
125-150mm / 5-6" ±0.002mm
150-175mm / 6-7" ±0.003mm
175-200mm / 7-8" ±0.003mm
200-225mm / 8-9" ±0.004mm
225-250mm / 9-10" ±0.004mm
250-275mm / 10-11" ±0.005mm
275-300mm / 11-12" ±0.005mm

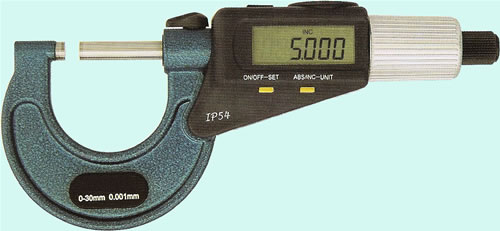

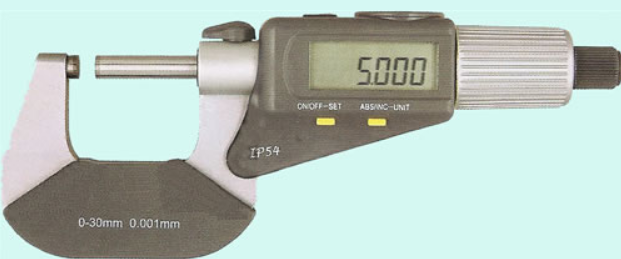

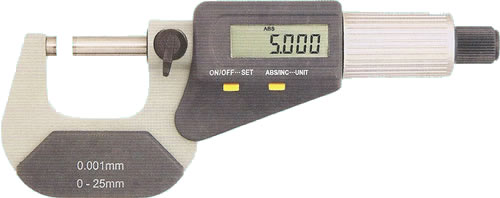

Double Display Digital Micrometers (Two Key)

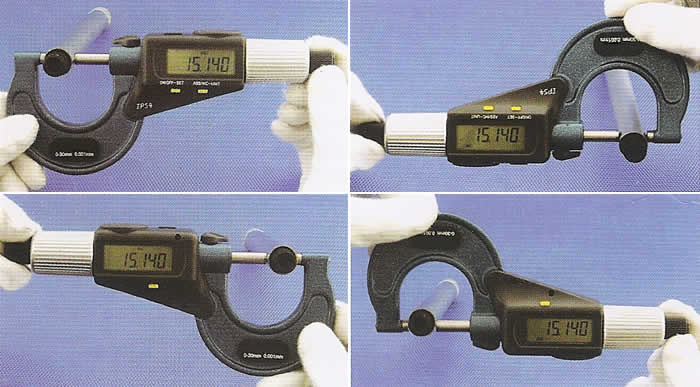

  • Double display in front and back. LCD direction can be changed by key for easy reading in all kinds of measuring condition and left or right
  • Protection level: IP54.
  • Display data is origin data of absolute measurement after turning on/off.
  • Criterion: DIN863/1, DIN40050/IEC529 standard.
  • Carbide measuring faces.
  • Travel of micrometer head: 30mm.
  • Resolution of digit: 0.001mm / 0.00005".

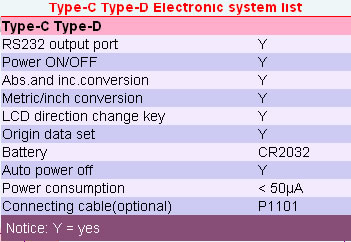

Digital micrometer Type-C
Digital micrometer Type-D
Range Accuracy (mm)
0-30mm / 0-1.2" 0.004mm
25-55mm / 1-2.2" 0.004mm
50-80mm / 2-3.2“ 0.005mm
75-105mm / 3-4.2" 0.005mm
100-130mm / 4-5.2" 0.006mm
125-155mm / 5-6.2" 0.006mm
150-180mm / 6-7.2" 0.007mm
175-205mm / 7-8.2" 0.007mm

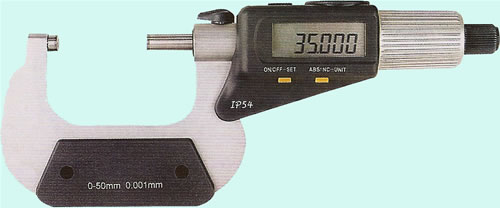

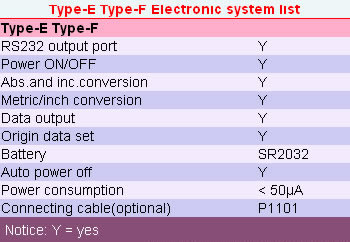

Electronic Micrometer (Travel of Head:50mm)

  • Protection level: IP54.
  • Carbide measuring faces;fine cast frame(Type-F).
  • Resolution of digit: 0.001mm/0.00005".
  • Double display LCD direction can be changed by key for easy reading in all kinds of measuring condition and left or right
  • Type-E travel of micrometer head: 50mm. Non-Rotating spindle. Type-F travel of micrometer head: 30mm.
  • Criterion: DIN863/1, DIN40050/IEC529 standard(Type-E).
Digital micrometer Type-E
Range Accuracy (mm)
0-50mm / 0-2" ±0.003mm
50-100mm / 2-4" ±0.003mm
100-150mm / 4-6" ±0.004mm
150-200mm / 6-8" ±0.004mm
Digital micrometer Type-F
Range Accuracy (mm)
0-30mm / 0-1.2" 0.004mm
20-50mm / 0.8-2" 0.004mm
45-75mm / 1.8-3" 0.005mm
70-100mm / 2.8-4" 0.005mm
95-125mm / 3.8-5" 0.006mm
120-150mm / 4.8-6" 0.006mm
145-175mm / 5.8-7" 0.007mm
170-200mm / 6.8-8" 0.007mm
195-225mm / 7.8-9" 0.008mm
220-250mm / 8.8-10" 0.008mm
245-275mm / 9.8-11" 0.009mm
270-300mm / 10.8-12" 0.009mm

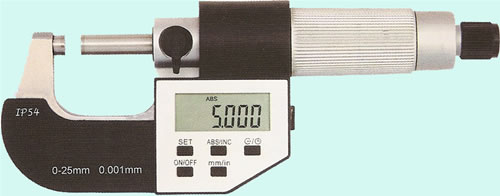

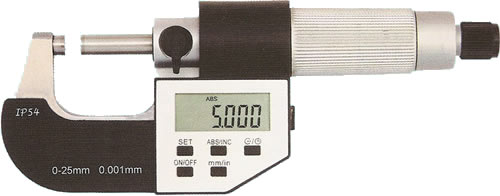

Electronic Digital Micrometer (Five Key)

  • Protection level: IP54.
  • Display data is origin data of absolute measurement after turning on/off.
  • Carbide measuring faces. Chrome-plated frame or fine cast frame.
  • Carbide measuring faces.
  • Criterion: DIN863/1, DIN40050/IEC529 standard.
  • Resolution: 0.001mm / 0.00005".
Digital micrometer Type-G
Range Accuracy (mm)
0-25mm / 0-1" ±0.002mm
25-50mm / 1-2" ±0.002mm
50-75mm / 2-3" ±0.003mm
75-100mm / 3-4" ±0.003mm
100-125mm / 4-5" ±0.003mm
125-150mm / 5-6" ±0.003mm
150-175mm / 6-7" ±0.004mm
175-200mm / 7-8" ±0.004mm

Micrometer Screw Gauge (Single Key)

  • Protection level: IP54.
  • Display data is origin data of absolute measurement after turning on/off.
  • Chrome-plated frame or fine cast frame.
  • Carbide measuring faces.
  • Criterion: DIN863/1, DIN40050/IEC529 standard.
  • Resolution: 0.001mm / 0.00005".
Digital micrometer Type-H
Range Accuracy
0-25mm / 0-1" ±0.002mm
25-50mm / 1-2" ±0.002mm
50-75mm / 2-3" ±0.003mm
75-100mm / 3-4" ±0.003mm
100-125mm / 4-5" ±0.003mm
125-150mm / 5-6" ±0.003mm
150-175mm / 6-7" ±0.004mm
175-200mm / 7-8" ±0.004mm
225-250mm / 9-10" ±0.004mm
250-275mm / 10-11" ±0.005mm
275-300mm / 11-12" ±0.005mm

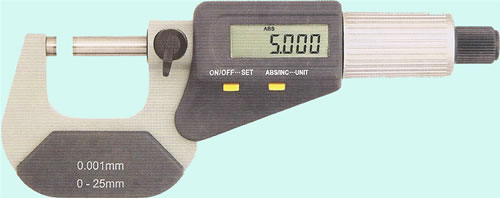

Digimatic Micrometer (Single and Double Key)

  • Easy operation.
  • Display data is origin data of absolute measurement after turning on/off.
  • Carbide measuring faces.Painted frame.
  • Criterion: DIN863/1, DIN40050/IEC529 standard.
  • Resolution: 0.001mm / 0.00005".
Digital micrometer Type-J
Digital micrometer Type-K
Range Accuracy
0-25mm / 0-1" ±0.002mm
25-50mm / 1-2" ±0.002mm
50-75mm / 2-3" ±0.003mm
75-100mm / 3-4" ±0.003mm
100-125mm / 4-5" ±0.003mm
125-150mm / 5-6" ±0.003mm
150-175mm / 6-7" ±0.004mm
175-200mm / 7-8" ±0.004mm

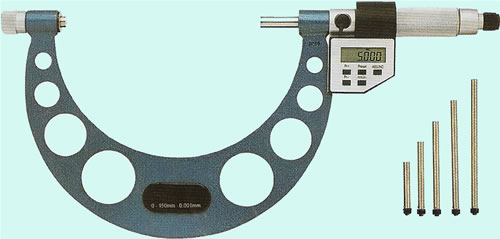

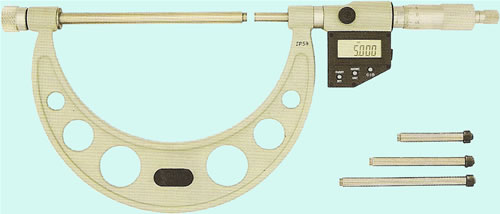

Micrometer Screw Gage (Interchangeable Anvils)

  • Wide measuring range with interchangeable anvils.High accuracy interchangeable anvils enable that reading does not have to reset when changing anvils.
  • Carbide measuring faces.
  • Painted and fine cast frame
  • Pipe combined frame for light weight and high rigidity(over 300mm/12").
Digital micrometer Type-L
Digital micrometer Type-M
Range Accuracy
0-50mm / 0-2" ±0.002mm
50-100mm / 2-4" ±0.003mm
0-100mm / 0-4" ±0.003mm
0-150mm / 0-6" ±0.003mm
100-200mm / 4-8" ±0.003mm
150-300mm / 6-12" ±0.005mm
200-300mm / 8-12" ±0.005mm
300-450mm / 12-18" ±0.006mm
300-400mm / 12-16" ±0.006mm
450-600mm / 18-24" ±0.007mm
400-500mm / 16-20" ±0.007mm
600-750mm / 24-30" ±0.009mm
500-600mm / 20-24" ±0.007mm
750-900mm / 30-36" ±0.010mm
600-700mm / 24-28" ±0.008mm
900-1050mm / 36-42" ±0.010mm
700-800mm / 28-32" ±0.009mm
800-900mm / 32-36" ±0.010mm
900-1000mm / 36-40" ±0.010mm
Reference:
Digital Micrometer SetMicrometer standardStandard collarOutside Micrometer
