Deep Throat Micrometer

Deep throat micrometer can be used for measuring thickness of sheet metal,paper and sheet plastic.

  • Protection level: IP54.
  • Criterion: DIN40050/IEC529 standard .
  • Carbide measuring faces.
  • Painted frame.

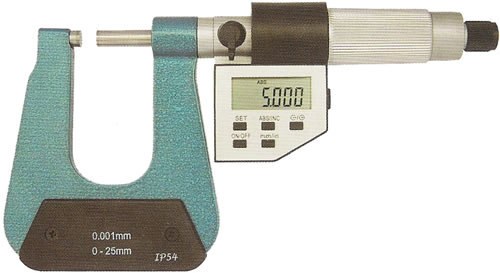

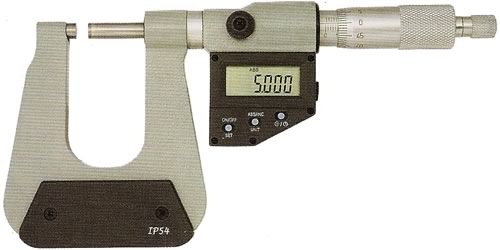

Deep throat micrometer - Electronic System Type-A
Deep throat micrometer - Electronic System Type-B
  • Carbide measuring faces.
  • Painted frame.

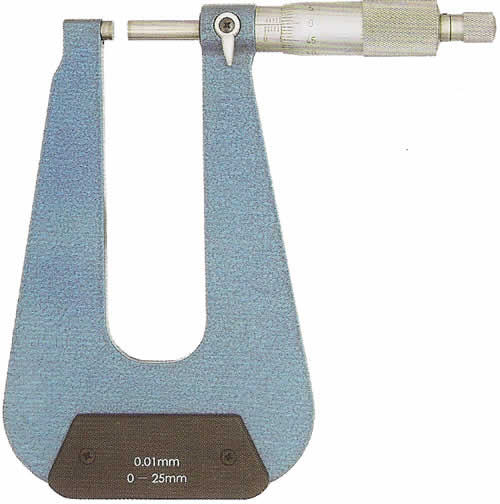

Deep throat micrometer Type-C
Deep throat micrometers picture
The anvils of Deep throat micrometers sketch
Deep throat micrometers list-1 Type-A Type-B Type-C
Range Accuracy
Throat depth: 50mm
0-25mm / 0-1"0.003mm
25-50mm / 1-2"0.003mm
Throat depth: 100mm
0-25mm / 0-1"0.003mm
25-50mm / 1-2"0.003mm
Throat depth: 150mm
0-25mm / 0-1"0.004mm
25-50mm / 1-2"0.004mm
Throat depth: 300mm
0-25mm / 0-1"0.005mm
25-50mm / 1-2"0.005mm
Notice: Anvil A , B , C is optional with consumer.There are only anvil B and anvil C for the throat depth 300mm.

1" deep throat micrometers,1-2" deep throat micrometers.

Deep throat micrometers list-2 Type-A Type-B Type-C
Throat depth Accuracy
50mm0.003mm
100mm0.003mm
150mm0.004mm
300mm0.005mm
