Crimp Height Micrometer

For accurate measurement of crimp height or groove depth.

  • Protection level:IP54.
  • Criterion:DIN40050/IEC529 standard
  • Carbide measuring faces
  • Painted frame

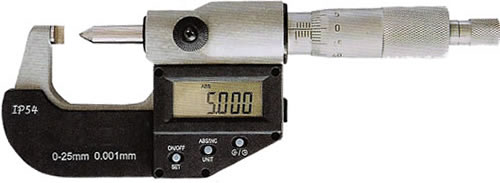

Crimp height micrometer - Electronic System Type-A
Crimp height micrometer - Electronic System Type-B
  • Carbide measuring faces.
  • Painted frame.
Crimp height micrometer Type-C
Crimp height micrometer Type-A Type-B Type-C
Range Accuracy
Shape C
0-25mm / 0-1"0.004mm
25-50mm / 1-2"0.004mm
50-75mm / 2-3"0.005mm
75-100mm / 3-4"0.005mm
Shape D
0-25mm / 0-1"0.004mm
Shape E,
0-25mm / 0-1"0.004mm
Note: Anvil's shape C,D,E is optional with consumer.

1" crimp micrometer, 1-2" crimp micrometer, 2-3" crimp micrometer, 3-4" crimp micrometer.

Reference:
Point micrometer
