Blade Micrometer
Thinner blade anvil for effective measurement of narrow slots.
Protection level: IP54.
Criterion: DIN40050/IEC529 standard.
Carbide measuring faces.
Painted frame.

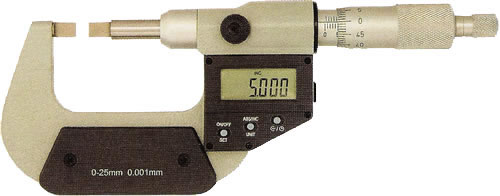

Digital blade micrometer - Type-A
Electronic system

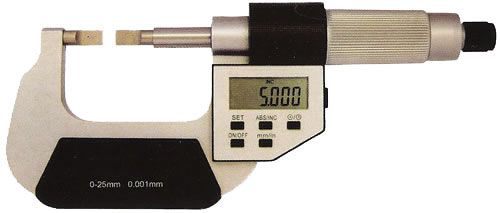

Digital blade micrometer - Type-B
Electronic system
Carbide measuring faces.
Painted frame.
Blade micrometer Type-C
Blade micrometer Type-A Type-B Type-C
Range
Accuracy
Range
Accuracy
0-25mm / 0-1"
0.004mm
100-125mm / 4-5"
0.006mm
25-50mm / 1-2"
0.004mm
125-150mm / 5-6"
0.006mm
50-75mm / 2-3"
0.005mm
150-175mm / 6-7"
0.007mm
75-100mm / 3-4"
0.005mm
Notice: Anvils A or B is optional with consumer.
1" digital blade micrometer,
2" digital blade micrometer, 3" digital blade micrometer, 4" digital blade micrometer, 5" digital blade micrometer,
1" blade micrometers, 1-2" blade micrometers, 2-3" blade micrometers, 3-4" blade micrometers, 4-5" blade micrometers.
Reference:
Blade caliper
