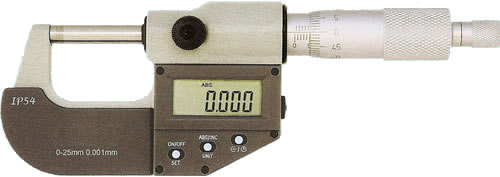

2" Digital Micrometer

  • Protection level: IP54(Type-A) and IP65(Type-B).
  • Display data is origin data of absolute measurement after turning onloff
  • Criterion: DIN863/1, DIN40050/lEC529 standard
  • Carbide measuring faces;Painted frame.
  • Resolution of digit: 0.001mm 10.000051
  • Resolution of micrometer heads: 0.01 mm 10.0001"

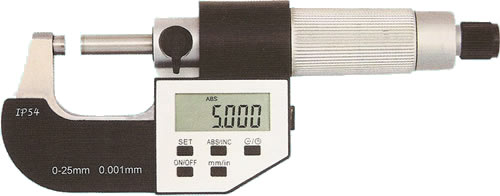

2" Digital micrometer Type-A

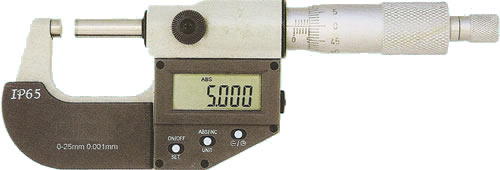

2" Digital micrometer Type-B

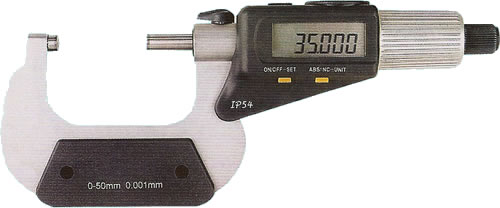

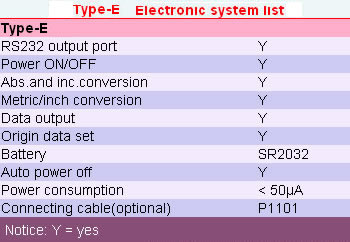

0-2" Digital micrometer Type-E
  • Protection level: IP54.
  • Carbide measuring faces.
  • Resolution Of digit 0.001 mm/O.00005•.
  • Double display LCD direction can be changed by key for easy reading in all kinds of measuring condition and left or right.
  • Travel of micrometer head: 50mm. Non-Rotating spindle.
  • Criterion: DIN863/1, DIN40050/lEC529 standard(Type-E).

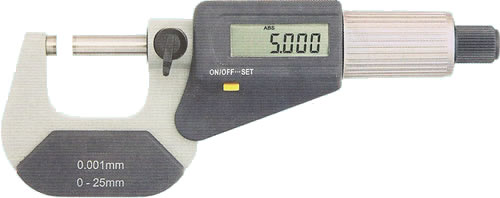

2" Digital micrometer Type-G
  • Protection level: IP54.
  • Display data is origin data of absolute measurement after turning on/off
  • Carbide measuring faces, Chrome-plated frame or fine cast frame,
  • Carbide measuring faces.
  • Criterion: DIN863/1, DIN40050,1EC529 standard
  • Resolution: 0.001mm 10.00005".
  • Easy operation.
  • Display data is origin data of absolute measurement after turning on/off
  • Carbide measuring faces.Painted frame.
  • Criterion: DIN863/1, DIN40050/lEC529 standard.
  • Resolution: 0.001mm / 0.00005".
2" Digital micrometer Type-J
1" Digital micrometer Type-K

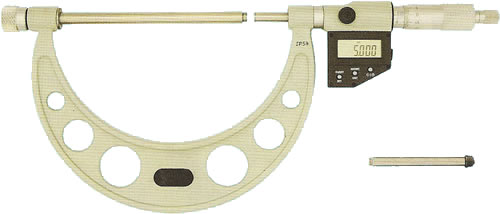

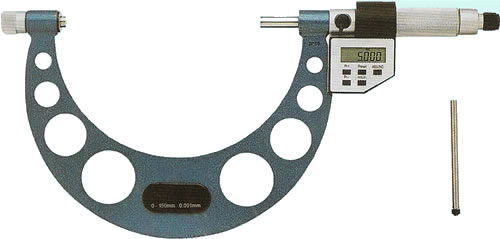

  • Wide measuring range with interchangeable anvils-High accuracy interchangeable anvils enable that reading does not have to reset when changing anvils.
  • Carbide measuring faces.
  • Painted and fine cast frame

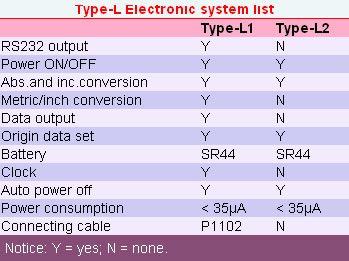

0-2" Digital micrometer Type-L
0-2" Digital micrometer Type-M
