Universal Dial Indicator

Universal dial indicator

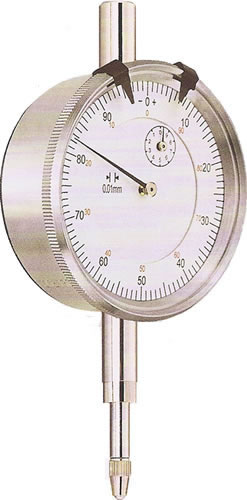

Universal dial indicator Type-A
  • Steel body. Jeweled bearing.
  • Semi-seal cap
  • Plastic flat back is valid for standard.
  • The metal lug back can be supplied request
UN hreading inserts

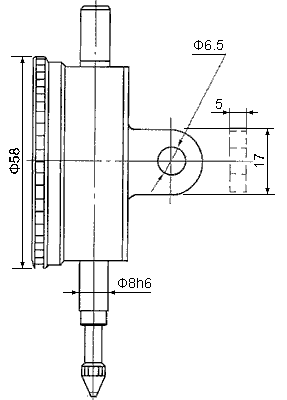

Universal dial indicators sketch for Type-A, Type-B, Type-C.
Universal dial indicator
Range Grad.
0-10mm 0.01mm
0-5mm 0.01mm
0-3mm 0.01mm

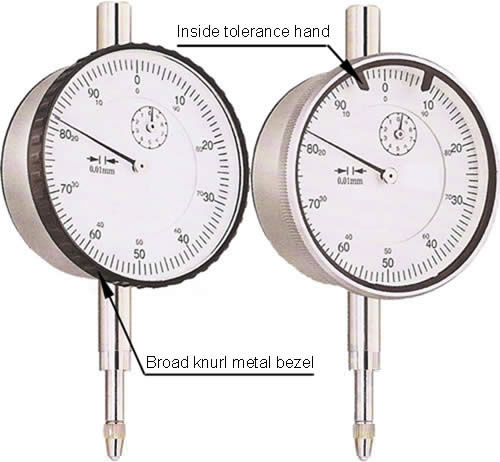

Option: 1. Broad knurl metal bezel with inside tolerance hand or none;
              2. common bezel with inside tolerance hand or none.
Universal dial indicator

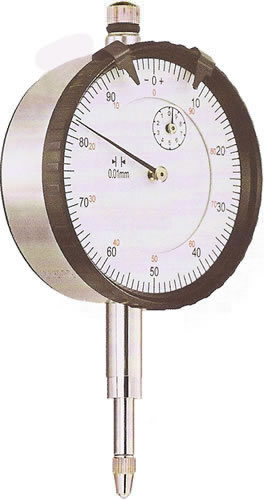

Universal dial indicator Type-B
Universal dial indicator
Universal dial indicator Type-C
  • Steel or Aluminum body.Jeweled bearing.
  • Left or right dial lock screw.
  • Right-up or left-down counter hand.
  • Plastic flat back is valid for standard.
  • The metal lug back can be supplied upon request.
Universal dial indicators Type-B Type-C
Range Grad. Explanation
Type-B 0-10mm 0.01mm Semi-seal cap.Broad knurl metal bezel or common bezel is optional.
Type-C 0-10mm 0.01mm Lifting screw.Broad knurl metal bezel or common bezel is optional.
With outside tolerance hand.
Frequently asked questions:
1″ Dial indicator
0-0.25", 0-0.5", 0-1"
2″ Dial indicator
0-2"
Long range dial indicator
0-30, 0-50, 0-80, 0-100mm.
Precision dial indicator
0-1mm or 0-2mm, Graduation:0.001mm.
