Tube Thickness Gauge

Pipe thickness gauge can be used for measuring the thickness of tube.
  • Integrative main body machined from aluminum.
  • Ergonomic lifting handle.
  • Upward shockproof.
  • The dial pipe gauge specializes in the measurement of the wall thickness of pipe or the thickness of bent plates.

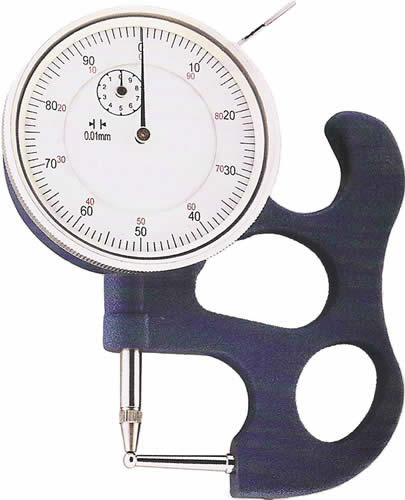

Pipe thickness gage
Pipe thickness gage sketch

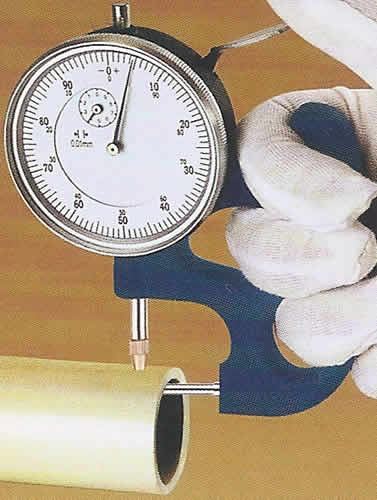

Pipe thickness gauge picture
Pipe thickness gauge
Range Grad. A L d D B C
0-10mm0.01mm25.3mm22mmØ2.5mmSØ3.5mm102mm59mm
0-0.5"0.001"1.0"0.87"Ø0.1"SØ0.14"4.02"2.32"
0-0.5"0.0005"1.0"0.87"Ø0.1"SØ0.14"4.02"2.32"
0-10mm pocket thickness gauges, 0-0.5" pocket thickness gages.
Reference:
Tube micrometerTube thickness caliperPipe Thickness Gauge
