Radius Dial Gauge

  • Multi-Radius Gauge can be used to measure random radius of arc,including outside arc surface and inside arc surface.
  • Mutil-Radius Gauge have five different length measuring jaws,for measuring a arc surfcce with corresponding jaws.
  • Mutil-Radius Gauge can be used as a indicator,to measure depth or step.
  • Mutil-Radius Gauge resolution: 0.01mm/0.0005", Accuracy:ΔR≤0.01R.
Radius dial gauge
Radius dial gauge Type-A

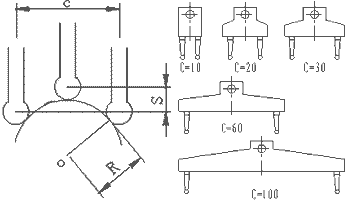

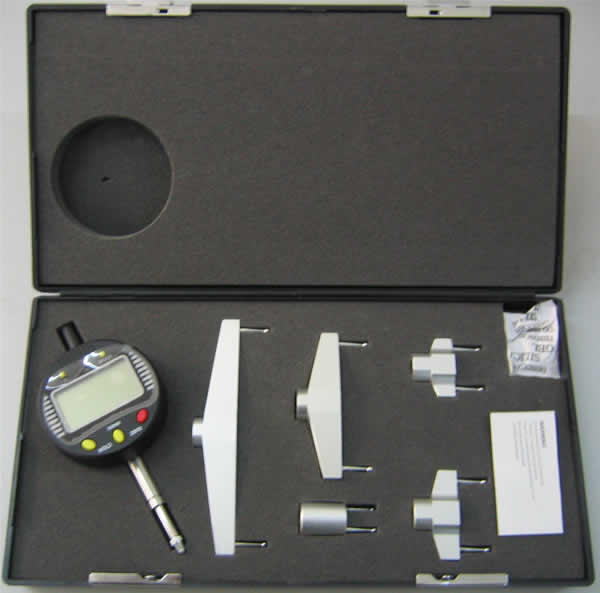

Radius gauge jaws

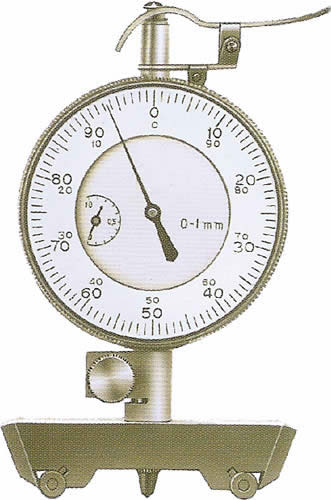

Multi-Radius Gauge(Radius dial gauge Type-A)
Measuring rang (R)
C Outside arc Inside arc
10 mm 5-13 mm 6.5-15 mm
20 mm 11-30 mm 14-30 mm
30 mm 22-100 mm 27-100 mm
60 mm 94-160 mm 94-260 mm
100 mm 255-700 mm 255-700 mm
  • Measuring range 100-1000mm
  • The conversion expressions: R = 200/h + h/2 - 3, h = measuring value
  • Easy to measure the radius of cylinders with radius from 100mm to 1000mm
Radius dial gauge
Radius dial gauges Type-B
Radius dial gauges
Radius dial gauge Type-C

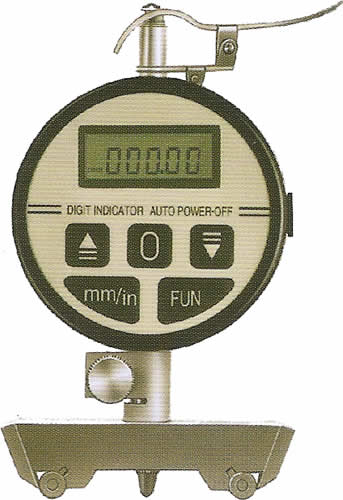

Radius dial gauges Type-B Type-C
RangeResolution
R100-1000mm 0.001mm
Reference hyperlink:

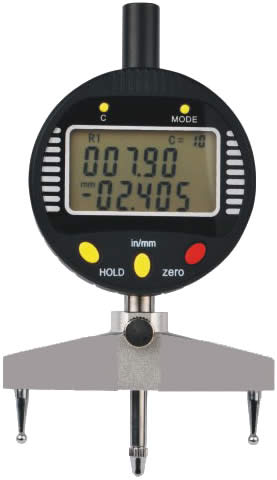

Digital radius caliperSpherical radius dial gauge
Reference item: radii dial gauge, radius dial gage, radius dial gages.
