Precision Thickness Gauge

With constant pressure of 0.1MPa. easy to accurately measure the thickness of plastic film,paper and metal sheet.

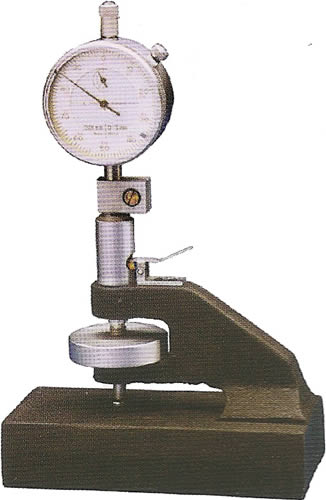

Precision thickness gage with dial indicator

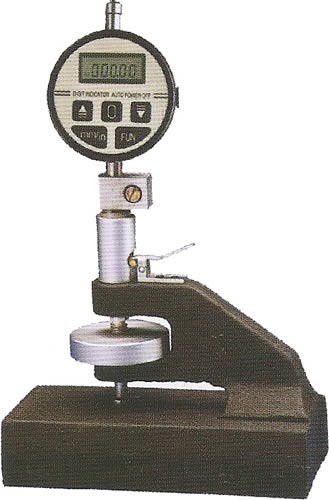

Precision thickness gages with digital dial indicator

Precision thickness gages
	Range	Resolution	Accuracy	Measuring Pressure
Type-A	0-5mm	0.01mm	±0.025mm	0.1MPa
Type-A	0-1mm	0.001mm	±0.005mm	0.1MPa
Type-B	0-5mm	0.01mm	±0.030mm	0.1MPa
Type-B	0-1mm	0.001mm	±0.006mm	0.1MPa

0-1mm precision thickness gage, 0-5mm precision thickness gages.

0-10, 0-12.5mm, 0-0.5".

0-10, 0-12.5, 0-20mm, 0-0.5".

0-10mm, 0-10mm / 0.4"

0-12.5mm / 0.5"

0-10mm, 0-0.5".

0-10, 0-12.5mm, 0-0.5".

0-25, 0-30mm, 0-1"
