Metric Dial Test Indicator

  • High quality brass main body, high resistance to magnetism.
  • Jeweled, vibration-proof, durable.
  • Pivot ball bearing.
  • Carbide, jewel ball or steel contact point.
  • Three dovetails.

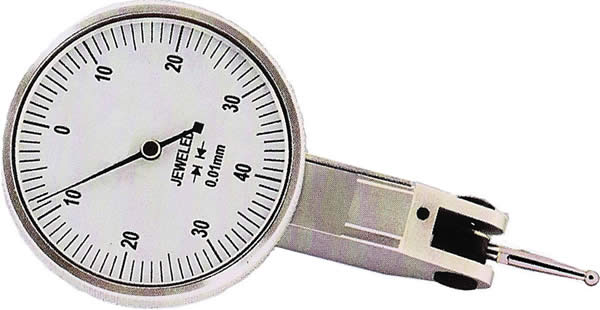

Metric dial test indicator Type-A

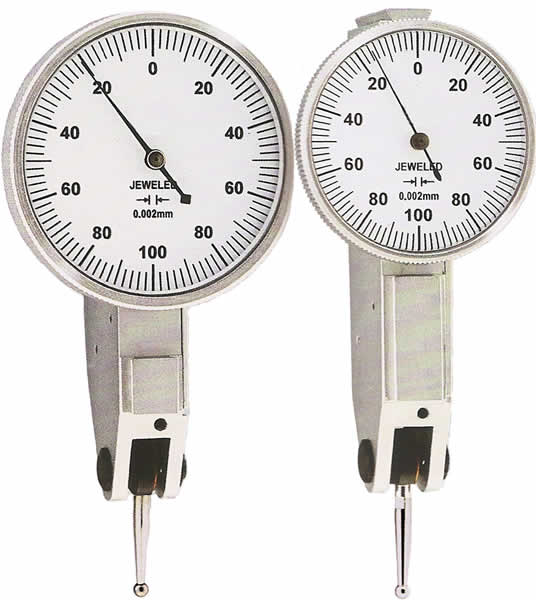

Metric dial test indicator Type-B

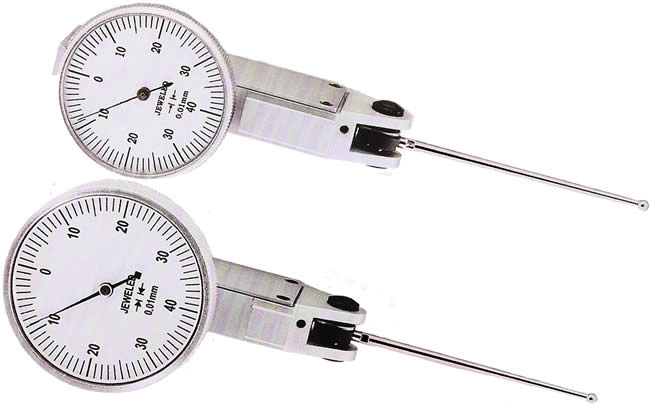

Metric dial test indicator Type-C

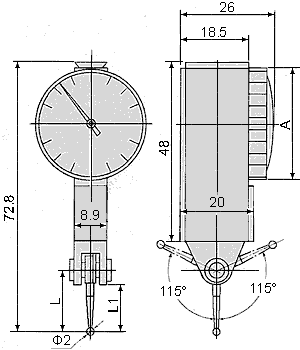

Metric dial test indicators sketch
Metric dial test indicators sketch
Metric dial test indicator
Type Range Grad. A d1 d2 L L1
Type-A0.8mm0.01mmØ30mmØ8mmØ6mm16.5mm12.5mm
Type-A0.8mm0.01mmØ37.5mmØ8mmØ6mm16.5mm12.5mm
Type-B0.2mm0.002mmØ30mmØ8mmØ6mm16mm12.0mm
Type-B0.2mm0.002mmØ37.5mmØ8mmØ6mm16mm12.0mm
Type-C0.8mm0.01mmØ30mmØ8mmØ6mm46.4mm42.4mm
Type-C0.8mm0.01mmØ37.5mmØ8mmØ6mm46.4mm42.4mm
0.2mm metric dial test indicators, 0.8mm metric dial test indicator.
