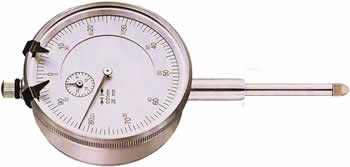

0-100mm Dial Indicator

Steel body
Jeweled bearing
With shockproof device
Lifting screw
Inside tolerance hand
White or black steel bezel is optional
Plastic flat back is valid for standard. The metal lug back can be supplied upon request

0-100mm dial indicators

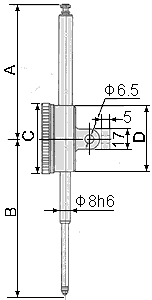

Range	Grad.	A	B	C	D
0-30mm	0.01mm	37.5mm	89.5mm	Ø58mm	Ø53.5mm
0-50mm	0.01mm	108.3mm	126.2mm	Ø58mm	Ø53.5mm
0-80mm	0.01mm	138.4mm	168.4mm	Ø58mm	Ø53.5mm
0-100mm	0.01mm	167.6mm	207.8mm	Ø78mm	Ø69mm

0-30mm dial indicator, 0-50mm dial indicators, 0-80mm dial indicator, 0-100mm dial indicator.

Steel or aluminum body.
Lifting screw.
With dial lock screw.
Plastic flat back is valid for standard. The metal lug back can be supplied upon request.

0-25mm dial indicator
Range	Grad.	A	B	C	D
0-25mm	0.01mm	37.5mm	80.5mm	Ø58mm	Ø53.5mm
0-30mm	0.01mm	37.5mm	88mm	Ø58mm	Ø53.5mm
Note:Broad knurl bezel or common is optional.

0-25mm dial indicator, 0-30mm dial indicator.
