Lens Thickness Gauge

Lens thickness gauges can be used for measuring the thickness of lenses.

  • With a shock-proof dial indicator (Type-A) or with a digital dial indicator (Type-B)
  • Easy to measure the thickness of concave or convex object with globular heads
  • Lower head can be adjusted up and down

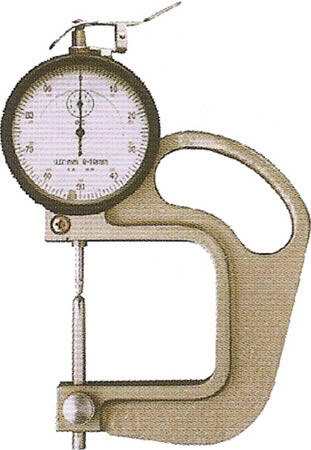

Lens thickness gauge Type-A

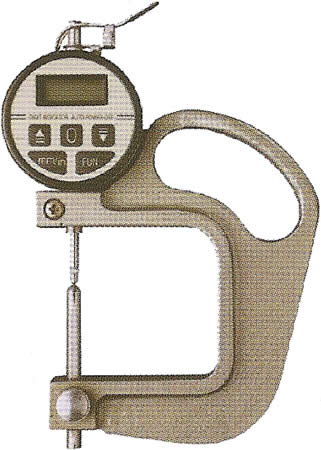

Lens thickness gauge Type-B
Lens thickness gauge sketch
Lens thickness gauge
Type Range Resolution Accuracy L H
Type-A0-10mm0.01mm±0.025mm30mm25mm
0-10mm0.01mm±0.030mm62.5mm55mm
Type-B0-10mm0.01mm/0.0005in±0.030mm30mm25mm
0-10mm0.01mm/0.0005in±0.040mm62.5mm55mm
