Precision Digital Height Gauge

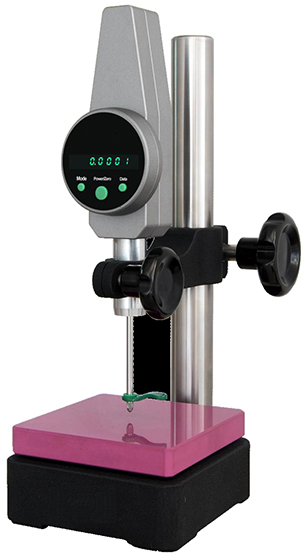

Our Digital Height Gauge, a high-precision height measuring instrument was designed for the precision measurement of automotive engine parts, electronic connectors, aerospace and other fields.

With one ten-thousandth resolution, ensuring stable accuracy and guaranteed repeatability，ranging display values from 1μm to 0.1μm, our high precision height gauge is the solution for your exacting measurement requirements.

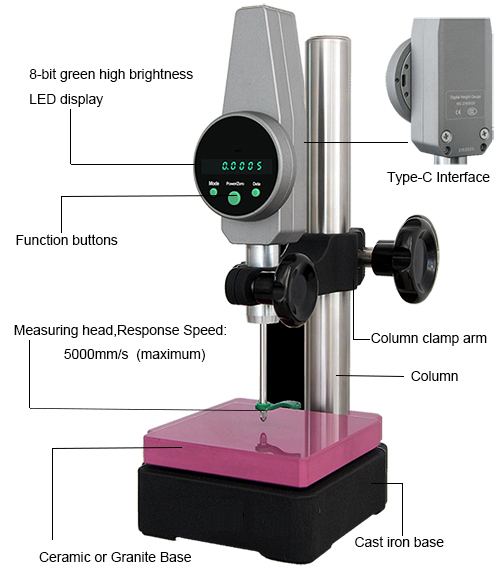

Features

Resolution: 0.0001mm/.000005" | 0.0005mm/.00002" | 0.001mm/.00005"
High Response Speed:
5000mm/s （maximum）
Reset to zero at any position.
Standard column： Φ35x310mm
Customizable column : Φ35x410mm.
Measuring force: ≤1.2N (for 0-50mm/0-1.969") | ≤1.6N (for 0-100mm/0-3.937")
Support data transmission and blue tooth data transmission.
Built in 1800mAH lithium battery (ONLY for blue tooth).
Open communication protocol.
Interchangeable measuring head.
Resolution switchable.
Available in option of multiple bases.
Customizable column clamp arm size.
Available in option of power bank.
Available in option of built-in lithium battery.

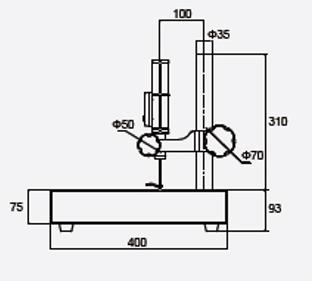

Digital height gauge specifications and parameters

Resolution ： 0.0001mm/.000005" （ can Switch to ： 0.001mm/.00005"）

Code	Range	Accuracy	Repeatability	Data Trans. Mode	Base & Mterial
SF32-02-100	0-50mm/0-1.969"	≤0.001mm	≤0.0002mm	USB Type-C	130mm×130mm ceramic
SF32-02-300	0-50mm/0-1.969"	≤0.001mm	≤0.0002mm		400mm×300mm granite
SF32-04-100	0-100mm/0-3.937"	≤0.002mm	≤0.0004mm		130mm×130mm ceramic
SF32-04-200	0-100mm/0-3.937"	≤0.002mm	≤0.0004mm		400mm×300mm granite
SF32-12-100	0-50mm/0-1.969"	≤0.001mm	≤0.0002mm	Blue Tooth	130mm×130mm ceramic
SF32-12-300	0-50mm/0-1.969"	≤0.001mm	≤0.0002mm		400mm×300mm granite
SF32-14-100	0-100mm/0-3.937"	≤0.002mm	≤0.0004mm		130mm×130mm ceramic
SF32-14-200	0-100mm/0-3.937"	≤0.002mm	≤0.0004mm		400mm×300mm granite

Resolution ： 0.0005mm/.00002" （ can Switch to ： 0.001mm/.00005"）

Code	Range	Accuracy	Repeatability	Data Trans. Mode	Base & Mterial
SF32-02-000	0-50mm/0-1.969"	≤0.002mm	≤0.0005mm	USB Type-C	130mm×130mm ceramic
SF32-02-200	0-50mm/0-1.969"	≤0.002mm	≤0.0005mm		400mm×300mm granite
SF32-04-000	0-100mm/0-3.937"	≤0.003mm	≤0.001mm		130mm×130mm ceramic
SF32-04-300	0-100mm/0-3.937"	≤0.003mm	≤0.001mm		400mm×300mm granite
SF32-12-000	0-50mm/0-1.969"	≤0.002mm	&	≤0.0005mm　Blue Tooth	130mm×130mm ceramic
SF32-12-200	0-50mm/0-1.969"	≤0.002mm	≤0.0005mm		400mm×300mm granite
SF32-14-000	0-100mm/0-3.937"	≤0.003mm	≤0.001mm		130mm×130mm ceramic
SF32-14-300	0-100mm/0-3.937"	≤0.003mm	≤0.001mm		400mm×300mm granite

Resolution ： 0.001mm/.0005"

Code	Range	Accuracy	Repeatability	Data Trans. Mode	Base & Mterial
SF32-02-010	0-50mm/0-1.969"	≤0.003mm	≤0.001mm	USB Type-C	130mm×130mm ceramic
SF32-02-210	0-50mm/0-1.969"	≤0.003mm	≤0.001mm		400mm×300mm granite
SF32-02-410	0-50mm/0-1.969"	≤0.003mm	≤0.001mm		250mm×200mm granite
SF32-04-010	0-100mm/0-3.937"	≤0.004mm	≤0.002mm		130mm×130mm ceramic
SF32-04-210	0-100mm/0-3.937"	≤0.004mm	≤0.002mm		400mm×300mm granite
SF32-04-410&	0-100mm/0-3.937"	≤0.004mm	≤0.002mm		250mm×200mm granite
SF32-12-010	0-50mm/0-1.969"	≤0.003mm	≤0.001mm	Blue Tooth	130mm×130mm ceramic
SF32-12-210	0-50mm/0-1.969"	≤0.003mm	≤0.001mm		400mm×300mm granite
SF32-12-410	0-50mm/0-1.969"	≤0.003mm	≤0.001mm		250mm×200mm granite
SF32-14-010	0-100mm/0-3.937"	≤0.004mm	≤0.002mm		130mm×130mm ceramic
SF32-14-210	0-100mm/0-3.937"	≤0.004mm	≤0.002mm		400mm×300mm granite
SF32-14-410	0-100mm/0-3.937"	≤0.004mm	≤0.002mm		250mm×200mm granite

Power supply

Input:: AC 100~240V 50~60Hz
Output:: DC 5V/1A
Working Condition:
- Tempreture: 0~40°C
- Humidity: 20~80%

Standard Configuration:

Digital Indicator
Gauge Stand
Mearsuring head with ball contact point
The power adapter

Options:

Special-shaped measuring head
Power bank

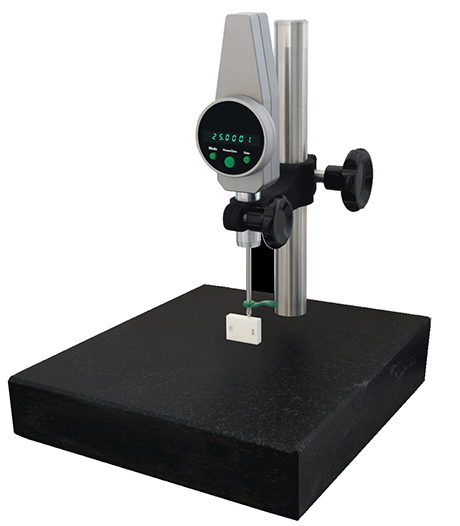

Precision digital height gauge Measuring head

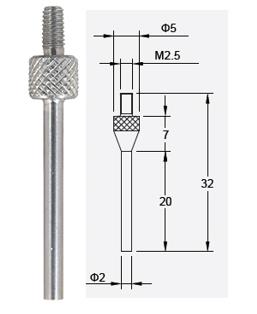

Three options of measuring heads in application to different measurements.

Data Transmission

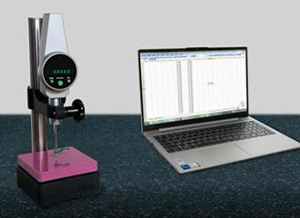

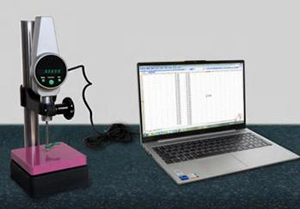

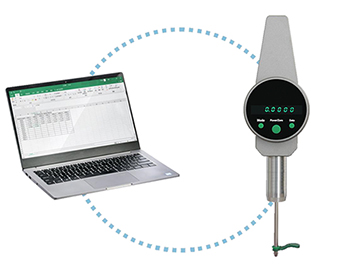

Digital height gauge will be recognized by the computer as a HID device，similar to a virtual keyboard, the measurement data will be automatically typed into software such as Excel,Word or Notepad etc by operation of the keyboard in real time, no need to manually enter or save by other softwares.

Set Bluetooth wireless connection with ONE button

Hold down the Data key to access Bluetooth Settings.
Press the Data key and select Bluetooth On, Off and Reset (RST) three modes in a loop.
Hold down the Data key to select and exit the Bluetooth setting mode.
Tap on the PC to connect to Bluetooth.

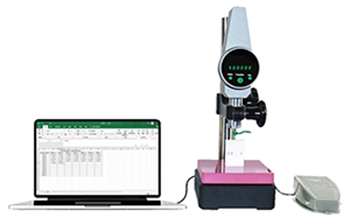

Cable Connection Components P2101
