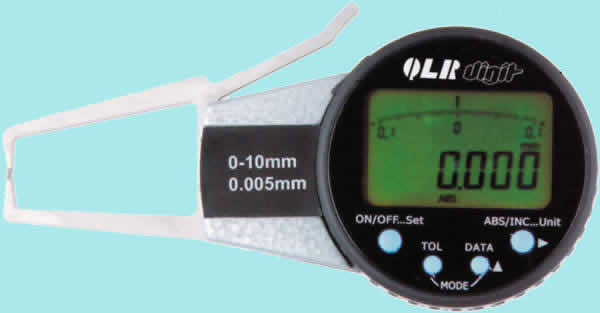

External Dial Caliper

Outside dial caliper are suited for measuring grooves and other hard-to-reach outside dimension.The data of Max. and Min can be remembered , or the displaying data can be held,the tolerance can be set.

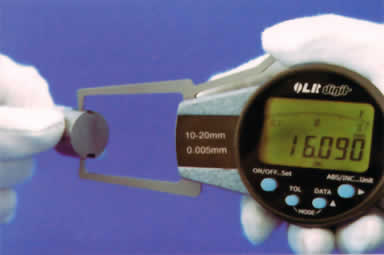

External dial calipers are suited for measuring grooves and other hard-to-reach outside dimension.
Dial rotates ±170° for use at versions angles.
Display data is origin data of absolute measurement after changing battery.
Digital display and analog display on LCD automatic switch over.
Analog display range: ±20 graduation.
Digital resolution:
0.005mm(Metric); 0.0002"(Inch).
Analog resolution:
0.01mm; 0.02mm; 0.05mm(Metric); 0.0005"; 0.001"; 0.002"(Inch).

Outside dial caliper
Range	Accuracy	L	S	H	R(Jaw-A)	D(Jaw-B)
Travel 10mm
0-10mm / 0-0.8"	0.02mm	40mm	3mm	8mm	0.5mm	Ø1.5mm
10-20mm / 0.4-0.8"	0.02mm	40mm	3mm	8mm	0.5mm	Ø1.5mm
20-30mm / 0.8-1.2"	0.02mm	40mm	3mm	8mm	0.5mm	Ø1.5mm
30-40mm / 1.2-1.6"	0.02mm	40mm	3mm	8mm	0.5mm	Ø1.5mm
40-50mm / 1.6-2"	0.02mm	40mm	3mm	8mm	0.5mm	Ø1.5mm
Travel 20mm
0-20mm / 0-0.8"	0.03mm	80mm	6.5mm	25mm	0.75mm	Ø1.5mm
10-30mm / 0.4-1.2"	0.03mm	80mm	6.5mm	25mm	0.75mm	Ø1.5mm
20-40mm / 0.8-1.6"	0.03mm	80mm	6.5mm	25mm	0.75mm	Ø1.5mm
30-50mm /1.2-2"	0.03mm	80mm	6.5mm	25mm	0.75mm	Ø1.5mm
40-60mm / 1.6-2.4"	0.03mm	80mm	6.5mm	25mm	0.75mm	Ø1.5mm
Note: Jaw-A and Jaw-B is optional.

0.8" external dial caliper, 1.2" external dial calipers, 1.6" outside dial caliper, 2" external dial calipers, 2.4" external dial caliper,

Reference hyperlink:

Internal dial caliper

Electronic system; Hold data; Internal range: ~2.4"

Dial caliper gage

Internal measuring range: ~215mm; External measuring range: ~200mm.

Deep Dial Caliper

External measuring range: 0-80, 0-90mm.

Dial caliper gauge

Inch system. Internal measuring range: ~3.8"; External measuring range: ~4.0".

Dial caliper gauges

Measuring depth: ~250mm; Internal measuring range: ~75mm.
