Digital Indicator

In our high precision digital indicators，the adoption of absolute encoders ensures minimal cumulative error, with a maximum deviation of only 0.002mm (for the range 0-25.4mm/0-1″ digital indicators).
The electronic indicator can be zeroed at any position for immediate measurement and boasts strong anti-interference capabilities and unlimited reading speed.
Digital indicator
Electronic dial indicators.
Digital Indicator

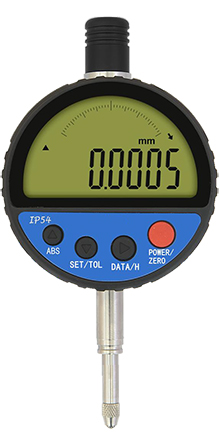

Digital Indicator Type-A 0.0005mm/.00002"
Digital Indicator

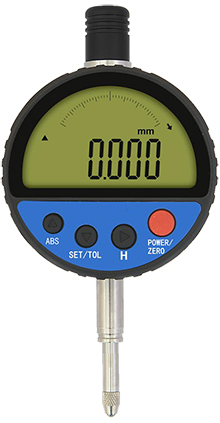

Digital Indicator Type-B 0.001mm/.00005"
Type-A,-B,-D Common Feature
  • Electronic indicator technology is adopted.
  • High-precision.
  • 800mAH rechargeable lithium battery
  • Absolute zero measuring system, real-time measurement.
  • Absolute measurement or Relative measurement switchable
  • Max/Min/Max-Min can be set.
  • With value locking function.
  • Zero setting at any position.
  • Selection of measuring direction.
  • Tolerance preset and out-of-tolerance alarm.
  • IP54 Protection Level.

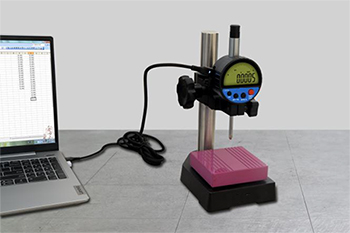

USB cable connection
Type-A & Type-B series USB cable connection

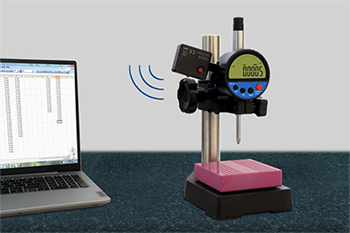

Wireless connection
Type-A & Type-B series wireless connection
Type-A & Type-B feature
  • Pointer analog display
  • The dial is capable of counterclockwise rotation from -270° to 0°
  • Standard Configuration USB type-C cable data output.
  • Available in option of external P1805A Bluetooth wireless transmitter,
Bluetooth Transmitter
Type-A & Type-B Bluetooth Transmitter P1805A

Digital Indicator Technical Data

Type-A
Range Resolution Accuracy Hysteresis Measuring Force Data Trans. Mode
 0-12.7mm/0-0.5"  0.0005mm/.00002"　 0.002mm 0.0015mm ≤1.5N USB type-C　
0-15mm/0-0.6" 0.002mm 0.0015mm ≤1.5N
 0-25.4mm/0-1" 0.002mm 0.0015mm ≤1.8N
0-50.8mm/0-2" 0.004mm 0.002mm ≤2.3N
Type-B
Range Resolution Accuracy Hysteresis Measuring Force Data Trans. Mode
 0-12.7mm/0-0.5"  0.001mm/.00005"　 0.002mm 0.002mm ≤1.5N 　USB type-C
0-15mm/0-0.6"  0.003mm 0.002mm ≤1.5N
 0-25.4mm/0-1"  0.003mm 0.002mm ≤1.8N
0-50.8mm/0-2"  0.005mm 0.002mm ≤2.3N
Digital Indicator

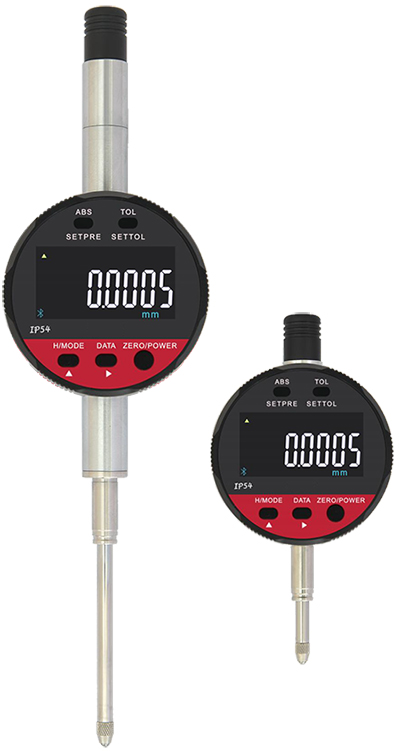

Digital indicator Type-D
Type-A,-B,-D Common Feature
  • Electronic indicator technology is adopted.
  • High-precision.
  • 800mAH rechargeable lithium battery.
  • Absolute zero measuring system, real-time measurement.
  • mm/inch switchable.
  • Absolute measurement or Relative measurement switchable.
  • Max/Min/Max-Min can be set.
  • With value locking function.
  • Zero setting at any position.
  • Selection of measuring direction.
  • Tolerance preset and out-of-tolerance alarm.
  • IP54 Protection Level.
Type-D feature
  • The standard configuration includes a built-in Bluetooth HID data transmission module.
  • The large LCD color screen display employs different colors for various functions,enhancing user intuition.
  • Resolution 0.001mm/.00005" can switch to 0.0005mm/.00002" .
  • The dial is capable of clockwise rotation from 0° to 180° and counterclockwise rotation from -90° to 0°.
  • Standard Configuration in-built Bluetooth wireless transmission.
  • Available in option of USB type-C data output cable transmission,

Digital Indicator Technical Data

Type- D ( Resolution can be Switched)
Range Resolution Accuracy Hysteresis Measuring Force Data Trans. Mode
 0-12.7mm/0-0.5" 0.0005mm/.00002"
can switch to:
0.001mm/.00005		 0.002mm 0.0015mm ≤1.5N 　Blue Tooth
0-15mm/0-0.6" 0.002mm 0.0015mm ≤1.5N
 0-25.4mm/0-1" 0.002mm 0.0015mm ≤1.8N
0-50.8mm/0-2" 0.004mm 0.002mm ≤2.3N

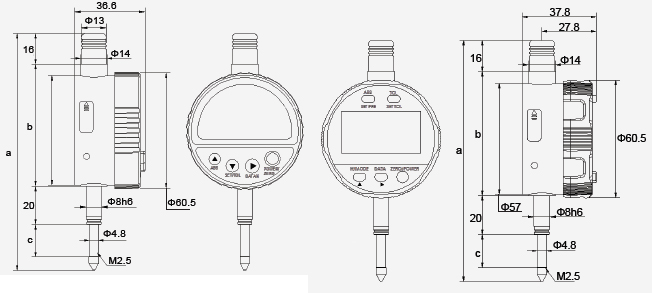

Digital Dial Indicator Main dimensional sketch

Digital indicator
Electronic indicator Type-A & Type-B Electronic indicator Type-D

Digital indicator Principal dimension

Range a b c
0-12.7mm/0-0.5" 123.7mm 63.5mm 17.0mm
0-15mm/0-0.6" 123.7mm 63.5mm 17.0mm
0-25.4mm/0-1" 151.7mm 81.0mm 27.7mm
0-50.8mm/0-2" 222.2mm 126.0mm 53.2mm
