| Range | Grad. | Depth | Anvils | Washers | Rod | Main body |
|---|---|---|---|---|---|---|
| 6-10mm / 0.24-0.4" | 0.002mm | 40mm | 9 | |||

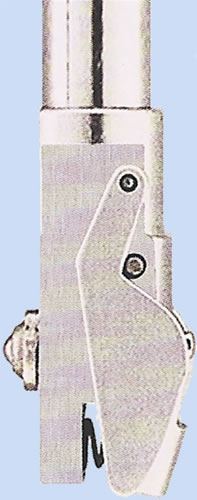

| 10-18mm / 0.4-0.72" | 0.002mm | 100mm | 9 | 1 | Bore guide | |

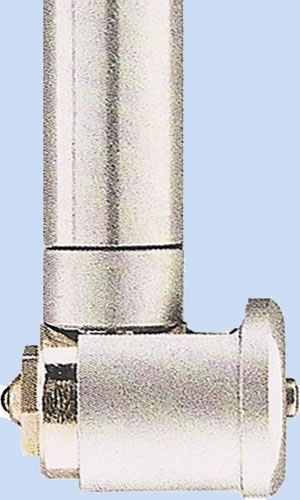

| 18-35mm / 0.72-1.4" | 0.002mm | 150mm | 9 | 2 | Canister guide | |
| 35-50mm / 1.4-2" | 0.002mm | 150mm | 4 | 4 | ||
| 50-160mm / 2-6.4" | 0.002mm | 150mm | 12 | 4 | 1 | |
| 160-250mm / 6.4-10" | 0.002mm | 250mm | 5 | 5 | 1 | |
| 250-450mm / 10-18" | 0.002mm | 250mm | 5 | 5 | 2 | |
| Depth = Measuring depth; Anvils = Interchangeable anvils; Rod = Extension rods | ||||||
