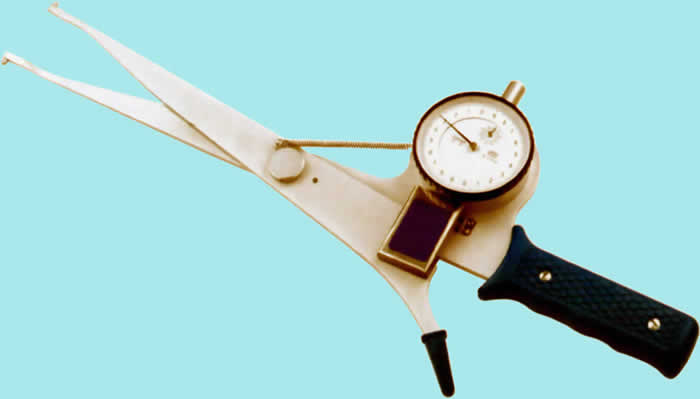

Dial Caliper Gauges

The internal dial caliper gauges are especially used for measuring the deep inside diameter,such as ring groove bottom diameter and inside step diameter or special holes of the workpiece that hard to reach.

Dial caliper gauges

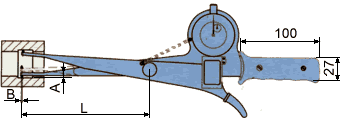

Range	Grad.	A	B	L
15-35mm	0.01mm	3mm	Ø3mm	160, 200mm
35-55mm	0.01mm	13mm	Ø3mm	160, 250mm
55-75mm	0.01mm	13mm	Ø3mm	160, 250mm

Reference hyperlink:

Deep Dial Caliper

External measuring range: 0-80, 0-90mm.

Dial caliper gauge

Inch system. Internal measuring range: ~3.8"; External measuring range: ~4.0".

Dial caliper gage

Internal measuring range: ~215mm; External measuring range: ~200mm.

Internal dial caliper

Electronic system; Hold data; Measuring range: ~60mm / 2.4".

External dial caliper

Electronic system; Hold data; Measuring range: ~60mm/2.4"
