Dial Caliper Gage

  • The internal dial caliper gage with measuring range over 215mm can be made upon request.
  • The shockproof type dial caliper gage can be supplied upon request.
Dial caliper gage Type-A

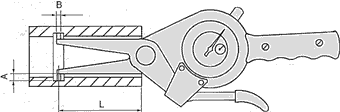

Internal dial caliper gage sketch

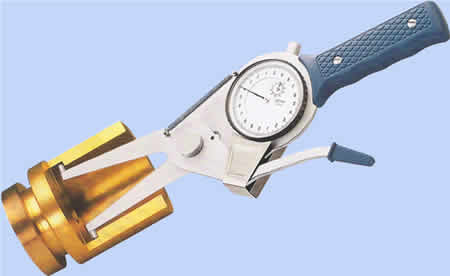

Internal dial caliper gage picture

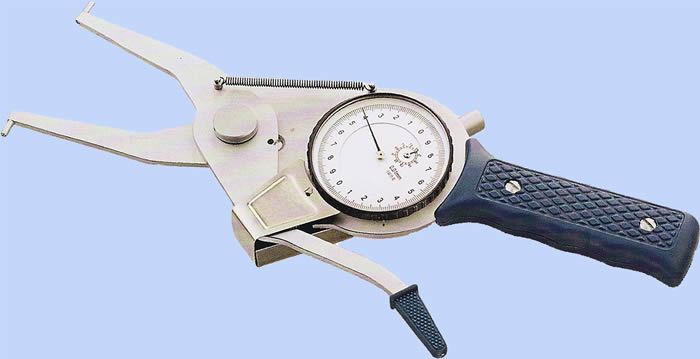

Internal dial caliper gage
Range Grad. A B L
15-35mm0.01mm3mmØ3mm50mm
35-55mm0.01mm6mmØ3mm80mm
55-75mm0.01mm8mmØ3mm90mm
75-95mm0.01mm8mmØ3mm100mm
95-115mm0.01mm10mmØ3.2mm150mm
115-135mm0.01mm10mmØ3.2mm150mm
135-155mm0.01mm10mmØ3.2mm200mm
155-175mm0.01mm10mmØ3.2mm200mm
175-195mm0.01mm10mmØ3.2mm200mm
195-215mm0.01mm10mmØ3.2mm200mm
Note: Jaw-A and Jaw-B is optional.
  • The external dial caliper gage with measuring range over 200mm can be made upon request.
  • The shockproof type dial caliper gage can be supplied upon request.
Dial caliper gage Type-B

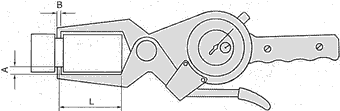

External dial caliper gage sketch

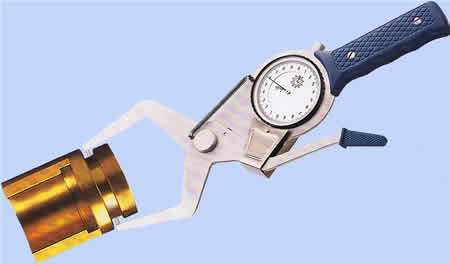

External dial caliper gage

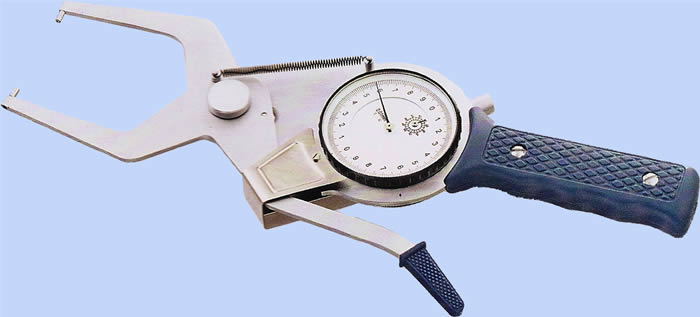

External dial caliper gage
Range Grad. A B L
0-20mm0.01mm6mmØ3mm60mm
20-40mm0.01mm6mmØ3mm60mm
40-60mm0.01mm6mmØ3mm55mm
60-80mm0.01mm6mmØ3mm55mm
80-100mm0.01mm6mmØ3mm55mm
100-120mm0.01mm10mmØ3.2mm95mm
120-140mm0.01mm10mmØ3.2mm95mm
140-160mm0.01mm10mmØ3.2mm95mm
160-180mm0.01mm10mmØ3.2mm95mm
180-200mm0.01mm10mmØ3.2mm95mm
Note: Jaw-A and Jaw-B is optional.
