Dial Bore Indicator

With 0-3mm universal dial indicator.

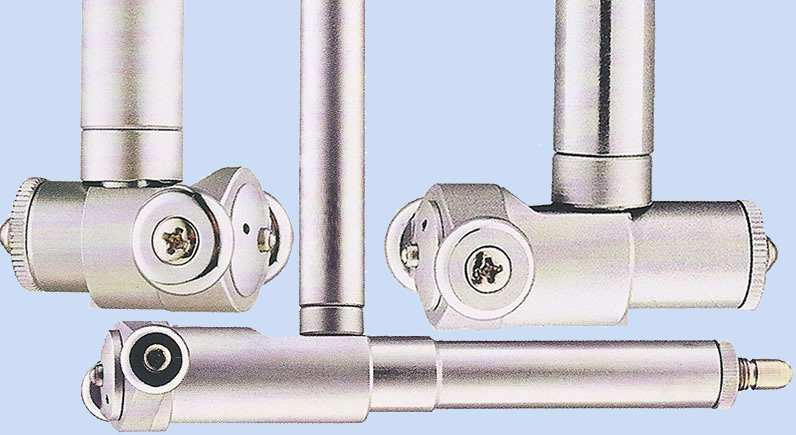

Wheel guide.
With screw anvils,convenience to set the dimension.
Main body: Wheel guide and screw anvils.

Dial bore indicator Type-A list-1

Range	Grad.	Depth	Anvils	Rod
35-50mm	0.01mm	150mm	3
50-100mm	0.01mm	150mm	5
50-160mm	0.01mm	150mm	5	1
160-250mm	0.01mm	250mm	5
250-450mm	0.01mm	250mm	5	1
100-250mm	0.01mm	250mm	4	1

Depth = Measuring depth: Anvils = Interchangeable anvils. Rod = Extension rod. | 50mm dial bore gauge, 100mm dial bore gage, 160mm dial bore gauge, 250mm dial bore gage, 450mm dial bore gauge.

Dial bore indicator Type-A list-2 (for deep holes)

Range	Grad.	Measuring depth
35-50mm	0.01mm	500/ 1000/ 1500/ 2000mm is optional
50-100mm	0.01mm	500/ 1000/ 1500/ 2000mm is optional
50-160mm	0.01mm	500/ 1000/ 1500/ 2000mm is optional
160-250mm	0.01mm	500/ 1000/ 1500/ 2000mm is optional
250-450mm	0.01mm	500/ 1000/ 1500/ 2000mm is optional

Depth = Measuring depth: Anvils = Interchangeable anvils. | 18-35mm bore gauge

Zero-setting process of dial bore indicator

Zero-setting process of dial bore gauge
