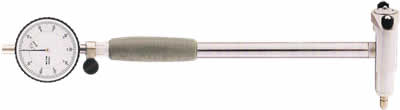

Cylinder Bore Gauge

Main body: Wheel guide and inserting anvils.

With 0-3mm universal dial indicator.

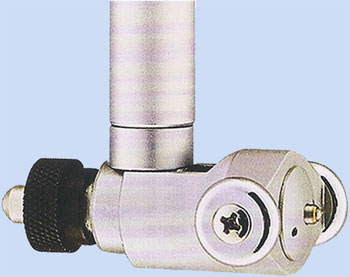

Wheel guide.
Inserting anvils,convenience to set dimension.

Cylinder bore gauge Type-A
Range	Grad.	Depth	Anvils	Washers	Rod
35-50mm	0.01mm	150mm	4	4
50-100mm	0.01mm	150mm	11	4
50-160mm	0.01mm	150mm	12	4	1
160-250mm	0.01mm	250mm	5	5	1
250-450mm	0.01mm	250mm	5	5	2
Depth = Measuring depth: Anvils = Interchangeable anvils; Rod = Extension rod.

50mm cylinder bore gauges, 100mm cylinder bore gage, 160mm cylinder bore gauges,
250mm cylinder bore gage, 450mm cylinder bore gauges.

Main body: Ball guide and screw anvils.

With 0-3mm universal dial indicator.

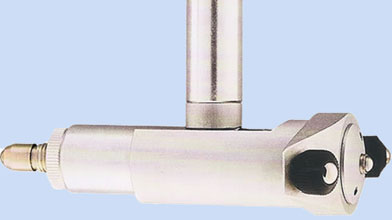

Ball guide.
Screw anvils,convenience to set dimension.

Cylinder bore gauge Type-B
Range	Grad.	Depth	Anvils	Rod
35-50mm	0.01mm	150mm	3
50-100mm	0.01mm	150mm	5
50-160mm	0.01mm	150mm	5	1
160-250mm	0.01mm	400mm	5
100-250mm	0.01mm	200mm	4	1
Depth = Measuring depth: Anvils = Interchangeable anvils. Rod = Extension rod.

50mm cylinder bore gage, 100mm cylinder bore gauges, 160mm cylinder bore gage,
250mm cylinder bore gauges, 450mm cylinder bore gage.

Zero-setting process of cylinder bore indicator

Zero-setting process of dial bore gauge

Reference hyperlink:

Range: ~35mm, Measuring depth:~150mm.

Dial bore indicator

Range: ~450mm; Measuring depth:~2000mm.

Precision bore gauge

Range: ~450mm / 16"; Graduation: 0.001mm / 0.0001".

Large Diameter Bore gauge

Range: ~1500mm; Graduation: 0.01mm or 0.001mm
