1" Dial Indicator

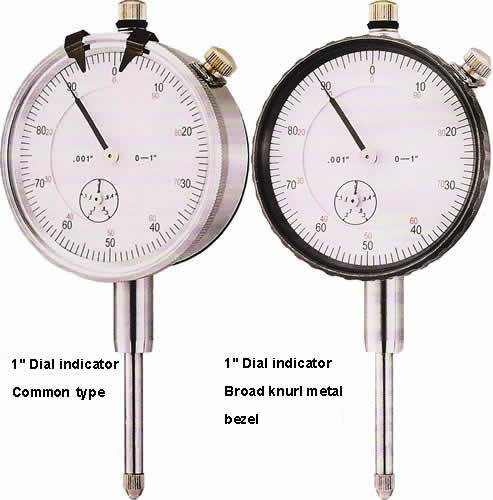

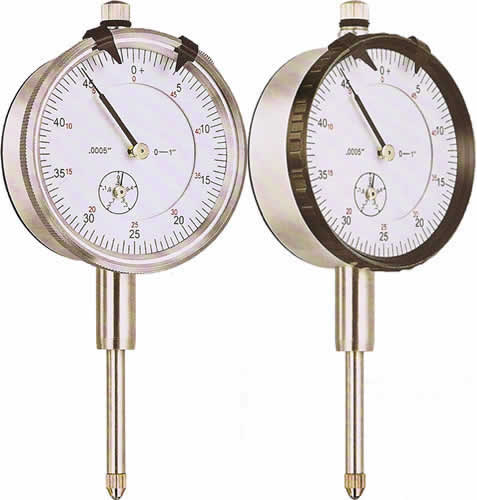

1" Dial indicator Type-A
  • Aluminum body.
  • Lifting screw with cushion rubber.
  • Broad knurl or common metal bezel is optional.
  • With inside tolerance hand or with outside tolerance hand is optional.
  • Metal lug back is valid for standard.
0-1" dial indicator
Range Grad.
0-0.25"0.0005"
0-0.5"0.0005"
0-1"0.0005"
0-1mm precision dial indicators, 0-2mm precision dial indicator.

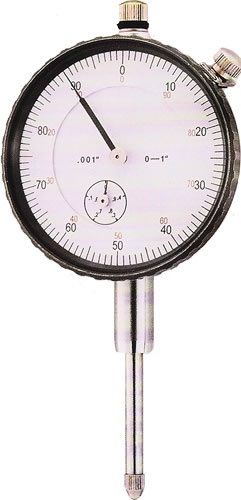

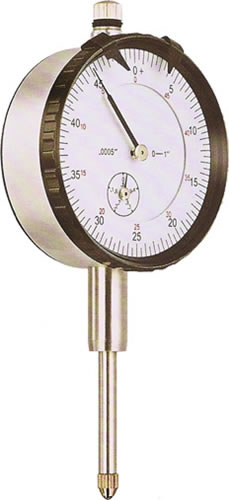

1" Dial indicator Type-B
  • Aluminum body.
  • Lifting screw with cushion rubber.
  • Broad knurl or common metal bezel is optional.
  • With tolerance hand or without tolerance hand is optional.
  • With dial lock screw.
  • Metal lug back is valid for standard.
0-1" dial indicator
Range Grad.
0-0.25"0.001"
0-0.5"0.001"
0-1"0.001"
Reference:
2″ Dial indicator
