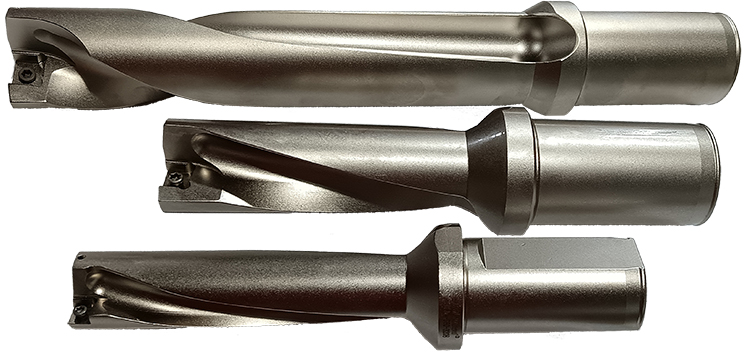

U drill / Indexable drill

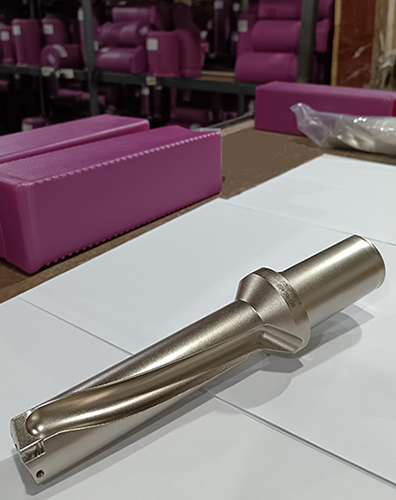

The U-drill bits from Sharpfine have received high praise from users.

According to customer requirements, we can produce U-drill bits with a length-to-diameter ratio of up to 5 times or even larger. Currently, the largest diameter we have customized for customers is 90mm.

Feature

The cutting edge is formed by the overlap of two indexable carbide inserts. The inner insert edge passes through
the center, while the rotating diameter of the outer insert edge’s tip equals the diameter of the drilled hole.

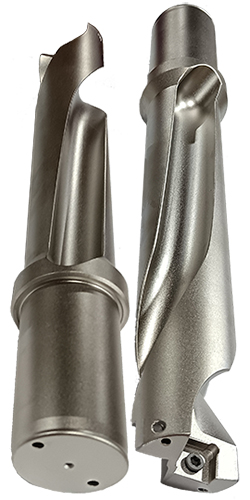

The spiral groove provides a greater chip discharge capacity.
The U drill is equipped with an internal cooling system design. The coolant flows to the cutting site through internal
cooling holes, and effective cooling helps reduce cutting temperatures and remove chips, extending the lifespan of the inserts.

U drill’s Indexable Insert

U drill’s Insert UM-PUD40 with PUC (TiAlN) coating Suitable for processing stainless steel.

U drill’s Insert UM-PUD25 with PUC-G (SiCrTiAlN) new coating Suitable for processing various general materials, the friction coefficient is smaller, and the surface quality will be better.

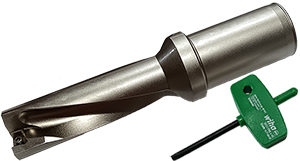

U drill - 3D / Indexable drill - Length = 3 x Diameter

3D U drill 　

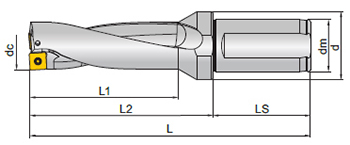

Designation	size (mm) / Размер dc	size (mm) / Размер dm	size (mm) / Размер L1	size (mm) / Размер L2	size (mm) / Размер Ls	size (mm) / Размер L	size (mm) / Размер d	Inserts	Screw	Wrench
HSD3-170-2006	17	20	51	68	50	118	28	SOLT06T206	SIC022050	370 T7x35
HSD3-180-2506	18	25	54	71	56	127	33	SOLT06T206	SIC022050	370 T7x35
HSD3-190-2506	19	25	57	75	56	131	33	SOLT06T206	SIC022050	370 T7x35
HSD3-200-2507	20	25	60	78	56	134	33	SOLT070308	SIC025065	370 T7x35
HSD3-210-2507	21	25	66	85	56	141	33	SOLT070308	SIC025065	370 T7x35
HSD3-220-2507	22	25	66	85	56	141	33	SOLT070308	SIC025065	370 T7x35
HSD3-230-2507	23	25	69	89	56	145	33	SOLT070308	SIC025065	370 T7x35
HSD3-240-3208	24	32	72	92	60	152	42	SOLT080308	SIC030072	370 T9x40
HSD3-250-3208	25	32	78	96	60	156	42	SOLT080308	SIC030072	370 T9x40
HSD3-260-3208	26	32	81	99	60	159	42	SOLT080308	SIC030072	370 T9x40
HSD3-270-3208	27	32	81	103	60	163	42	SOLT080308	SIC030072	370 T9x40
HSD3-280-3208	28	32	84	106	60	166	42	SOLT080308	SIC030072	370 T9x40
HSD3-290-3210	29	32	87	110	60	170	42	SOLT10T308	SIC035100AS	365 T15x45
HSD3-300-3210	30	32	90	113	60	173	42	SOLT10T308	SIC035100AS	365 T15x45
HSD3-310-4010	31	40	93	117	70	185	48	SOLT10T308	SIC035100AS	365 T15x45
HSD3-320-4010	32	40	96	120	70	188	48	SOLT10T308	SIC035100AS	365 T15x45
HSD3-330-4010	33	40	99	124	70	192	48	SOLT10T308	SIC035100AS	365 T15x45
HSD3-340-4011	34	40	102	127	70	195	48	SOLT110408	SIC035100AS	365 T15x45
HSD3-350-4011	35	40	105	131	70	199	48	SOLT110408	SIC035100AS	365 T15x45
HSD3-360-4011	36	40	108	134	70	202	48	SOLT110408	SIC035100AS	365 T15x45
HSD3-370-4011	37	40	111	138	70	206	48	SOLT110408	SIC035100AS	365 T15x45
HSD3-380-4011	38	40	114	141	70	209	48	SOLT110408	SIC035100AS	365 T15x45
HSD3-390-4013	39	40	117	145	70	213	48	SOLT130508	SIC045100A	365 T20x45
HSD3-400-4013	40	40	120	148	70	216	48	SOLT130508	SIC045100A	365 T20x45
HSD3-410-4013	41	40	123	152	70	220	48	SOLT130508	SIC045100A	365 T20x45
HSD3-420-4013	42	40	126	155	70	223	48	SOLT130508	SIC045100A	365 T20x45
HSD3-430-4013	43	40	129	159	70	227	48	SOLT130508	SIC045100A	365 T20x45
HSD3-440-4013	44	40	132	162	70	230	48	SOLT130508	SIC045100A	365 T20x45

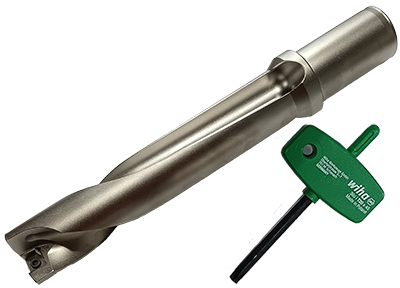

U drill - 4D / Indexable drill - Length = 4 x Diameter

4D U drill 　

Designation	size (mm) / Размер dc	size (mm) / Размер dm	size (mm) / Размер L1	size (mm) / Размер L2	size (mm) / Размер Ls	size (mm) / Размер L	size (mm) / Размер d	Inserts	Screw	Wrench
HSD4-170-2006	17	20	68	85	50	135	28	SOLT06T206	SIC022050	370 T7x35
HSD4-180-2506	18	25	72	89	56	145	33	SOLT06T206	SIC022050	370 T7x35
HSD4-190-2506	19	25	76	94	56	150	33	SOLT06T206	SIC022050	370 T7x35
HSD4-200-2507	20	25	80	98	56	154	33	SOLT070308	SIC025065	370 T7x35
HSD4-210-2507	21	25	84	103	56	159	33	SOLT070308	SIC025065	370 T7x35
HSD4-220-2507	22	25	88	107	56	163	33	SOLT070308	SIC025065	370 T7x35
HSD4-230-2507	23	25	92	112	56	168	33	SOLT070308	SIC025065	370 T7x35
HSD4-240-3208	24	32	96	116	60	176	42	SOLT080308	SIC030072	370 T9x40
HSD4-250-3208	25	32	100	121	60	181	42	SOLT080308	SIC030072	370 T9x40
HSD4-260-3208	26	32	104	125	60	185	42	SOLT080308	SIC030072	370 T9x40
HSD4-270-3208	27	32	108	130	60	190	42	SOLT080308	SIC030072	370 T9x40
HSD4-280-3208	28	32	112	134	60	194	42	SOLT080308	SIC030072	370 T9x40
HSD4-290-3210	29	32	116	139	60	199	42	SOLT10T308	SIC035100AS	365 T15x45
HSD4-300-3210	30	32	120	143	60	203	42	SOLT10T308	SIC035100AS	365 T15x45
HSD4-310-4010	31	40	124	145	70	216	48	SOLT10T308	SIC035100AS	365 T15x45
HSD4-320-4010	32	40	126	152	70	220	48	SOLT10T308	SIC035100AS	365 T15x45
HSD4-330-4010	33	40	132	157	70	225	48	SOLT10T308	SIC035100AS	365 T15x45
HSD4-340-4011	34	40	136	161	70	229	48	SOLT110408	SIC035100AS	365 T15x45
HSD4-350-4011	35	40	140	166	70	234	48	SOLT110408	SIC035100AS	365 T15x45
HSD4-360-4011	36	40	144	170	70	237	48	SOLT110408	SIC035100AS	365 T15x45
HSD4-370-4011	37	40	148	175	70	243	48	SOLT110408	SIC035100AS	365 T15x45
HSD4-380-4011	38	40	152	179	70	247	48	SOLT110408	SIC035100AS	365 T15x45
HSD4-390-4013	39	40	156	184	70	252	48	SOLT130508	SIC045100A	365 T20x45
HSD4-400-4013	40	40	160	188	70	256	48	SOLT130508	SIC045100A	365 T20x45
HSD4-410-4013	41	40	164	193	70	261	48	SOLT130508	SIC045100A	365 T20x45
HSD4-420-4013	42	40	168	197	70	265	48	SOLT130508	SIC045100A	365 T20x45
HSD4-430-4013	43	40	172	202	70	271	48	SOLT130508	SIC045100A	365 T20x45
HSD4-440-4013	44	40	176	206	70	274	48	SOLT130508	SIC045100A	365 T20x45

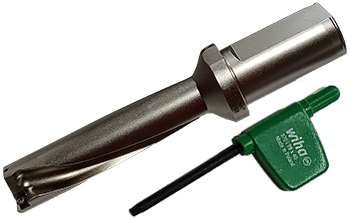

U drill - 5D / Indexable drill - Length = 5 x Diameter

5D U drill 　

Designation	size (mm) / Размер dc	size (mm) / Размер dm	size (mm) / Размер L1	size (mm) / Размер L2	size (mm) / Размер Ls	size (mm) / Размер L	size (mm) / Размер d	Inserts	Screw	Wrench
HSD5-170-2006	17	20	85	102	50	152	28	SOLT06T206	SIC022050	370 T7x35
HSD5-180-2506	18	25	90	107	56	163	33	SOLT06T206	SIC022050	370 T7x35
HSD5-190-2506	19	25	95	113	56	169	33	SOLT06T206	SIC022050	370 T7x35
HSD5-200-2507	20	25	100	118	56	174	33	SOLT070308	SIC025065	370 T7x35
HSD5-210-2507	21	25	105	124	56	180	33	SOLT070308	SIC025065	370 T7x35
HSD5-220-2507	22	25	110	129	56	185	33	SOLT070308	SIC025065	370 T7x35
HSD5-230-2507	23	25	115	135	56	191	33	SOLT070308	SIC025065	370 T7x35
HSD5-240-3208	24	32	120	140	60	200	42	SOLT080308	SIC030072	370 T9x40
HSD5-250-3208	25	32	125	146	60	206	42	SOLT080308	SIC030072	370 T9x40
HSD5-260-3208	26	32	130	151	60	211	42	SOLT080308	SIC030072	370 T9x40
HSD5-270-3208	27	32	135	157	60	217	42	SOLT080308	SIC030072	370 T9x40
HSD5-280-3208	28	32	140	162	60	222	42	SOLT080308	SIC030072	370 T9x40
HSD5-290-3210	29	32	145	168	60	228	42	SOLT10T308	SIC035100AS	365 T15x45
HSD5-300-3210	30	32	150	173	60	233	42	SOLT10T308	SIC035100AS	365 T15x45
HSD5-310-4010	31	40	155	176	70	246	48	SOLT10T308	SIC035100AS	365 T15x45
HSD5-320-4010	32	40	160	186	70	256	48	SOLT10T308	SIC035100AS	365 T15x45
HSD5-330-4010	33	40	165	190	70	260	48	SOLT10T308	SIC035100AS	365 T15x45
HSD5-340-4011	34	40	170	195	70	265	48	SOLT110408	SIC035100AS	365 T15x45
HSD5-350-4011	35	40	175	201	70	271	48	SOLT110408	SIC035100AS	365 T15x45
HSD5-360-4011	36	40	180	206	70	276	48	SOLT110408	SIC035100AS	365 T15x45
HSD5-370-4011	37	40	185	212	70	282	48	SOLT110408	SIC035100AS	365 T15x45
HSD5-380-4011	38	40	190	217	70	287	48	SOLT110408	SIC035100AS	365 T15x45
HSD5-390-4013	39	40	195	223	70	293	48	SOLT130508	SIC045100A	365 T20x45
HSD5-400-4013	40	40	200	228	70	298	48	SOLT130508	SIC045100A	365 T20x45
HSD5-410-4013	41	40	205	234	70	304	48	SOLT130508	SIC045100A	365 T20x45
HSD5-420-4013	42	40	210	239	70	309	48	SOLT130508	SIC045100A	365 T20x45
HSD5-430-4013	43	40	215	245	70	315	48	SOLT130508	SIC045100A	365 T20x45
HSD5-440-4013	44	40	220	250	70	320	48	SOLT130508	SIC045100A	365 T20x45
