Carbide End Mill For Aluminum alloys | Carbide End Mill for copper alloys | Carbide End Mill for non-ferrous metals

Solid Carbide End Mills for aluminum alloys

When you require tools optimized for specific materials or applications, you can order or customize our solid carbide end mills MN series products, dedicated for machining aluminum alloys, copper alloys, and other non-ferrous metals.

The unique three-flute design increases the available space for effective removal of iron chips without compromising the tool’s rigidity. The grooves of the MN end mills have been polished to enhance processing efficiency and chip evacuation, as well as improve the surface finish of the workpiece. Ideal for medium to large batch production

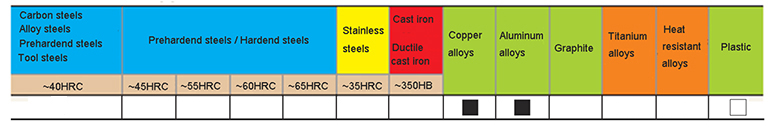

Recommended application ：

Material Group	Hardness	Compatibility
Carbon steels / Alloy steels / Prehardened steels / Tool steels	~40 HRC
	~45 HRC
	~55 HRC
	~60 HRC
Prehardened steels / Hardened steels	~65 HRC
Stainless steels	~35 HRC
Cast Iron / Ductile cast iron	~350 HB	■
Copper alloys		■
Aluminium alloys		■
Graphite
Titanium alloys
Heat resistant alloys
Plastic		□

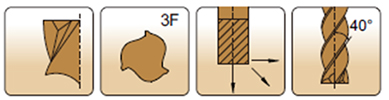

Solid Carbide End Mills MNE

Aluminum alloy，copper alloy and other non-ferrous metal special three-edge carbide end mill.

ISO material ：

Non-coating.

Ultrafine particle cemented carbide .

Special cutting edge design with excellent

geometric angle.

Solid Carbide Ball End Mill MNE Specifications

Specification	Rounded corner R	Dimentions （mm）				Number of cutting edges
Specification	Rounded corner R	Cutting diameter D	Cutting length L1	Overall length L	Shank diameter d	Number of cutting edges
D1-3-50-D4-3F MNE	-	1	3	50	4	3
D1.5-4.5-50-D4-3F MNE	-	1.5	4.5	50	4	3
D2-6-50-D4-3F MNE	-	2	6	50	4	3
D3-9-50-D4-3F MNE	-	3	9	50	4	3
D4-12-50-3F MNE	-	4	12	50	4	2
D4-16-75-3F MNE	-	4	16	75	4	3
D4-20-100-3F MNE	-	4	20	100	4	3
D5-15-50-D6-3F MNE	-	5	15	50	6	3
D5-20-75-D6-3F MNE	-	5	20	75	6	3
D5-25-100-D6-3F MNE	-	5	25	100	6	3
D6-18-50-3F MNE	-	6	18	50	6	3
D6-24-75-3F MNE	-	6	24	75	6	3
D6-30-100-3F MNE	-	6	30	30	6	3
D8-24-60-3F MNE	-	8	24	60	8	3
D8-25-75-3F MNE	-	8	25	75	8	3
D8-35-100-3F MNE	-	8	35	100	8	3
D10-30-75-3F MNE	-	10	30	75	10	3
D10-40-100-3F MNE	-	10	40	100	10	3
D12-36-75-3F MNE	-	12	36	75	12	3
D12-45-100-3F MNE	-	12	45	100	12	3
D16-45-100-3F MNE	-	16	45	100	16	3
D16-65-150-3F MNE	-	16	65	150	16	3

Specification	Rounded corner R	Cutting diameter D (mm)	Cutting length L1 (mm)	Overall length L (mm)	Shank diameter d (mm)	Number of cutting edges
D1-3-50-D4-3F MNE	-	1	3	50	4	3
D1.5-4.5-50-D4-3F MNE	-	1.5	4.5	50	4	3
D2-6-50-D4-3F MNE	-	2	6	50	4	3
D3-9-50-D4-3F MNE	-	3	9	50	4	3
D4-12-50-3F MNE	-	4	12	50	4	2
D4-16-75-3F MNE	-	4	16	75	4	3
D4-20-100-3F MNE	-	4	20	100	4	3
D5-15-50-D6-3F MNE	-	5	15	50	6	3
D5-20-75-D6-3F MNE	-	5	20	75	6	3
D5-25-100-D6-3F MNE	-	5	25	100	6	3
D6-18-50-3F MNE	-	6	18	50	6	3
D6-24-75-3F MNE	-	6	24	75	6	3
D6-30-100-3F MNE	-	6	30	30	6	3
D8-24-60-3F MNE	-	8	24	60	8	3
D8-25-75-3F MNE	-	8	25	75	8	3
D8-35-100-3F MNE	-	8	35	100	8	3
D10-30-75-3F MNE	-	10	30	75	10	3
D10-40-100-3F MNE	-	10	40	100	10	3
D12-36-75-3F MNE	-	12	36	75	12	3
D12-45-100-3F MNE	-	12	45	100	12	3
D16-45-100-3F MNE	-	16	45	100	16	3
D16-65-150-3F MNE	-	16	65	150	16	3

Notice: Refer to the content above about accuracy.

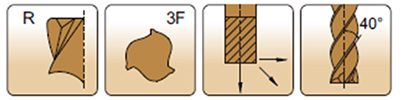

Solid Carbide End Mills MNR

Aluminum alloy，copper alloy and other non-ferrous metal special three-edge carbide end mill with rounded corner.

ISO material ：

Non-coating.

Ultrafine particle cemented carbide .

Special cutting edge design with excellent geometric angle.

Solid Carbide Round End Mill MNR Specifications

Specification	Rounded corner R	Dimentions （mm）				Number of cutting edges
Specification	Rounded corner R	Cutting diameter D	Cutting length L1	Overall length L	Shank diameter d&	Number of cutting edges
D1R0.2-3-50-D4-3F MNR	0.2	1	3	50	4	3
D1.5R0.2-4.5-50-D4-3F MNR	0.2	1.5	4.5	50	4	3
D2R0.2-6-50-D4-3F MNR	0.2	2	6	50	4	3
D3R0.2-9-50-D4-3F MNR	0.2	3	9	50	4	3
D4R0.2-12-50-3F MNR	0.2	4	12	50	4	3
D4R0.5-12-50-3F MNR	0.5	4	12	50	4	3
D4R0.5-16-75-3F MNR	0.5	4	16	75	4	3
D4R1-11-50-3F MNR	1	4	11	50	4	3
D4R1-16-75-3F MNR	1	4	16	75	4	3
D6R0.2-18-50-3F MNR	0.2	6	18	50	6	3
D6R0.2-24-75-3F MNR	0.2	6	24	75	6	3
D6R0.2-30-100-3F MNR	0.2	6	30	100	6	3
D6R0.5-18-50-3F MNR	0.5	6	18	50	6	3
D6R0.5-24-75-3F MNR	0.5	6	24	75	6	3
D6R0.5-30-100-3F MNR	0.5	6	30	100	6	3
D6R1-18-50-3F MNR	1	6	18	50	6	3
D6R1-24-75-3F MNR	1	6	24	75	6	3
D6R1-30-100-3F MNR	1	6	30	100	6	3
D8R0.5-24-60-3F MNR	0.5	8	24	60	8	3
D8R0.5-24-75-3F MNR	0.5	8	24	75	8	3
D8R0.5-32-100-3F MNR	0.5	8	32	100	8	3
D8R1-24-60-3F MNR	1	8	24	60	8	3
D8R1-24-75-3F MNR	1	8	24	75	8	3
D8R1-32-100-3F MNR	1	8	32	100	8	3
D8R2-24-60-3F MNR	2	8	24	60	8	3
D8R2-24-75-3F MNR	2	8	24	75	8	3
D8R2-32-100-3F MNR	2	8	32	100	8	3
D8R3-24-60-3F MNR	3	8	24	60	8	3
D8R3-24-75-3F MNR	3	8	24	75	8	3
D8R3-32-100-3F MNR	3	8	32	100	8	3
D10R0.5-30-75-3F MNR	0.5	10	30	75	10	3
D10R0.5-35-100-3F MNR	0.5	10	35	100	10	3
D10R1-30-75-3F MNR	1	10	30	75	10	3
D10R1-35-100-3F MNR	1	10	35	100	10	3
D10R3-30-75-3F MNR	3	10	30	75	10	3
D10R3-35-100-3F MNR	3	10	35	100	10	3
D12R0.5-30-75-3F MNR	0.5	12	30	75	12	3
D12R0.5-40-100-3F MNR	0.5	12	40	100	12	3
D12R1-30-75-3F MNR	1	12	30	75	12	3
D12R1-40-100-3F MNR	1	12	40	100	12	3
D12R3-30-75-3F MNR	3	12	30	75	12	3
D12R3-40-100-3F MNR	3	12	40	100	12	3
D16R1-45-100-3F MNR	1	16	45	100	16	3
D16R1-60-150-3F MNR	1	16	60	150	16	3
D16R3-45-100-3F MNR	3	16	45	100	16	3
D16R3-60-150-3F MNR	3	16	60	150	16	3
D20R1-50-100-3F MNR	1	20	50	100	20	3
D20R1-70-150-3F MNR	1	20	70	150	20	3
D20R3-50-100-3F MNR	3	20	50	100	20	3
D20R3-70-150-3F MNR	3	20	70	150	20	3

Specification	Rounded corner R	Cutting diameter D	Cutting length L1	Overall length L	Shank diameter d	Number of cutting edges
D1R0.2-3-50-D4-3F MNR	0.2	1	3	50	4	3
D1.5R0.2-4.5-50-D4-3F MNR	0.2	1.5	4.5	50	4	3
D2R0.2-6-50-D4-3F MNR	0.2	2	6	50	4	3
D3R0.2-9-50-D4-3F MNR	0.2	3	9	50	4	3
D4R0.2-12-50-3F MNR	0.2	4	12	50	4	3
D4R0.5-12-50-3F MNR	0.5	4	12	50	4	3
D4R0.5-16-75-3F MNR	0.5	4	16	75	4	3
D4R1-11-50-3F MNR	1	4	11	50	4	3
D4R1-16-75-3F MNR	1	4	16	75	4	3
D6R0.2-18-50-3F MNR	0.2	6	18	50	6	3
D6R0.2-24-75-3F MNR	0.2	6	24	75	6	3
D6R0.2-30-100-3F MNR	0.2	6	30	100	6	3
D6R0.5-18-50-3F MNR	0.5	6	18	50	6	3
D6R0.5-24-75-3F MNR	0.5	6	24	75	6	3
D6R0.5-30-100-3F MNR	0.5	6	30	100	6	3
D6R1-18-50-3F MNR	1	6	18	50	6	3
D6R1-24-75-3F MNR	1	6	24	75	6	3
D6R1-30-100-3F MNR	1	6	30	100	6	3
D8R0.5-24-60-3F MNR	0.5	8	24	60	8	3
D8R0.5-24-75-3F MNR	0.5	8	24	75	8	3
D8R0.5-32-100-3F MNR	0.5	8	32	100	8	3
D8R1-24-60-3F MNR	1	8	24	60	8	3
D8R1-24-75-3F MNR	1	8	24	75	8	3
D8R1-32-100-3F MNR	1	8	32	100	8	3
D8R2-24-60-3F MNR	2	8	24	60	8	3
D8R2-24-75-3F MNR	2	8	24	75	8	3
D8R2-32-100-3F MNR	2	8	32	100	8	3
D8R3-24-60-3F MNR	3	8	24	60	8	3
D8R3-24-75-3F MNR	3	8	24	75	8	3
D8R3-32-100-3F MNR	3	8	32	100	8	3
D10R0.5-30-75-3F MNR	0.5	10	30	75	10	3
D10R0.5-35-100-3F MNR	0.5	10	35	100	10	3
D10R1-30-75-3F MNR	1	10	30	75	10	3
D10R1-35-100-3F MNR	1	10	35	100	10	3
D10R3-30-75-3F MNR	3	10	30	75	10	3
D10R3-35-100-3F MNR	3	10	35	100	10	3
D12R0.5-30-75-3F MNR	0.5	12	30	75	12	3
D12R0.5-40-100-3F MNR	0.5	12	40	100	12	3
D12R1-30-75-3F MNR	1	12	30	75	12	3
D12R1-40-100-3F MNR	1	12	40	100	12	3
D12R3-30-75-3F MNR	3	12	30	75	12	3
D12R3-40-100-3F MNR	3	12	40	100	12	3
D16R1-45-100-3F MNR	1	16	45	100	16	3
D16R1-60-150-3F MNR	1	16	60	150	16	3
D16R3-45-100-3F MNR	3	16	45	100	16	3
D16R3-60-150-3F MNR	3	16	60	150	16	3
D20R1-50-100-3F MNR	1	20	50	100	20	3
D20R1-70-150-3F MNR	1	20	70	150	20	3
D20R3-50-100-3F MNR	3	20	50	100	20	3
D20R3-70-150-3F MNR	3	20	70	150	20	3

Notice: Refer to the content above about accuracy.

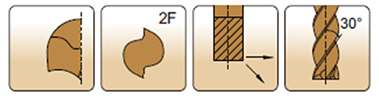

Solid Carbide End Mills MNB

Aluminum alloy，copper alloy and other non-ferrous metal special double-edged carbide ball nose end mill

ISO material ：

Non-coating.

Ultrafine particle cemented carbide .

Special cutting edge design with excellent

geometric angle.

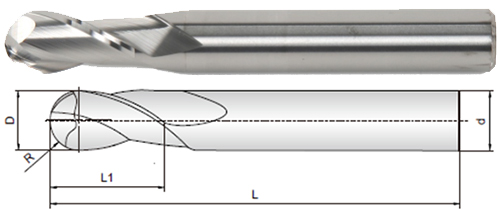

Solid Carbide Round End Mill MNB Specifications

Specification	Rounded corner R	Dimentions （mm）				Number of cutting edges
Specification	Rounded corner R	Cutting diameter D	Cutting length L1	Overall length L	Shank diameter d	Number of cutting edges
D1R0.5-2-50-D4-2F MNB	0.5	1	2	50	4	2
D1.5R0.75-3-50-D4-2F MNB	0.75	1.5	3	50	4	2
D2R1-4-50-D4-2F MNB	1	2	4	50	4	2
D3R1.5-6-50-D4-2F MNB	1.5	3	6	50	4	2
D4R2-8-50-2F MNB	2	4	8	50	4	2
D4R2-8-75-2F MNB	2	4	8	75	4	2
D4R2-8-100-2F MNB	2	4	8	100	4	2
D6R3-12-50-2F MNB	3	6	12	50	6	2
D6R3-12-75-2F MNB	3	6	12	75	6	2
D6R3-12-100-2F MNB	3	6	12	100	6	2
D8R4-16-60-2F MNB	4	8	16	60	8	2
D8R4-16-75-2F MNB	4	8	16	75	8	2
D8R4-16-100-2F MNB	4	8	16	100	8	2
D10R5-20-75-2F MNB	5	10	20	75	10	2
D10R5-20-100-2F MNB	5	10	20	100	10	2
D12R6-24-75-2F MNB	6	12	24	75	12	2
D12R6-24-100-2F MNB	6	12	24	100	12	2

Specification	Rounded corner R	Cutting diameter D	Cutting length L1	Overall length L	Shank diameter d	Number of cutting edges
D1R0.5-2-50-D4-2F MNB	0.5	1	2	50	4	2
D1.5R0.75-3-50-D4-2F MNB	0.75	1.5	3	50	4	2
D2R1-4-50-D4-2F MNB	1	2	4	50	4	2
D3R1.5-6-50-D4-2F MNB	1.5	3	6	50	4	2
D4R2-8-50-2F MNB	2	4	8	50	4	2
D4R2-8-75-2F MNB	2	4	8	75	4	2
D4R2-8-100-2F MNB	2	4	8	100	4	2
D6R3-12-50-2F MNB	3	6	12	50	6	2
D6R3-12-75-2F MNB	3	6	12	75	6	2
D6R3-12-100-2F MNB	3	6	12	100	6	2
D8R4-16-60-2F MNB	4	8	16	60	8	2
D8R4-16-75-2F MNB	4	8	16	75	8	2
D8R4-16-100-2F MNB	4	8	16	100	8	2
D10R5-20-75-2F MNB	5	10	20	75	10	2
D10R5-20-100-2F MNB	5	10	20	100	10	2
D12R6-24-75-2F MNB	6	12	24	75	12	2
D12R6-24-100-2F MNB	6	12	24	100	12	2

Notice: Refer to the content above about accuracy.

Recommended Cutting Data

Aluminium alloy —— Side milling

workpiece material		cutting output （mm)	Vc m/min	Cutting diameter (mm)	1	2	4	6	8	10	12	16	20
	reflectal, cast aluminium alloy (Si<12%)	ap≤1.5D	150 (60-350)	rotate speed (r/min)	16000	12700	12000	10600	10000	9500	9280	7000	5600
	reflectal, cast aluminium alloy (Si<12%)	ae≤0.2D	150 (60-350)	feed speed (mm/min)	650	850	1430	1530	1670	2050	2800	3000	3150
	copper alloy (HB200)	ap≤1.5D	150 (60-350)	rotate speed (r/min)	16000	12700	12000	10600	10000	9500	9280	7000	5600
	copper alloy (HB200)	ae≤0.2D	150 (60-350)	feed speed (mm/min)	720	900	1200	1200	1500	1800	2225	2500	3000

Workpiece Material	Cutting Condition	Vc (m/min)	Parameter	1mm	2mm	4mm	6mm	8mm	10mm	12mm	16mm	20mm
Reflectal cast aluminium alloy (Si<12%)	ap≤1.5D	150 (60-350)	Rotation speed (r/min)	16000	12700	12000	10600	10000	9500	9280	7000	5600
Reflectal cast aluminium alloy (Si<12%)	ae≤0.2D	150 (60-350)	Feed speed (mm/min)	650	850	1430	1530	1670	2050	2800	3000	3150
Copper alloy (HB200)	ap≤1.5D	150 (60-350)	Rotation speed (r/min)	16000	12700	12000	10600	10000	9500	9280	7000	5600
Copper alloy (HB200)	ae≤0.2D	150 (60-350)	Feed speed (mm/min)	720	900	1200	1200	1500	1800	2225	2500	3000

Notice: Refer to the content above about accuracy.

Aluminium alloy —— Profiling milling

workpiece material		cutting output （mm)	Vc m/min	Cutting diameter (mm)	1	2	4	6	8	10	12	16	20
	reflectal, cast aluminium alloy (Si<12%)	ap≤0.3D	150 (60-350)	rotate speed (r/min)	16000	12700	12000	10600	10000	9500	9280	7000	5600
	reflectal, cast aluminium alloy (Si<12%)	ae≤0.3D	150 (60-350)	feed speed (mm/min)	650	850	1430	1530	1670	2050	2800	3000	3150
	copper alloy (HB200)	ap≤0.3D	150 (60-350)	rotate speed (r/min)	16000	12700	12000	10600	10000	9500	9280	7000	5600
	copper alloy (HB200)	ae≤0.3D	150 (60-350)	feed speed (mm/min)	720	900	1200	1200	1500	1800	2225	2500	3000

Workpiece Material	Cutting Condition	Vc (m/min)	Parameter Type	1mm	2mm	4mm	6mm	8mm	10mm	12mm	16mm	20mm
Material	Condition	Vc (m/min)	Parameter	1mm	2mm	4mm	6mm	8mm	10mm	12mm	16mm	20mm
"Reflectal cast aluminium alloy (Si<12%)"	"ap≤0.3D"	"150 (60-350)"	"Rotation speed (r/min)"	16000	12700	12000	10600	10000	9500	9280	7000	5600
"Reflectal cast aluminium alloy (Si<12%)"	"ae≤0.3D"	"150 (60-350)"	"Feed speed (mm/min)"	650	850	1430	1530	1670	2050	2800	3000	3150
"Copper alloy (HB200)"	"ap≤0.3D"	"150 (60-350)"	"Rotation speed (r/min)"	16000	12700	12000	10600	10000	9500	9280	7000	5600
"Copper alloy (HB200)"	"ae≤0.3D"	"150 (60-350)"	"Feed speed (mm/min)"	720	900	1200	1200	1500	1800	2225	2500	3000
