Vernier Scriber

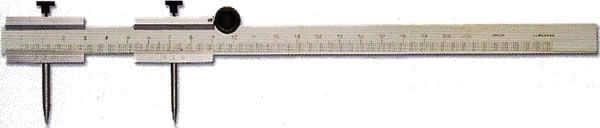

Vernier Scriber with Solid-vernier

Vernier scriber with solid-vernier is manufactured according to DIN862.
Made of high quality steel and manufactured with modern technology.
Surfaces are chromed and the measuring faces are specially hardened.

Vernier scriber with solid-vernier
Range	Graduation	Range	Graduation
0-300mm	0.1mm	0-1500mm	0.1mm
0-500mm	0.1mm	0-2000mm	0.1mm
0-1000mm	0.1mm	0-3000mm	0.1mm

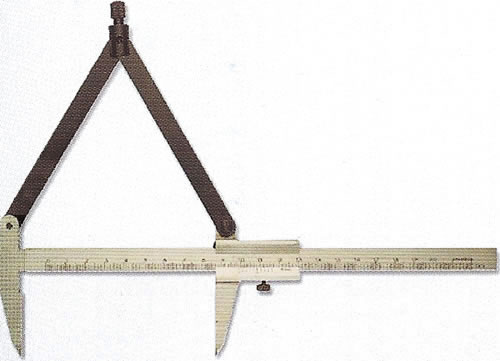

Compasses Vernier Scriber

Compasses vemier scriber is manufactured according to DIN862.
Made of stainless steel and manufactured with modern technology.
The main scale and the vernier are satin chromed.
The beam and the vemier are entirely heat-treated,and all the measuring faces are hardened.
Special requirement can be satisfied upon request.

Compasses vernier scriber
Range	Graduation	Range	Graduation
0-150mm	0.1mm	0-2500mm	0.1mm
0-200mm	0.1mm	0-300mm	0.1mm

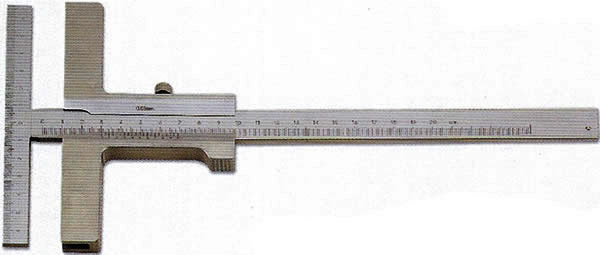

Vernier Scriber-T Type

Vemier scriber-T type is manufactured according to DIN862.
Made of stainless steel and manufactured with modern technology.
The main scale and the vemier are satin chromed.
The beam and the vemier are entirely heat-treated,and all the measuring faces are specially hardened.
Special requirement can be satisfied upon request.

Vernier scriber-T type
Range	Graduation	Bridge-length	Range	Graduation	Bridge-length
0-200mm	0.05mm	135mm	0-400mm	0.05mm	160mm
0-300mm	0.05mm	160mm

Vernier Scriber with Compass Model

The products are manufactured according to GB/T1214.2 Q/JLJ55.
Made of high quality steel and manufactured with modem technology.
Surfaces are chromed and the measuring faces are specially hardened

Vernier scriber with compass model
Range	Graduation	Jaw-length	Range	Graduation	Jaw-length
0-300mm	0.10mm	39.5mm	0-500mm	0.10mm	39.5mm
