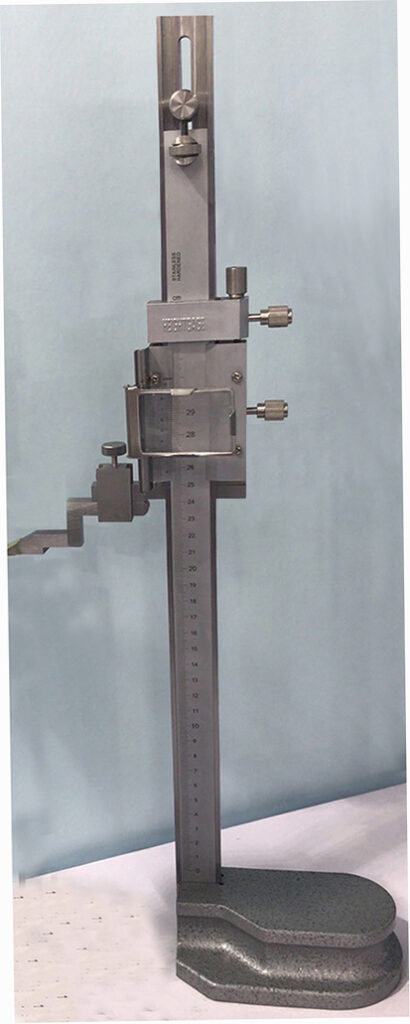

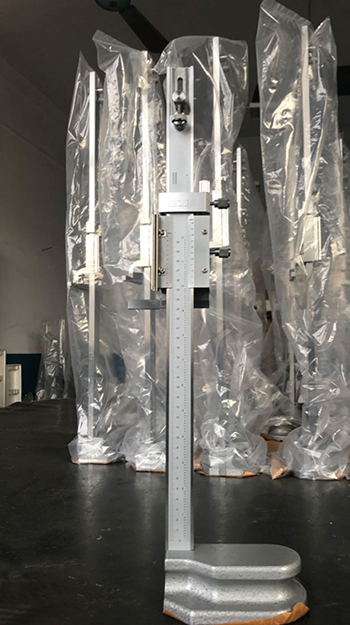

Vernier Height Gauge

The vernier height gauge has a simple and durable structure, and it can be budget-friendly, making it suitable for environments where frequent measurements are not required or where conditions are limited.

Height Gauge with magnifying glass

Made of stainless steel.
Carbide tipped scriber.
With fine adjustment.
Equipped with a magnifying glass, it helps with reading the vernier scale.
The main scale on the vernier height gauge is adjustable, allowing for the adjustment of the relative zero point.

SPECEFICATIONS

Vernier height gauge (INCH)

Range	Graduation	Accuracy
0-300mm	0.02mm	±0.03mm
0-600mm	0.02mm	±0.06mm
0-450mm	0.02mm	±0.04mm
0-1000mm	0.02mm	±0.06mm
0-500mm	0.02mm	±0.04mm
0-1500mm	0.02mm	±0.09mm

Vernier height gauge ( METRIC)

Range	Graduation	Accuracy
0-12"	0.001"	±0.001"
0-24"	0.001"	±0.0025"
0-18"	0.001"	±0.0015"
0-40"	0.001"	±0.0025"
0-20"	0.001"	±0.0015"
0-60"	0.001"	±0.0035"

Vernier height gauge with both METRIC and INCH dual scales

Range	Graduation	Accuracy
0-300mm / 0-12"	0.02/0.001"	±0.03mm
0-600mm / 0-24"	0.02/0.001"	±0.06mm
0-450mm / 0-18"	0.02/0.001"	±0.03mm
0-1000mm / 0-40"	0.02/0.001"	±0.06mm
0-500mm / 0-20"	0.02/0.001"	±0.04mm
0-1500mm / 0-60"	0.02/0.001"	±0.09mm

Vernier height gauge with both INCH and METRIC dual scales

Range	Graduation	Accuracy
0-12"/0-300mm	0.001"/0.002mm	±0.001"
0-24"/0-600mm	0.001"/0.002mm	±0.0025"
0-18"/0-450mm	0.001"/0.002mm	±0.0015"
0-40"/0-1000mm	0.001"/0.002mm	±0.0025"
0-20"/0-500mm	0.001"/0.002mm	±0.0015"
0-60"/0-1500mm	0.001"/0.002mm	±0.0035"

Reference:

Digital height gauge Dial height gauge High precision digital height gauge
