Vernier Depth Gauge

  • With screw at the back of far end of caliper bar.
  • Made of stainless steel or carbon steel.

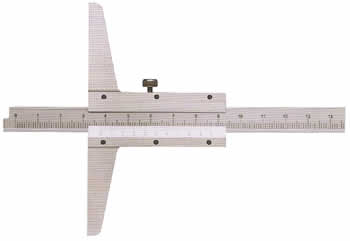

Vernier depth gauge
Vernier depth gauge Type-A1
Vernier depth gauges
Vernier depth gauges Type-A2, Mono-block vernier.
Vernier depth gage

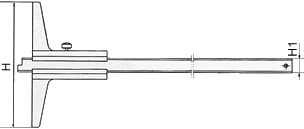

Vernier depth gage sketch

Vernier depth gage (Hook type)

  • For depth, step, thickness, internal and external groove measurement.
  • With screw at the back of far end of caliper bar.
  • Made of stainless steel or carbon steel.
  • There are two types of hooks for choice (shape-I & shape-2).

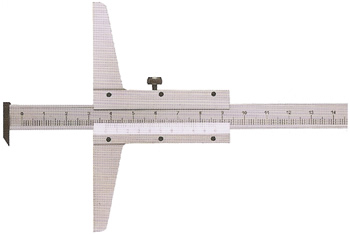

Vernier depth gage(hook type)
Vernier depth gage(hook type)Type-B1
Vernier depth gauges(hook type)
Vernier depth gauges(hook type) Type-B2, Mono-block vernier.
Vernier depth gauges

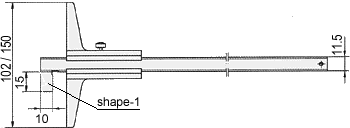

Vernier depth gauges sketch-1
Vernier depth gage

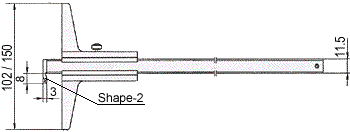

Vernier depth gage sketch-2
Vernier depth gage Type-A1 Type-A2 Type-B1 Type-B2
Range  Graduation   Accuracy Range  Graduation Accuracy
0-150mm 0.05mm ±0.05mm 0-150mm / 6" 0.05mm / 1/128" ±1Graduation
0-200mm 0.05mm ±0.05mm 0-200mm / 8" 0.05mm / 1/128" ±1Graduation
0-300mm 0.05mm ±0.08mm 0-300mm / 12" 0.05mm / 1/128" ±1.6Graduation
0-500mm 0.05mm ±0.08mm 0-500mm / 20" 0.05mm / 1/128" ±1.6Graduation
0-150mm 0.02mm ±0.02mm 0-150mm / 6" 0.02mm / 0.001" ±1Graduation
0-200mm 0.02mm ±0.03mm 0-200mm / 8" 0.02mm / 0.001" ±1.5Graduation
0-300mm 0.02mm ±0.04mm 0-300mm / 12" 0.02mm / 0.001" ±2Graduation
0-500mm 0.02mm ±0.05mm 0-500mm / 20" 0.02mm / 0.001" ±2.5Graduation
0-1000mm 0.02mm ±0.07mm 0-1000mm / 40" 0.02mm / 0.001" ±3Graduation
6" vernier depth gage, 8" vernier depth gauge, 12" vernier depth gauges, 20" vernier depth gage, 40" vernier depth gauges.

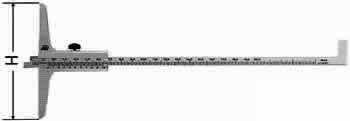

Multifunction Vernier Depth Gauges

  • For depth, step,internal and external groove measurements.
  • With laser markings on double sides for two-way measurements.
  • Made of stainless steel or carbon steel.
Uni-micrometer
Vernier depth gauges Type-C
Uni-micrometer
Vernier depth gauge Type-C
Range Grad. H mm Accuracy Range Grad. H mm Accuracy
0-200mm 0.02mm 105 ±0.03mm 0-200mm 0.05mm 105 ±0.05mm
0-300mm 0.02mm 125 / 150 ±0.04mm 0-300mm 0.05mm 125 / 150 ±0.08mm
0-450mm 0.02mm 125 / 150 ±0.05mm 0-450mm 0.05mm 125 / 150 ±0.10mm

Vernier Depth Gauge with Dial

  • Dial depth gauge is easy to operate. High efficiency.
  • Different measuring heads can be made according to request.
  • Dial depth gauge is made of stainless steel.
Vernier depth gage
Vernier depth gage Type-D
Vernier depth gauge Type-D
RangeGraduation  Accuracy RangeGraduation  Accuracy
0-150mm 0.02mm ±0.02mm 0-6" 0.001" ±0.001"
0-200mm 0.02mm ±0.03mm 0-8" 0.001" ±0.0015"
0-300mm 0.02mm ±0.04mm 0-12" 0.001" ±0.002"
0-150mm / 6" 0.02mm / 0.001" ±0.02mm / ±0.001" 0-6" / 150mm 0.001" ±0.001" / ±0.02mm
0-200mm / 8" 0.02mm / 0.001" ±0.03mm / ±0.0015" 0-8" / 200mm 0.001" ±0.0015" / ±0.03mm
0-300mm / 12" 0.02mm / 0.001" ±0.04mm / ±0.002" 0-12" / 300mm 0.001" ±0.0012" / ±0.04mm
