Offset Caliper

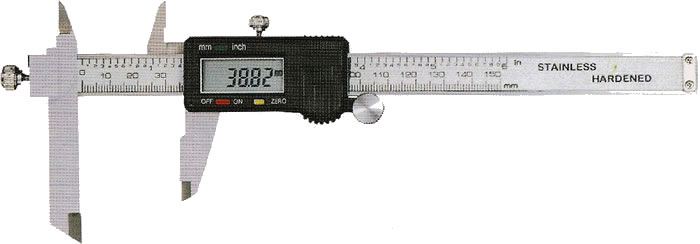

Digital Offset Caliper

  • The main scale jaw can be slid up and down to facilitate measurement of stepped sections.
  • Manual power on/off.
  • Zero setting at any position.
  • Metric/lnch system conversion at any position.
  • With data output interfaæ.

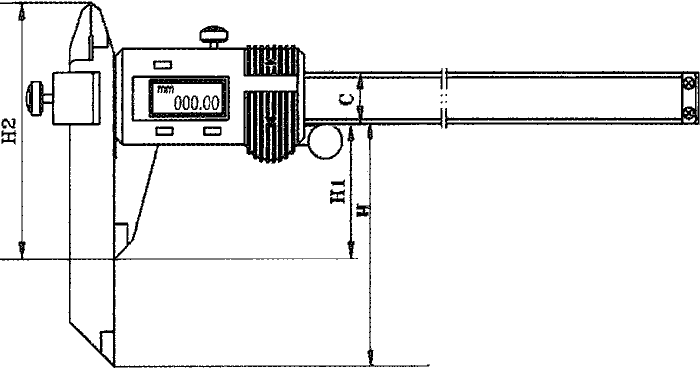

Offset caliper Type-A
Offset caliper Type-A
Range mm/in Resolution mm/in H1 mm H2 mm H mm C mm Accuracy mm
0-150 / 6"0.01/0.0005"40777316±0.03
0-200 / 8"0.01/0.0005"5090.579.516±0.04
0-300 / 12"0.01/0.0005"601028817±0.05
0-500 / 20"0.01/0.0005"10016914125±0.07
6" offset calipers, 8" offset calipers, 12" offset calipers, 20" offset calipers.

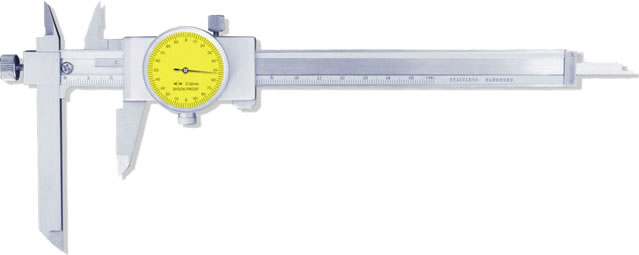

Dial Offset Calipers

  • Main scale jaw can be slid up and down to facilitate measurement of stepped sections.
  • Easy to read clearly.
  • With an adjustable dial face which can be fastened by a clamping screw.
Offset calipers Type-B
Offset calipers Type-B
Range mm/in Resolution mm/in H1 mm H2 mm H mm C mm Accuracy mm
RangeGraduationRange/rev
0-150mm0.02mm2mm
0-200mm0.02mm2mm
0-300mm0.02mm2mm
6" offset caliper, 8" offset caliper, 12" offset caliper.
