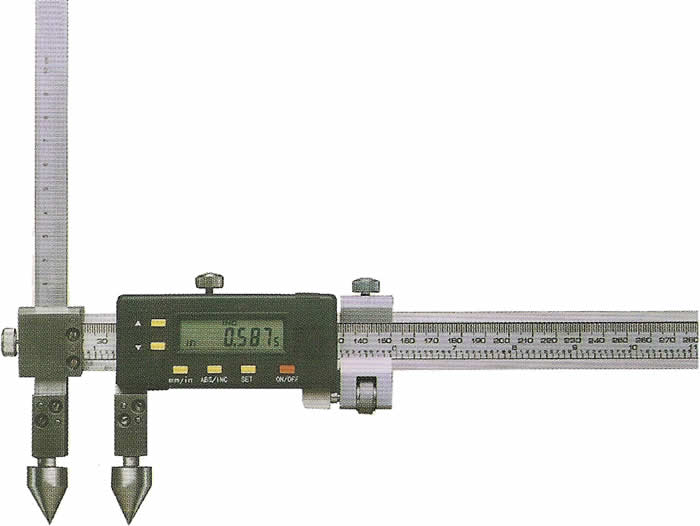

Multi-purpose Caliper

Multi-purpose Caliper

  • LCD display for easy reading.
  • Zero setting at any position.
  • Metric/lnch system conversion at any position.
  • With data output interface.
  • With data presetting function.
  • Absolute measurement and comparison measurement conversion at any position.
Multi-purpose digital caliper Type-A

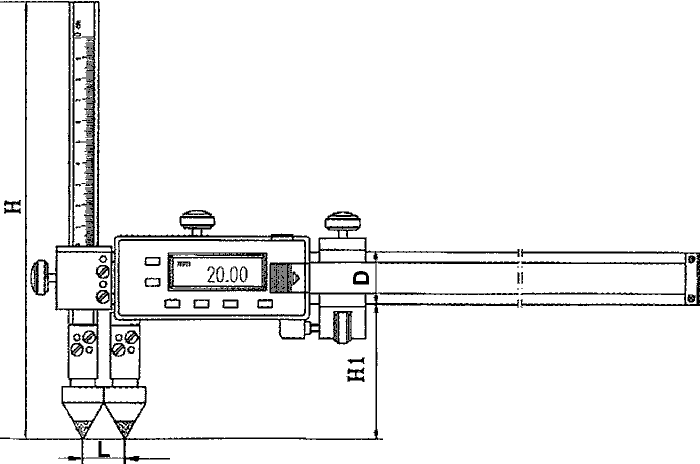

Multi-purpose digital caliper Sketch
Type-A Multi-purpose digital caliper
Range Resolution H H1 D L Accuracy
20-150mm0.01mm / 0.0005"180mm50mm16mm20mm±0.06mm
20-200mm0.01mm / 0.0005"180mm50mm16mm20mm±0.06mm
20-300mm0.01mm / 0.0005"180mm50mm17mm20mm±0.09mm
20-500mm0.01mm / 0.0005"216.5mm61.5mm25mm20mm±0.09mm
20-1000mm0.01mm / 0.0005"400mm70mm32mm20mm±0.20mm
30-2000mm0.01mm / 0.0005"625mm108mm48mm30mm±0.20mm
12" combination square, 300mm combination square, (6" combination square), (150mm combination square).

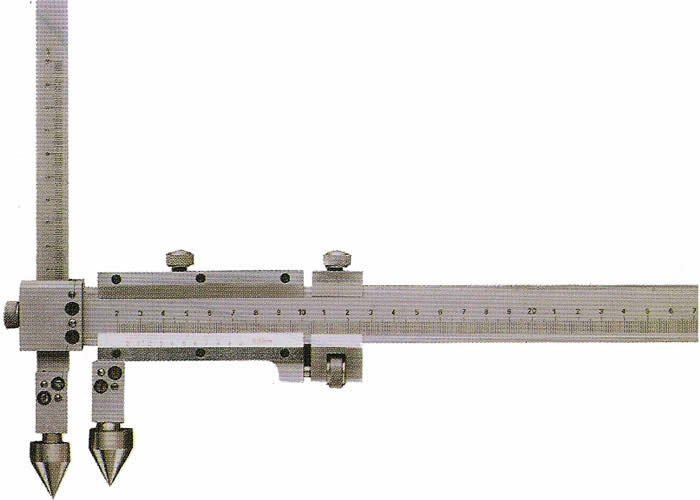

Multi-purpose Vernier Caliper

  • Center distance between two holes can be easily obtained by moving slider.
  • Center distance between two step holes can be obtained too.
  • Can be used to measure the diameter of big hole.
  • With external measurement.
  • With step measurement.
  • With carbide tipped awl anvils for scribing.
Multi-purpose vernier caliper Type-B

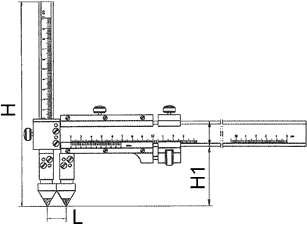

Multi-purpose digital caliper Sketch
Type-B Multi-purpose vernier caliper
Range Graduation H H1 D L Accuracy
20-150mm0.02mm180mm50mm16mm20mm±0.06mm
20-200mm0.02mm180mm50mm16mm20mm±0.06mm
20-300mm0.02mm180mm50mm17mm20mm±0.09mm
20-500mm0.02mm216.5mm61.5mm25mm20mm±0.09mm
20-1000mm0.02mm400mm70mm32mm20mm±0.20mm
30-2000mm0.02mm625mm108mm48mm30mm±0.20mm
