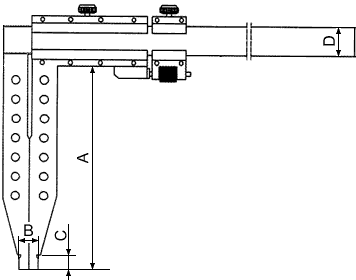

| Range | Resolution | A | B | C | D |
|---|---|---|---|---|---|
| 0-800mm | 0.02mm | 500mm | 20mm | 20mm | 30mm |
| 0-1000mm | 0.02mm | 500mm | 20mm | 20mm | 30mm |
| 0-1500mm | 0.02mm | 800mm | 20mm | 20mm | 50mm |
| 0-2000mm | 0.02mm | 800mm | 20mm | 20mm | 50mm |
| 0-2500mm | 0.02mm | 700mm | 20mm | 20mm | 52mm |
| 0-3000mm | 0.02mm | 600mm | 20mm | 20mm | 52/77mm |
| 0-4000mm | 0.02mm | 500mm | 20mm | 20mm | 52/77mm |
| 0-5000mm | 0.02mm | 300mm | 20mm | 20mm | 52/77mm |
| 0-800mm | 0.05mm | 500mm | 20mm | 20mm | 30mm |
| 0-1000mm | 0.05mm | 500mm | 20mm | 20mm | 30mm |
| 0-1500mm | 0.05mm | 800mm | 20mm | 20mm | 50mm |
| 0-2000mm | 0.05mm | 800mm | 20mm | 20mm | 50mm |
| 0-2500mm | 0.05mm | 700mm | 20mm | 20mm | 52mm |
| 0-3000mm | 0.05mm | 600mm | 20mm | 20mm | 52/77mm |
| 0-4000mm | 0.05mm | 500mm | 20mm | 20mm | 52/77mm |
| 0-5000mm | 0.05mm | 300mm | 20mm | 20mm | 52/77mm |
| |
|||||
| 0-800mm / 32" | 0.02mm/0.001" | 500mm | 20mm | 20mm | 30mm |
| 0-1000mm / 40" | 0.02mm/0.001" | 500mm | 20mm | 20mm | 30mm |
| 0-1500mm / 60" | 0.02mm/0.001" | 800mm | 20mm | 20mm | 50mm |
| 0-2000mm / 80" | 0.02mm/0.001" | 800mm | 20mm | 20mm | 50mm |
| 0-2500mm / 100" | 0.02mm/0.001" | 700mm | 20mm | 20mm | 52mm |
| 0-3000mm / 120" | 0.02mm/0.001" | 600mm | 20mm | 20mm | 52/77mm |
| 0-800mm / 32" | 0.05mm / 1/128" | 500mm | 20mm | 20mm | 30mm |
| 0-1000mm / 40" | 0.05mm / 1/128" | 500mm | 20mm | 20mm | 30mm |
| 0-1500mm / 60" | 0.05mm / 1/128" | 800mm | 20mm | 20mm | 50mm |
| 0-2000mm / 80" | 0.05mm / 1/128" | 800mm | 20mm | 20mm | 50mm |
| 0-2500mm / 100" | 0.05mm / 1/128" | 700mm | 20mm | 20mm | 52mm |
| 0-3000mm / 120" | 0.05mm / 1/128" | 600mm | 20mm | 20mm | 52/77mm |
