Large Vernier Caliper

Our large vernier caliper is designed to facilitate the easy and quick measurement of larger outside and inside sizes.

We provide customized services to provide to the unique needs of our clients for large vernier calipers.

With fine adjustment.
With step measurement.
Made of stainless steel or carbon steel.

Large vernier calipers
20" vernier caliper,  24" vernier caliper,
32" vernier caliper,  40" vernier caliper,
60" vernier caliper,  80" vernier caliper,
100" vernier caliper,  120" vernier caliper.

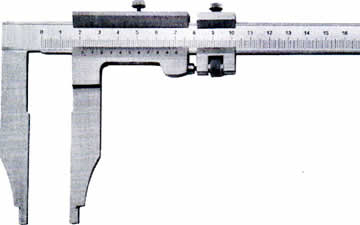

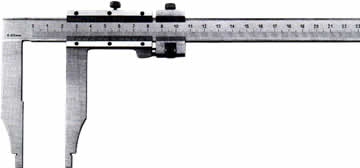

Large vernier calipers Type-B1 Type-B2
Range	Grad	A (mm)		B	C	D	Accuracy (mm)
	(mm)	Normal Jaw	Long Jaw	(mm)	(mm)	(mm)	Normal Jaw	Long Jaw
0-200mm	0.05	60	90	10	10	17	±0.05	±0.06
0-300mm	0.05	60	90	10	10	17	±0.05	±0.06
0-500mm	0.05	100 / 125	150	10	12	25	±0.07	±0.10
0-600mm	0.05	100 / 125	150	10	12	25	±0.08	±0.13
0-800mm	0.05	125 /150	200	20	18	32	±0.09	±0.14
0-1000mm	0.05	125 /150	200	20	18	32	±0.10	±0.14
0-1500mm	0.05	125 / 150	200	20 / 30	20	32	±0.16	±0.18
0-2000mm	0.05	150 / 200	300	20 / 30	20	52	±0.20	±0.26
0-2500mm	0.05	150 / 200	300	20 / 30	20	52	±0.24	±0.30
0-3000mm	0.05	150 / 200	300	20 / 30	20	52	±0.31	±0.35
0-4000mm	0.05	250 / 280		20	20	52
0-5000mm	0.05	250 / 280		20	20	52
0-6000mm	0.05	250 / 280		20	20	52

0-200mm	0.02	60	90	10	10	17	±0.03	±0.04
0-300mm	0.02	60	90	10	10	17	±0.04	±0.06
0-500mm	0.02	100 / 125	150	10	12	25	±0.05	±0.08
0-600mm	0.02	100 / 125	150	10	12	25	±0.05	±0.10
0-800mm	0.02	125 / 150	200	20	18	32	±0.06	±0.11
0-1000mm	0.02	125 / 150	200	20	18	32	±0.07	±0.11
0-1500mm	0.02	125 / 150	200	20 / 30	20	32	±0.11	±0.13
0-2000mm	0.02	150 / 200	300	20 / 30	20	52	±0.14	±0.20
0-2500mm	0.02	150 / 200	300	20 / 30	20	52	±0.22	±0.30
0-3000mm	0.02	150 / 200	300	20 / 30	20	52	±0.26	±0.35
0-4000mm	0.05	250 / 280		20	20	52
0-5000mm	0.05	250 / 280		20	20	52
0-6000mm	0.05	250 / 280		20	20	52

0-200mm / 8"	0.05 / 1/128"	60	90	10	10	17	±0.05	±0.06
0-300mm / 12"	0.05 / 1/128"	60	90	10	10	17	±0.05	±0.06
0-500mm / 20"	0.05 / 1/128"	100	150	10	12	25	±0.07	±0.10
0-600mm / 24"	0.05 / 1/128"	100	150	10	12	25	±0.08	±0.13
0-800mm / 32"	0.05 / 1/128"	125	200	20	18	32	±0.09	±0.14
0-1000mm / 40"	0.05 / 1/128"	125	200	20	18	32	±0.10	±0.14
0-1500mm / 60"	0.05 / 1/128"	125	200	20 / 30	20	32	±0.16	±0.18
0-2000mm / 80"	0.05 / 1/128"	150	300	20 / 30	20	52	±0.20	±0.26
0-2500mm / 100"	0.05 / 1/128"	150	300	20 / 30	20	52	±0.24	±0.30
0-3000mm / 120"	0.05 / 1/128"	150	300	20 / 30	20	52	±0.31	±0.35
0-4000mm	0.05	250 / 280		20	20	52		±0.35
0-5000mm	0.05	250 / 280		20	20	52
0-6000mm	0.05	250 / 280		20	20	52

0-200mm / 8"	0.02 / 0.001"	60	90	10	10	17	±0.03	±0.04
0-300mm / 12"	0.02 / 0.001"	60	90	10	10	17	±0.04	±0.06
0-500mm / 20"	0.02 / 0.001"	100 / 125	150	10	12	25	±0.05	±0.08
0-600mm / 24"	0.02 / 0.001"	100 / 125	150	10	12	25	±0.05	±0.10
0-800mm / 32"	0.02 / 0.001"	125 / 150	200	20	18	32	±0.06	±0.11
0-1000mm / 40"	0.02 / 0.001"	125 / 150	200	20	18	32	±0.07	±0.11
0-1500mm / 60"	0.02 / 0.001"	125 / 150	200	20 / 30	20	32	±0.11	±0.13
0-2000mm / 80"	0.02 / 0.001"	150 / 200	300	20 / 30	20	32	±0.14	±0.20
0-2500mm / 100"	0.02 / 0.001"	150 ./ 200	300	20 / 30	20	52	±0.22	±0.30
0-3000mm / 120"	0.02 / 0.001"	150 / 200	300	20 / 30	20	52	±0.26	±0.35
0-4000mm	0.05	250 / 280		20	20	52
0-5000mm	0.05	250 / 280		20	20	52
0-6000mm	0.05	250 / 280		20	20	52

With fine adjustment.
Made of stainless steel or carbon steel.

Large vernier calipers:
20" vernier caliper,  24" vernier caliper,
32" vernier caliper,  40" vernier caliper,
60" vernier caliper,  80" vernier caliper.

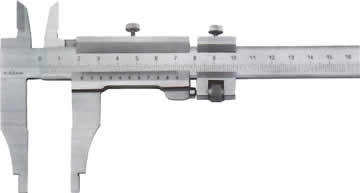

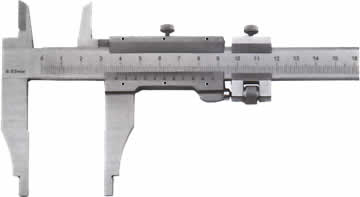

Large vernier caliper Type-C1 Type-C2
Range	Grad	A (mm)		B	C	D	H	Accuracy (mm)
	(mm)	Normal Jaw	Long Jaw	(mm)	(mm)	(mm)	(mm)	Normal Jaw	Long Jaw
0-200mm	0.05	60	90	10	10	17	22	±0.05	±0.06
0-300mm	0.05	60	90	10	10	17	22	±0.06	±0.10
0-500mm	0.05	100 / 125	150	10	12	25	40	±0.07	±0.10
0-600mm	0.05	100 / 125	150	10	12	25	40	±0.08	±0.13
0-800mm	0.05	125 / 150	200	20	18	32	47	±0.09	±0.14
0-1000mm	0.05	125 / 150	200	20	18	32	47	±0.10	±0.14
0-1500mm	0.05	125 / 150	200	20/30	20	32	47/54	±0.16	±0.18
0-2000mm	0.05	150 / 200	300	20/30	20	52	54	±0.20	±0.26
0-2500mm	0.05	150 / 200	300	20/30	20	52	73	±0.24	±0.30
0-3000mm	0.05	150 / 200	300	20/30	20	52	73	±0.31	±0.35

0-200mm	0.02	60	90	10	10	17	22	±0.03	±0.04
0-300mm	0.02	60	90	10	10	17	22	±0.04	±0.06
0-500mm	0.02	100 / 125	150	10	12	25	40	±0.05	±0.08
0-600mm	0.02	100 / 125	150	10	12	25	40	±0.05	±0.10
0-800mm	0.02	125 / 150	200	20	18	32	47	±0.06	±0.11
0-1000mm	0.02	125 / 150	200	20	18	32	47	±0.07	±0.11
0-1500mm	0.02	125 / 150	200	20/30	20	32	47/54	±0.11	±0.13
0-2000mm	0.02	150 / 200	300	20/30	20	52	54	±0.14	±0.20
0-2500mm	0.02	150 / 150	300	20/30	20	52	73	±0.22	±0.30
0-3000mm	0.02	150 / 200	300	20/30	20	52	73	±0.26	±0.35

0-200mm / 8"	0.05 / 1/128"	60	90	10	10	17	22	±0.05	±0.06
0-300mm / 12"	0.05 / 1/128"	60	90	10	10	17	22	±0.06	±0.10
0-500mm / 20"	0.05 / 1/128"	100/125	150	10	12	25	40	±0.07	±0.10
0-600mm / 24"	0.05 / 1/128"	100/125	150	10	12	25	40	±0.08	±0.13
0-800mm / 32"	0.05 / 1/128"	125/150	200	20	18	32	47	±0.09	±0.14
0-1000mm / 40"	0.05 / 1/128"	125/150	200	20	18	32	47	±0.10	±0.14
0-1500mm / 60"	0.05 / 1/128"	125/150	200	20/30	20	32	47/54	±0.16	±0.18
0-2000mm / 80"	0.05 / 1/128"	150/200	300	20/30	20	52	54	±0.20	±0.26
0-2500mm / 100"	0.05 / 1/128"	125/150	300	20/30	20	52	73	±0.24	±0.30
0-3000mm / 120"	0.05 / 1/128"	150/200	300	20/30	20	52	73	±0.31	±0.35

0-200mm / 8"	0.02 / 0.001"	60	90	10	10	17	22	±0.03	±0.04
0-300mm / 12"	0.02 / 0.001"	60	90	10	10	17	22	±0.04	±0.06
0-500mm / 20"	0.02 / 0.001"	100/125	150	10	12	25	40	±0.05	±0.08
0-600mm / 24"	0.02 / 0.001"	100/125	150	10	12	25	40	±0.05	±0.10
0-800mm / 32"	0.02 / 0.001"	125/150	200	20	18	32	47	±0.06	±0.11
0-1000mm / 40"	0.02 / 0.001"	125/150	200	20	18	32	47	±0.07	±0.11
0-1500mm / 60"	0.02 / 0.001"	125/150	200	20/30	20	32	47/54	±0.11	±0.13
0-2000mm / 80"	0.02 / 0.001"	150/200	300	20/30	20	52	54	±0.14	±0.20
0-2500mm / 100"	0.02 / 0.001"	150/200	300	20/30	20	52	73	±0.22	±0.30
0-3000mm / 120"	0.02 / 0.001"	150/200	300	20/30	20	52	73	±0.26	±0.35
