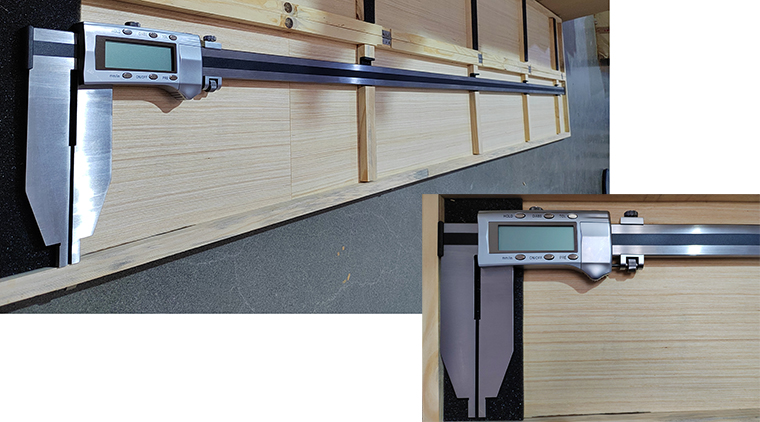

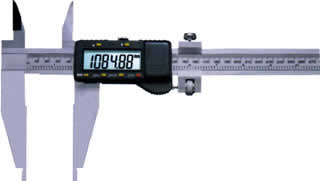

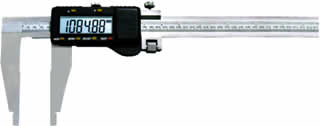

Large digital calipers: 20″ digital caliper, 24″ digital caliper, 32″ digital caliper, 40″ digital caliper, 60″ digital caliper, 80″ digital caliper, 100″ digital caliper, 120″ digital caliper, 140″ digital caliper, 160″ digital caliper.

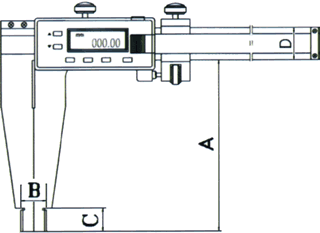

| Range (mm/inch) | Resolution (mm/inch) | A Normal Jaw (mm) | A Long Jaw (mm) | B (mm) | C (mm) | D (mm) | Accuracy Normal Jaw | Accuracy Long Jaw |
|---|---|---|---|---|---|---|---|---|
| 0-500/20" | 0.01 / 0.0005" | 100 / 125 | 150 | 10 | 12 | 25 | ±0.05 | ±0.08 |
| 0-600/24" | 0.01 / 0.0005" | 100 / 125 | 150 | 10 | 12 | 25 | ±0.07 | ±0.10 |
| 0-800/32" | 0.01 / 0.0005" | 125 / 150 | 200 | 20 | 18 | 32 | ±0.07 | ±0.10 |
| 0-1000/40" | 0.01 / 0.0005" | 125 / 150 | 200 | 20 | 20 | 32 | ±0.07 | ±0.10 |
| 0-1500/60" | 0.01 / 0.0005" | 125 / 150 | 200 | 20 | 20 | 48 | ±0.10 | ±0.15 |
| 0-2000/80" | 0.01 / 0.0005" | 150 | 200 / 300 | 20 | 20 | 48 | ±0.14 | ±0.20 |
| 0-2500/100" | 0.01 / 0.0005" | 150 | 200 / 300 | 20 | 20 | 48 | ±0.17 | ±0.25 |
| 0-3000/120" | 0.01 / 0.0005" | 200 | 300 | 20 | 20 | 52 | ±0.20 | ±0.30 |
| 0-3500/140" | 0.01 / 0.0005" | 200 | 300 | 20 | 20 | 52 | ±0.30 | ±0.40 |
| 0-4000/160" | 0.01 / 0.0005" | 200 | 300 | 40 | 35 | 52 | ±0.34 | ±0.45 |
Large digital calipers: 20″ digital caliper, 24″ digital caliper, 32″ digital caliper, 40″ digital caliper, 60″ digital caliper, 80″ digital caliper, 100″ digital caliper, 120″ digital caliper, 140″ digital caliper, 160″ digital caliper.

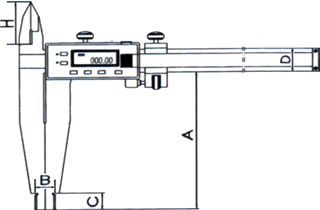

| Range (mm/inch) | Resolution (mm/inch) | A (mm) Normal jaw | A (mm) Long jaw | B (mm) | C (mm) | D (mm) | H (mm) | Accuracy (mm) Normal jaw | Accuracy (mm) Long jaw |
|---|---|---|---|---|---|---|---|---|---|
| 0-500/20" | 0.01 / 0.0005" | 100 / 125 | 150 | 10 | 12 | 25 | 40 | ±0.05 | ±0.08 |
| 0-600/24" | 0.01 / 0.0005" | 100 / 125 | 150 | 10 | 12 | 25 | 40 | ±0.07 | ±0.10 |
| 0-800/32" | 0.01 / 0.0005" | 125 / 150 | 200 | 20 | 18 | 32 | 47 | ±0.07 | ±0.10 |
| 0-1000/40" | 0.01 / 0.0005" | 125 / 150 | 200 | 20 | 20 | 41.5 | 47 | ±0.07 | ±0.10 |
| 0-1500/60" | 0.01 / 0.0005" | 125 / 150 | 200 | 20 | 20 | 41.5 / 52 | 47 / 54.5 | ±0.10 | ±0.15 |
| 0-2000/80" | 0.01 / 0.0005" | 150 | 200 / 300 | 20 | 20 | 41.5 / 52 | 54.5 | ±0.14 | ±0.20 |
| 0-2500/100" | 0.01 / 0.0005" | 150 | 200 / 300 | 20 | 20 | 52 | 54.5 | ±0.17 | ±0.25 |
| 0-3000/120" | 0.01 / 0.0005" | 200 | 300 | 20 | 20 | 52 | 54.5 | ±0.20 | ±0.30 |
| 0-3500/140" | 0.01 / 0.0005" | 200 | 300 | 20 | 20 | 52 | 54.5 | ±0.30 | ±0.40 |
| 0-4000/160" | 0.01 / 0.0005" | 200 | 300 | 40 | 35 | 52 | 54.5 | ±0.34 | ±0.45 |
